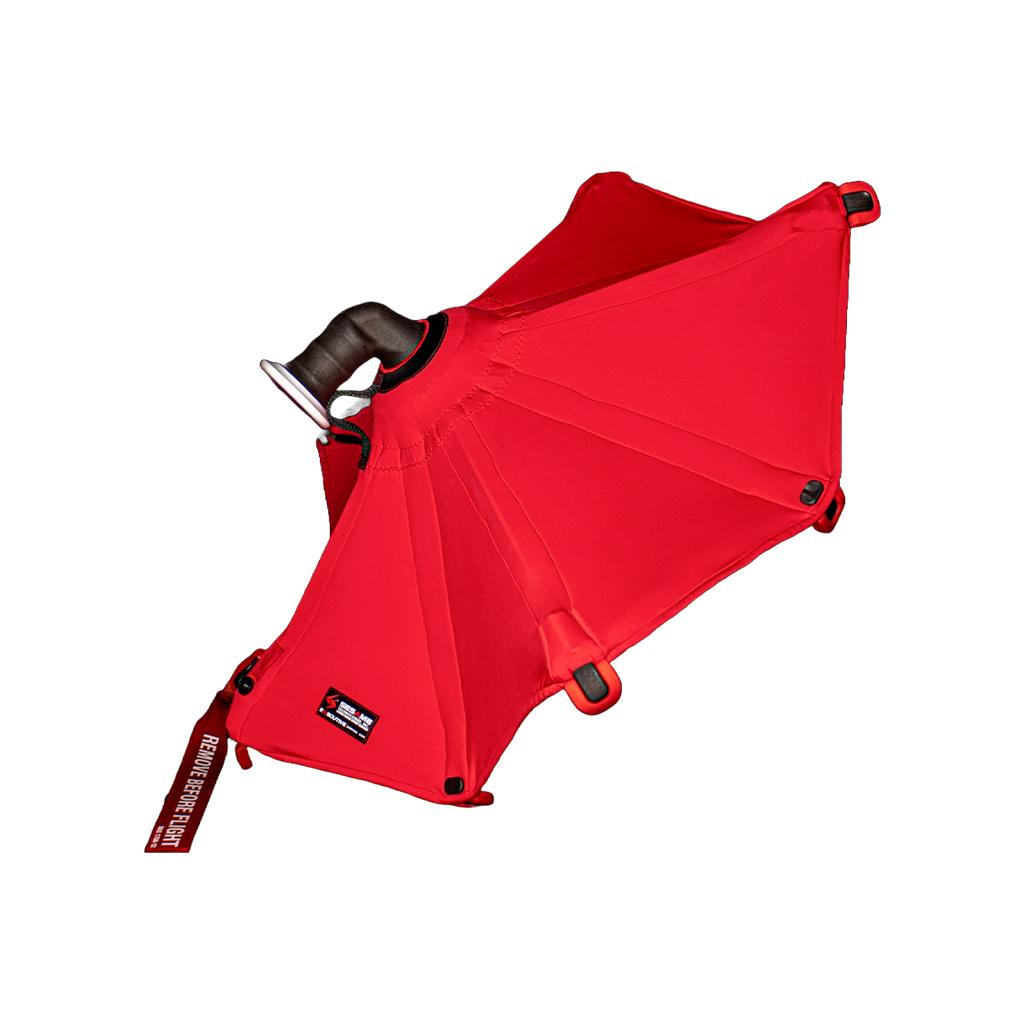

Sesame DES-EX-VI Diamond Engine Shield - Vert. Intake - Global 6500 / BR710D5-21 Pearl 15 - S037000
The Sesame DES-EX-VI Diamond Engine Shield EX - Vertical Intake - Global 6500 / BR710D5-21 Pearl 15 – S037000 is a vertical intake engine protection shield engineered to safeguard jet engine nacelles from FOD, impact, and environmental exposure. Designed for aircraft that support vertical installation, this system enables safe, one-person deployment from ground level using the IP100-EX installation pole.
Crafted from advanced aerospace-grade materials including carbon fiber, high-temperature silicones, 316L stainless steel, and a rugged synthetic outer layer, the Diamond Engine Shield EX delivers unmatched performance and reliability. The self-centering, silicone-cushioned interface gently rests against the engine nacelle without requiring fasteners, reducing potential for wear and abrasion.
The glow-in-the-dark front bell mouth pad enhances targeting accuracy in low light and doubles as a protective contact buffer. The exclusive locking head mechanism ensures the shield remains attached to the installation pole until deliberate detachment, protecting against accidental release.
Key Features
- Vertical nacelle coverage for upper or wing-mounted jet engines
- Carbon fiber body with high-temp silicone cushioning pads
- Glow-in-the-dark bell mouth pad for nighttime alignment
- Collapsible design secured with integrated cinching strap
- Includes micro installation tool for rapid deployment
- Tool-free installation via IP100-EX pole and twist-lock head
- Pre-fitted for Sesame’s Safety Lanyard System
- NAS1756 “REMOVE BEFORE FLIGHT” streamer with part ID
- Weather tested: wind, water, impact
- Manufactured under ISO 9001 and AS9100D
Installation Instructions
- Twist to lock the IP100-EX installation pole into the bell mouth handle of the shield.
- Hold the bell mouth and gently twist the pole to expand and open the shield into position.
- Move directly under the engine nacelle opening and place the base of the pole on the ground.
- Extend the telescoping pole sections until the shield is level with the engine opening.
- Align the high-temp silicone feet on either side of the nacelle and apply light pressure.
- Twist the pole to fasten the shield into place on the engine intake.
- To release, push slightly, twist, and pull back to disengage the pole from the locking head.
- To remove the shield, repeat the process in reverse: reconnect the pole, unlock, lower the shield, collapse and stow.
The S037000 provides precision-fit vertical engine inlet protection and enables fast, secure installation with minimal ground crew requirements.
| General Information | |
|---|---|
| Part # | S037000 |
| Manufacturer | Sesame Technologies |
| Shipping Information | |
|---|---|
| Schedule B | 9014900000 |
| ECCN | EAR99 |
Customers also viewed
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Bombardier | Global 6500 |
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The Diamond Engine Shield EX – Vertical Intake is specifically designed for super-midsize and large jets that have sufficient space between the trailing edge of the wings and the leading edge of aft-mounted engines. This includes aircraft such as the Gulfstream G500, Bombardier Challenger 350, and Dassault Falcon 2000, among others.
Yes, the Diamond Engine Shield EX – Vertical Intake is engineered for single-person installation from ground level. Using the IPEX Installation Pole, a technician can safely deploy the shield without the need for ladders or additional personnel, enhancing safety and efficiency during ground operations.
The Diamond Engine Shield EX utilizes high-temperature silicone cushioning pads that auto-center on the leading edge of the engine. This design allows the shield to secure to the engine nacelle without the need for fasteners, reducing the potential for wear and abrasion.
Yes, the front bell mouth portion of the shield is equipped with a white glow-in-the-dark silicone pad. This feature aids in locating the engagement point during nighttime operations and also serves as a protective layer in case of accidental mishandling.
