Sesame DES-EX-VE Diamond Engine Shield - Vert. Exhaus - GLOBAL 6500 / BR710D5-21 - S039000

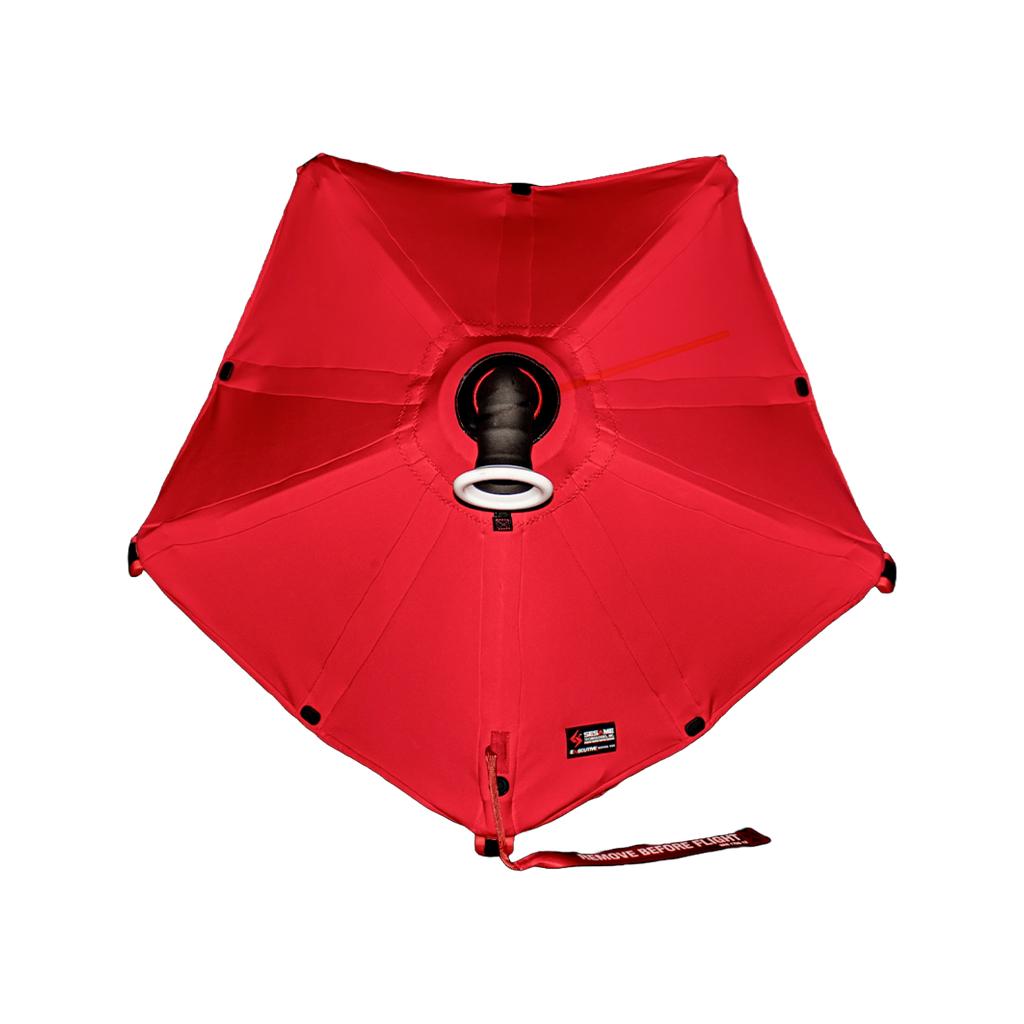

The Sesame DES-EX-VE Diamond Engine Shield EX - Vertical Exhaust - GLOBAL 6500 / BR710D5-21 PEARL 15 – S039000 is a vertical exhaust engine protection solution engineered for single-person operation using the IP100-EX installation pole. Specifically crafted to protect upper or tail-mounted exhaust ports, this barrier defends against FOD, debris, heat exposure, and environmental damage during ground operations.
Its advanced design incorporates carbon fiber, high-temperature silicone, 316L stainless steel, and a resilient synthetic wrap to deliver a durable, high-performance shield. The front bell mouth section features a glow-in-the-dark silicone contact pad for improved low-light handling, and the auto-centering feet offer a secure, fastener-free fit to the exhaust outlet.
The patented locking head ensures the cover remains securely attached to the IP100-EX pole until deliberate release. Once in place, the Diamond Engine Shield EX protects aircraft exhaust structures while remaining collapsible for compact storage.
Key Features
- Engineered for vertical exhaust configurations on select jet aircraft
- Carbon fiber composite construction with silicone-cushioned interface
- Collapsible and cinch-strapped for easy storage
- Glow-in-the-dark bell mouth for safe nighttime alignment
- Tool-free twist-lock installation via IP100-EX pole
- Includes micro installation tool
- Fitted with attachment point for Sesame Safety Lanyard System
- Outfitted with NAS1756 “REMOVE BEFORE FLIGHT” streamer
- Weather and impact tested
- ISO 9001 and AS9100D certified manufacturing
Installation Instructions
- Twist to securely lock the IP100-EX installation pole into the bell mouth of the exhaust shield.
- Hold the bell mouth and twist the pole to open the shield for installation.
- Move directly beneath the aircraft’s exhaust port and place the base of the pole on the ground.
- Extend the telescoping pole sections until the shield aligns with the exhaust outlet height.
- Center the rubber feet on either side of the exhaust opening, then apply gentle upward pressure.
- Twist the pole to fasten the shield securely to the engine’s exhaust surface.
- Push, twist, and pull back to release the locking mechanism and detach the pole.
- To remove, reverse the process: reattach the pole, unlock, withdraw the shield, collapse and stow.
For reliable, repeatable protection in any operational setting, the S039000 exhaust barrier helps crews minimize turnaround time while maximizing exhaust system safety and compliance.
| General Information | |
|---|---|
| Part # | S039000 |
| Manufacturer | Sesame Technologies |
| Shipping Information | |
|---|---|
| Schedule B | 9014900000 |
| ECCN | EAR99 |
Customers also viewed
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Bombardier | Global 6500 |
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The Diamond Engine Shield EX – Vertical Exhaust is designed for single-person installation from ground level using the IPEX Installation Pole, which is available in various lengths ranging from 45" to 181". The process involves locking the pole into the shield's bell mouth, extending the telescoping sections to align with the exhaust outlet, and securing the shield in place with a twist-lock mechanism. The glow-in-the-dark silicone pad aids in low-light alignment, ensuring safe and efficient installation without the need for ladders or additional personnel.
The Diamond Engine Shield EX – Vertical Exhaust is specifically designed for super-midsize and large jets with vertical exhaust configurations. Compatibility varies by aircraft model. Specific versions are available for the Gulfstream G700, Bombardier Global 6000, and Embraer Praetor 600. It's essential to verify compatibility with your aircraft's specifications before purchase.
Yes, the shield has been rigorously tested for wind, water, and impact resistance. Its robust construction ensures reliable performance in various environmental conditions, safeguarding the engine exhaust from potential damage during ground operations.
By providing a quick, single-person installation process and robust protection against environmental factors, the Diamond Engine Shield EX reduces the time and manpower required for engine protection during ground operations. This efficiency minimizes aircraft downtime and contributes to more streamlined maintenance procedures.
