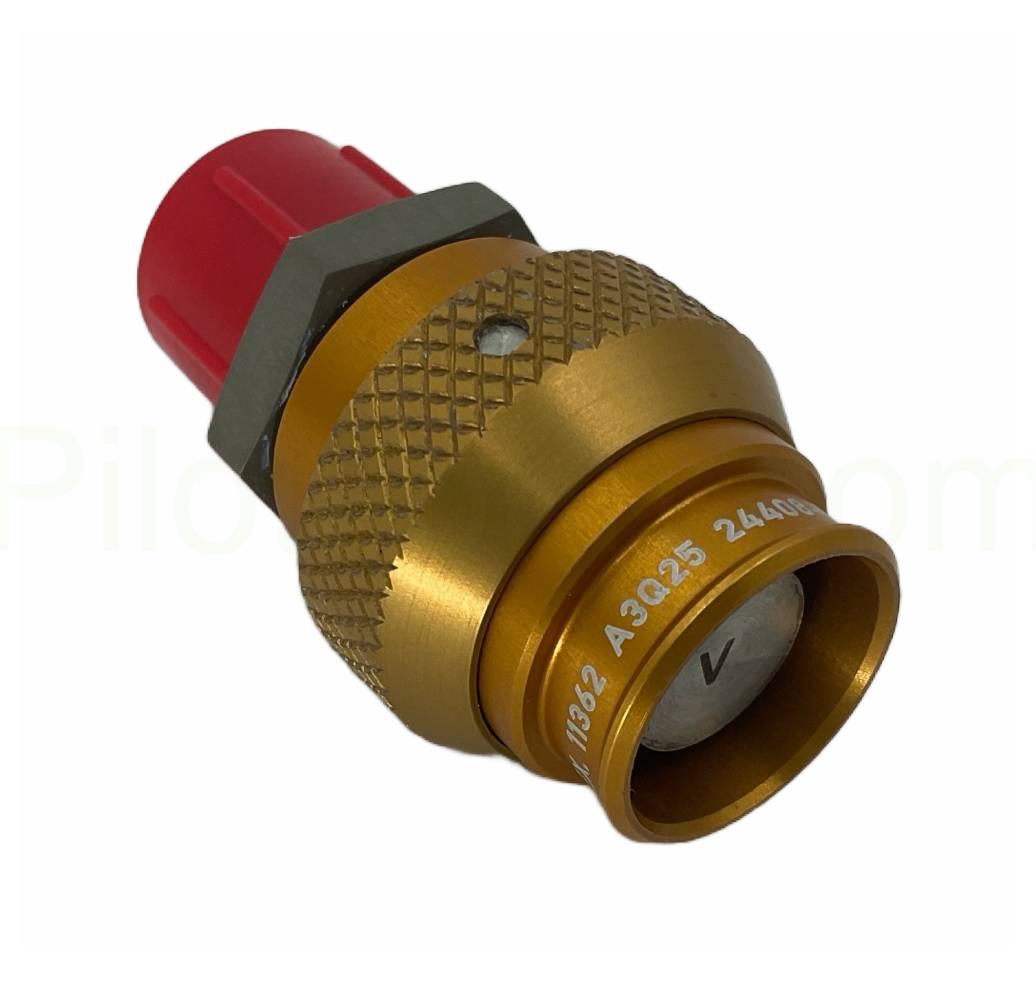

Parker Stratoflex 24408-08A-Y15M - Slide-Lok 1/2in

The Parker Stratoflex 24408-08A-Y15M is a stainless steel Slide-Lok™ push-to-connect, pull-to-disconnect Slide-Lok quick-disconnect coupling in the 244xx series. At 1/2" tube size with a standard end fitting and Y15M seal package approved for hydraulic, PAO, and Skydrol® fluid service, this coupling delivers the leak-minimizing, self-sealing performance that has made the Slide-Lok the aerospace standard for hydraulic ground servicing, qualified to SAE AS1709 and rated to 3,000 psig operating pressure.

Key Features

• Knurled sleeve snaps forward to indicate full coupling and locked position, tactile and visual confirmation of correct engagement
• Self-sealing valving on both halves, max fluid loss 0.010 cc, max air inclusion 0.010 cc at 1/2"
• Stainless steel construction for corrosion resistance and aircraft electrical bonding compatibility
• standard end fitting, compatible with standard aerospace plumbing interfaces
• Y15M seal package, approved for hydraulic, PAO, and Skydrol® fluid service
• Rated flow: 4.80 GPM (18.2 lpm) at 1/2" size
• Operating pressure: 3,000 psig at 1/2"; series range vacuum to 5,000 psig
• Qualified to SAE AS1709, the baseline specification for aerospace quick-disconnect couplings
• Mating nipple: 5108 (1/2" S/S Nipple)
• Accessories: protective dust caps, redundant seal pressure caps, thermal relief valves, keyed indexing, remote lanyard release

Applications

Parker Stratoflex Slide-Lok couplings serve on the F-15, F-16, F/A-18, F-22, C-17, Lockheed C-130, and Patriot missile launcher, as well as Formula One racing team hydraulic systems. The 24408-08A-Y15M is ideal for cooling, fuel, hydraulic, and pneumatic ground servicing where single-hand operation, minimal fluid loss, and a compact envelope are required. For high-vibration engine, landing gear, or brake system applications, Parker Aerospace recommends evaluating the Thread-Lok series instead. Reference Parker Stratoflex Catalog 106-SLIDE and applicable part drawing for dimensional data and full part number definition.
