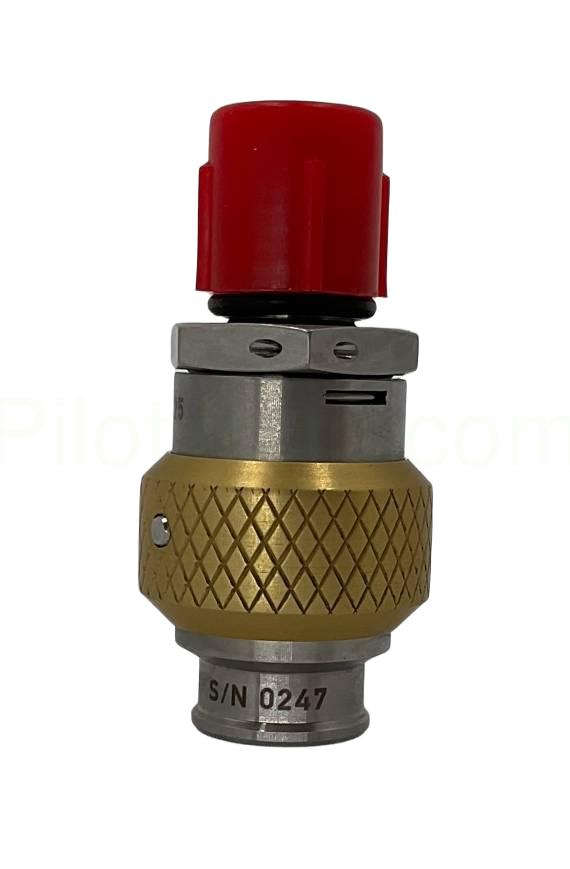

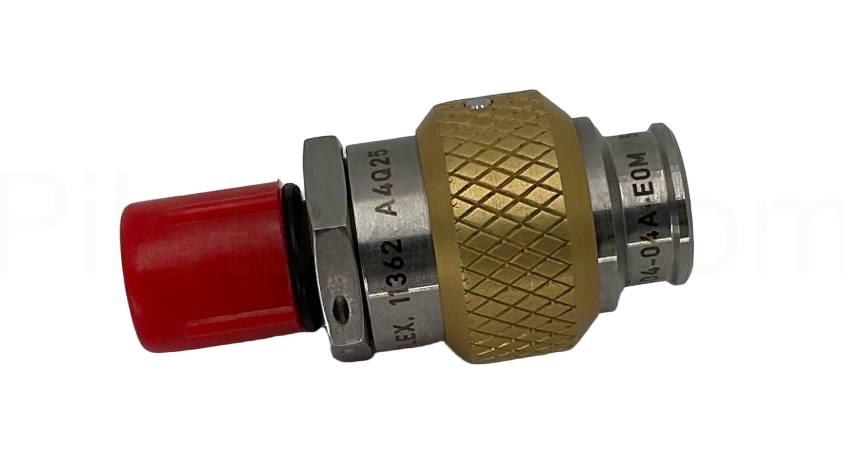

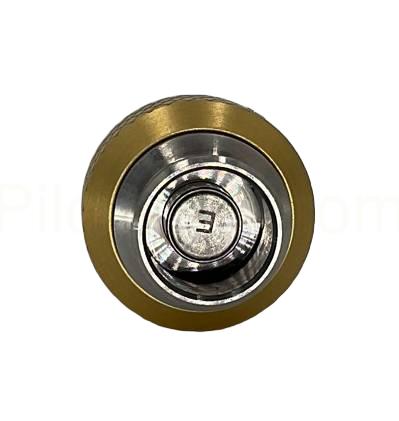

Parker Stratoflex 25404-04A-E0M - Slide-Lok Quick-Disconnect Coupling - EGW, PGW, Pneumatic

The Parker 25404-04A-E0M Quick-Disconnect Coupling offers a reliable and efficient connection solution for high-pressure fluid systems. Designed for EGW, PGW, and pneumatic applications, this coupling features stainless steel construction for durability and corrosion resistance, ensuring long-lasting performance even in demanding environments. The self-sealing valving minimizes fluid spillage and air inclusion during operation, providing clean, secure connections every time.

Key Features

• High Pressure Capability: With a maximum operating pressure of 4000 psig and burst pressure of 10,000 psig, the 25404-04A-E0M coupling is ideal for high-pressure systems.
• Efficient Fluid Handling: Minimizes fluid spillage and air inclusion with its self-sealing valving, ensuring efficient operation with minimal downtime.
• Compact Design: The 1/4 inch inlet and 1.55 inch overall length make it suitable for space-constrained applications while maintaining high performance.
• Corrosion-Resistant Stainless Steel: Provides durability and resistance to harsh environmental conditions for long-lasting reliability.
• One-Hand Operation: The coupling is designed for quick and easy connection and disconnection with just one hand, improving operational efficiency.

Applications

• Aerospace systems (commercial and military)
• EGW, PGW fluid systems
• Pneumatic applications
• High-pressure fluid circuits

Specifications

• Part Number: 25404-04A-E0M
• Line Size (Inlet): 1/4 inch
• Body Material: Stainless Steel
• Fluid Type: EGW, PGW, Pneumatic
• Maximum Operating Pressure: 4000 psig
• Minimum Operating Pressure: -5 psig
• Proof Pressure: 6000 psig
• Burst Pressure: 10,000 psig
• Maximum Fluid Temperature: 250°F
• Minimum Fluid Temperature: -65°F
• Maximum Spill Volume at Disconnection: 0.002 cc
• Maximum Air Inclusion: 0.005 cc
• Maximum Pressure to Connect: 400 psig
• Overall Length: 1.55 inches (hex to hex)
• Outside Diameter: 0.88 inches
• Fitting Type: SAE AS4395E04

Why Choose Parker 25404-04A-E0M?

• Durable Construction: Stainless steel ensures superior strength, corrosion resistance, and long-lasting performance.
• Efficient Operation: Low fluid spillage and air inclusion reduce waste and improve system reliability.
• Compact and Reliable: The small size makes it perfect for installations where space is limited, without sacrificing performance.
• Versatile Compatibility: Works with a variety of fluid types, offering flexibility in a wide range of applications.
