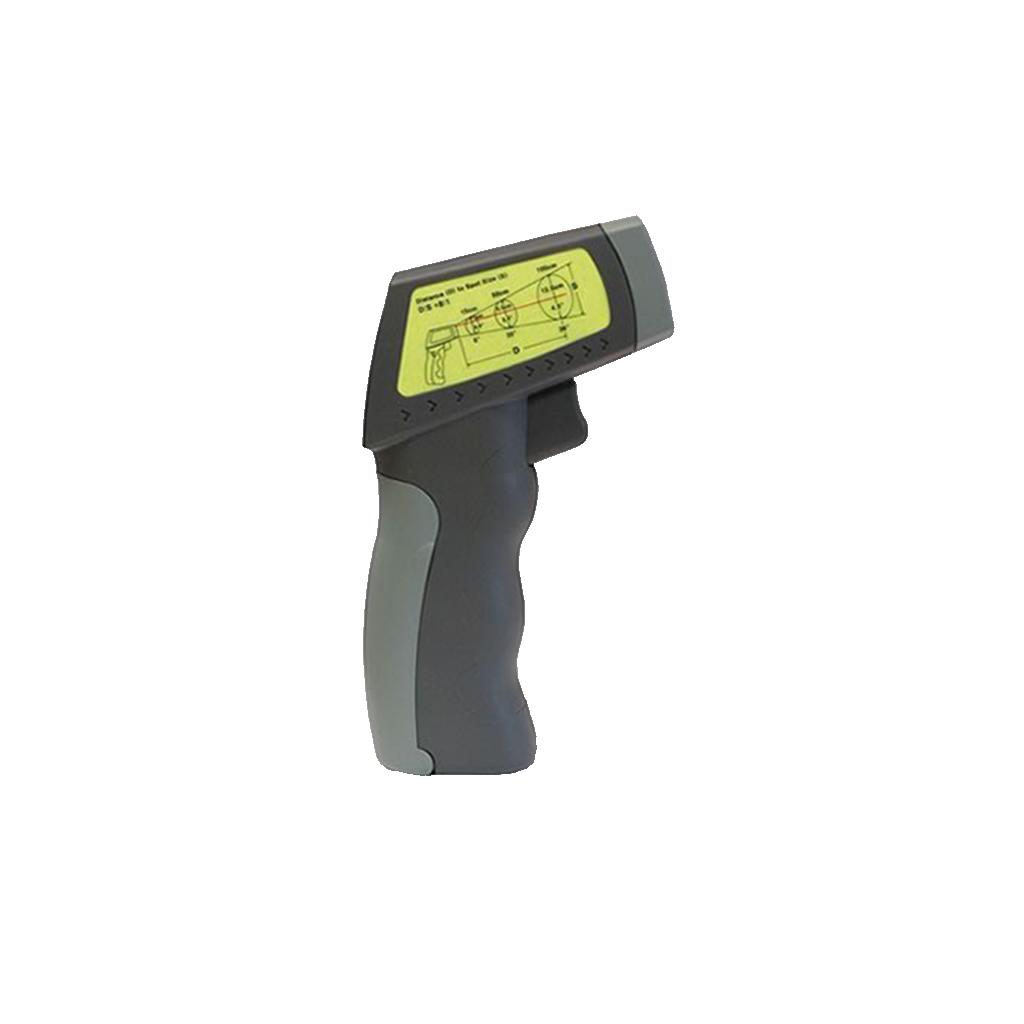

The Test Products International (TPI) 380 Non-Contact Infrared Thermometer provides accurate temperature measurements of hard-to-reach, sensitive, or moving targets without physical contact. Its user-friendly design and advanced features make it an invaluable tool for various applications.
The 380 Infrared Thermometer offers reliable and precise temperature readings, empowering users to monitor and control temperatures effectively.
Key Features
- Wide Temperature Range: Accurately measure temperatures from -4°F to 572°F (-20°C to 300°C), covering a broad spectrum of applications.
- Non-Contact Measurement: Safely measure temperatures of hot, hazardous, or moving objects without physical contact.
- Precision Readings: Achieve repeatable measurements with 0.1° resolution for accurate data analysis.
- User-Friendly Operation: Simple one-button operation and clear LCD display for effortless use.
- Versatile Functionality: Select Fahrenheit or Celsius units to suit your preferences.
- Distance-to-Spot Ratio: Maintain accurate measurements by understanding the relationship between distance and target size (8:1 ratio).
Specifications
- Non-Contact (IR) Range: -4°F to 572°F (-20°C to 300°C)
- Accuracy: +/-2% of reading or +/-3.5°F, whichever is greater
- Distance-to-Target Ratio: 9.5:1
- Response Time: 500mS
- Spectral Response: 7 to 14 um
- Emissivity: 0.95 Fixed
- Display Resolution: 0.1° / 1° (Automatic)
- Backlight Display: Yes
- Operating Temperature: 32°F to 120°F (0°C to 50°C)
- Battery Type: 9V
| General Information | |
|---|---|
| Part # | 380 |
| Manufacturer | Test Products International |
| Shipping Information | |
|---|---|
| Product Weight | 0.7 lbs. |
| Product Dimensions | 10 x 8 x 6 in. |
| Schedule B | 9025198080 |
| Specifications | |
|---|---|
| Accuracy | +/-2% of reading or +/-3.5°F whichever is greater |
| Backlight Display | Yes |
| Battery Type | 9V |
| Display Resolution | 0.1° / 1° (Automatic) |
| Distance to Target Ratio | 9.5:1 |
| Emissivity | 0.95 Fixed |
| Laser Sight | No |
| Min/Max Record | No |
| Non-Contact (IR) Range | -4°F to 572°F, -20°C to 300°C |
| Operating Temperature | 32°F to 120°F (0°C to 50°C) |
| Response Time | 500mS |
| Spectral Response | 7 to 14um |
Customers also viewed
AIRCRAFT COMPATIBILITY
This item is for use on all aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The laser spot needs to be showing inside the target area. An 8:1 distance-to-spot ratio means you are measuring a 1" diameter area at a distance of 8".
Distance is unlimited. The size of the target area sets the limit on distance for accurate measurements. For example, if the area you wish to measure is 1 foot in diameter, then you will need to be within 8 feet to record an accurate temperature.
Approximately one-half inch in diameter.
Emissivity is the ratio of an object's infrared emission compared to a theoretical black body considered 1. Emissivity is always less than 1.
Adjustable emissivity allows your non-contact thermometer to be adjusted to the surface you are checking to ensure more accurate readings.
