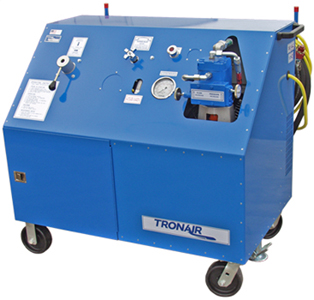

Tronair 5130 / 5131 Skydrol Hydraulic Power Unit (HPU)
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
This Tronair Hydraulic Power Unit (Series 5130 / 5131) uses Skydrol or Hyjet fluid with an output of 6 gallons per minute. Quick Disconnects are available as an option for each particular aircraft (if needed).
Standard Features
- 6 gpm (22.7 lpm) pressure compensated pump with adjustable flow and pressure controls
- Certified pressure gauge
- 0-10 gpm (0-38 lpm) dual scale flowmeter
- 2.4 gpm (9 lpm) flow at rated pressure
- Bypass valve
- Reservoir selector valve
- 2-micron absolute non-bypass pressure filter (Beta rating > 2,000 based on ISO 4572)
- #8 pressure and #16 return hoses (PE), or #12 return hose (MB), 15-ft. (4.5 m) long with 37° JIC swivel connectors
- Standard 50-ft. (15.2 m) input power cord
- Heavy-duty, 3-phase motor
- Heavy-duty starter with overload protection and external manual reset button
- Sturdy welded steel frame with 16 gauge sheet metal cabinet
- Fluid sample valve
- Operating instructions are located on the instrument panel
- Two (2) fixed and two (2) swivel casters for easy maneuvering
- Stainless steel reservoir – 13-gallon (49 liters) capacity
- Heat exchanger with electric fan
- Illuminated On/Off switch
- Front access door panel for ease of maintenance
- Available Options: A, C, D, F, K, M, T, W
- Durable powder-coat finish (Tronair Blue)
Specifications
- Maximum Operating Pressure: 3,000 psi (207 bar)
- Pressure Gauge Maximum: 5,000 psi (345 bar)
- Fluid: Skydrol or HyJet
- Motor: 5 HP (3.7 kW)
- Dimensions: 33" W x 44" H x 45" L (84 x 111 x 114 cm)
- Weight: 501 lbs. (227 kg)
| Alternate Models | |
|---|---|
| 05-3005-3400 | Previous Model Number |
| 5130 | Base Model - Non-CE Compliant |
| 51301AH0T | Citation HPU - Setup for 208V 3 PH 60 HZ, KHC-1010 Couplers, Return back pressure w/ sight gauge |
| 51301AH1 | Single System, KHC-1010 Aircraft Couplers, 220-240V 3 PH 60 HZ Input Voltage |
| 51301AH1T | Citation HPU - Setup for 220-240V 3 PH 60 HZ, KHC-1010 Couplers, Return back pressure w/ sight gauge |
| 51301AH7T | 5 - HPU 1 - 5 GPM / 3000 PSI / 5 HP 3 - Skydrol 0 - Standard 1 - Tronair Blue AH - KHC-1010 Couplers Included 7 - 380-400V 3 PH 50 HZ Input Voltage Required / 50' AC Input Cable Included T - Return Back Pressure w/Sight Gauge |
| 51301AH8T | Citation HPU - Setup for 415V 3 PH 50 HZ Voltage |
| 51301ZZ1 | No Aircraft Couplers, 220-240V 3 PH 60 HZ Input Voltage |
| 51301ZZ1AT | Single System, No Aircraft Couplers, 220-240V 3 PH 60 HZ, 25 ft Hoses, Return back pressure w/ sight gauge |
| 51301ZZ7 | No Aircraft Couplers, 380V-400V 3 PH 50 HZ Input Voltage |
| 51302AH7T | 5 - HPU 1 - 5 GPM / 3000 PSI / 5 HP 3 - Skydrol 0 - Standard 2 - Safety Yellow AH - KHC-1010 Couplers Included 7 - 380-400V 3 PH 50 HZ Input Voltage Required / 50' AC Input Cable Included T - Return Back Pressure w/Sight Gauge Standard Features: Single System 15 ft Hoses |
| 5131 | Base Model - CE Compliant |
| General Information | |
|---|---|
| Part # | 5130 |
| Manufacturer | Tronair |
| Accessories/Kits/Adapters | |
|---|---|
| H-1339 | Protective Cover |
| K-3590 | Unit self servicing kit (MB) |
| K-3591 | Unit self servicing kit (PE) |
Customers also viewed
Skydrol/HyJet HPU – 6 gpm, 1,800 psi, 3 HP
10 GPM (60 Hz), 8.3 GPM (50 Hz), 750 to 3000 PSI, 15 HP
10 GPM, 3000 PSI, 15 HP
15 GPM, 3500 PSI, 25 HP
Transponder, ADS-B, DME
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| ATR | 42 , 72 |
| Cessna | Bravo , Citation 560 XL , Citation 560 XLS , Citation I 500 , Citation I/SP 501 , Citation II 550 , Citation SII , Citation V |
| Fairchild/Dornier | Dornier DO328 |
| Gulfstream | I |
| IAI | Westwind 1 , Westwind 2 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
Question:
Can we put a 100' cable on this unit?
Answer:
No. The engineers at Tronair have confirmed that the 5130 HPU will not have 100' cords available as an option.
Asked May 14, 2024
Question:
Is this unit CE marked?
Answer:
No, the 5130 HPU is not CE marked.
Asked May 14, 2024
Question:
What voltages can this unit be set for?
Answer:
Tronair 5130 Series HPUs can be set for 200V to 460V 3-phase input voltage at either 50 or 60 Hz. Since these units are custom-built, this information is required upfront to complete them.
Asked August 9, 2024
Question:
What are the replacement hoses for this unit?
Answer:
The pressure hose for the 5130 Series HPU is TF-1041-09*180, and the return hose is TF-1043-01*180.
Asked August 9, 2024
Question:
What are the replacement filters for this unit?
Answer:
Question:
What features come standard on this unit?
Answer:
Standard features for the Tronair XXXX Series HPU include:
- 15' Hoses
- Single System
- 50' Input Cable (Only)
- 10-Gallon Reservoir
Asked August 13, 2024
Question:
What options are available to add to this unit?
Answer:
Available options for the Tronair 5130 Series HPU include:
- 25' Hoses (Option A)
- Split System (Option C)
- Split System with Crossover Check (Option D)
- Hourmeter (Option F – 50 and 60 Hz)
- Pyrometer (Option K)
- Hand Pump (Option M)
- Return Back-Pressure with Sight Gauge (Option T – Skydrol Only)
- Return Filter (Option W)
Asked August 13, 2024
