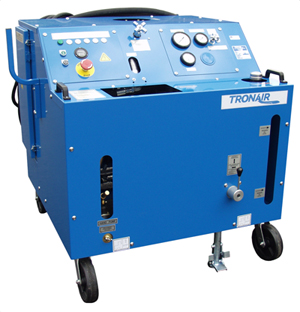

Tronair 5230 / 5231 (CE) Skydrol Hydraulic Power Unit
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

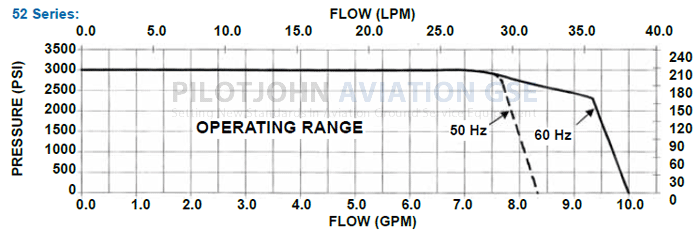

This Tronair Hydraulic Power Unit (Series 5230 / 5231 (CE)) uses Skydrol or Hyjet fluid with an output of 10 gallons per minute on 60Hz and 8.3 gallons per minute on 50Hz. Output pressure is from 750 to 3000 psi (max). Quick Disconnects are available as an option for each particular aircraft (if needed). The CE compliant version is also available (please specify in the comments).
Standard Features:
- Adjustable working pressure
- 3 phase, electric motor available in 10 voltages (50 or 60 Hz)
- Adjustable pressure compensated, variable voltage, piston pump
- 30 gal (114 l) stainless steel reservoir with desiccant air filtration
- Large oil cooler with 3 phase electric fan (16,000 btu/hr cooling capacity)
- High efficiency, non-bypassing pressure filter with 2-micron absolute, Microglass III element (Beta rating > 1,000 based on ISO 4572)
- Large capacity return filter with 5 micron absolute, Microglass III element (Beta rating > 200 based on ISO 4572)
- Easy access fluid sampling valve (meets ANSI T2.24.1-1991)
- 1-15 gpm (4-56 lpm) dual scale flow meter
- Dual scale pressure gauge
- Standard 25 ft (7.62 m) pressure and return hoses
- Standard 15 ft (4.57 m) pressure and return hoses - 52 Series ONLY
- Standard 50 ft (15.24 m) input power cord without input plug
- Finish: Durable Powder Coat Tronair Blue
- Length: 54 in (137 cm)
- Width: 51 in (130 cm)
- Height: 50 in (127 cm)
| Alternate Models | |
|---|---|
| 52311CM9 | CE Compliant, 440-480V 3 PH 50 HZ Input Voltage, KHC-3561 Aircraft Couplers |
| 05-7023-3400 | Alternative Model Number |
| 52300BH0 | 5 - HPU 2 - 10 GPM / 3000 PSI / 15 HP 3 - Skydrol 0 - Standard (Not CE Compliant) 0 - Desert Sand BH - KHC-1342 0 - 208V 3 PH 60 HZ Input Voltage Required / Serviceable 50' AC Input Cable Included Standard Features: 25 ft Hoses |
| 52301BY3 | 440-480V 3 PH 60 HZ Input Voltage, KHC-2628 Aircraft Couplers (ERJ140/145, Legacy) |
| 5231 | CE Compliant Version |
| 52311AHQAT | 5 - HPU 2 - 10 GPM / 3000 PSI / 15 HP 3 - Skydrol 1 - CE Compliant 1 - Tronair Blue AH - KHC-1010 Coupling Kit Q - 208V 3 phase input voltage / 100' input input cable include A - 25 ft Hoses T - Return Back Pressure with Sight Gauge |
| 52311AI1 | CE Compliant, 220-240V 3 PH 60 HZ Input Voltage, KHC-1011 Couplers |
| 52311BY7 | CE Compliant, 380-400V 3 PH 50 HZ, KHC-2628 Couplers (ERJ/Legacy) |
| 52311EE1C | EE - KHC-1008 Aircraft Couplers - With Plastic Dust Caps 1 - 220-240V 3 PH 60 HZ Input Voltage Required / 50' AC Input Cable Included C - Dual System |
| 52311ZZ0 | CE Compliant, 208V 3 PH 60 HZ Input Voltage, No Aircraft Couplers |
| 52311ZZ1 | 5 - HPU 2 - 10 GPM / 3000 PSI / 15 HP 3 - Skydrol 1 - CE Compliant 1 - Tronair Blue ZZ - No Aircraft Couplers 1 - 220-240V 3 PH 60 HZ Input Voltage Required / 50' AC Input Cable Included Standard Features 15 ft Hoses (1 set) Single System |
| 52311ZZ1C | 5 - HPU 2 - 10 GPM / 3000 PSI / 15 HP 3 - Skydrol 1 - CE Compliant 1 - Tronair Blue ZZ - No Aircraft Couplers 1 - 220-240V 3 PH 60 HZ Input Voltage Required / 50' AC Input Cable Included C - Dual System Standard Features 15 ft Hoses (2 sets) |
| 52311ZZ6 | 5 - HPU 2 - 8 GPM / 3000 PSI / 15 HP 3 - Skydrol 1 - CE Compliant 1 - Tronair Blue ZZ - No Aircraft Couplers 6 - 220V 3 PH 50 HZ Input Voltage Required / 50' AC Input Cable Included |
| General Information | |
|---|---|
| Part # | 5230 |
| Manufacturer | Tronair |
| Specifications | |
|---|---|
| Fluid | Skydrol or Hyjet |
| Motor | 15 (11) hp (kW) |
| Pressure | 750-3000 (52-207) psi (bar) |
| Pressure Gauge Max | 5000 (345) psi (bar) |
| Pressure Hose | 8 (1/2") size |
| Pump Flow (50 Hz) | 8.3 (31.4) gpm (lpm) |
| Pump Flow (60 Hz) | 10 (37.8) gpm (lpm) |
| Return Hose | 12 (3/4") size |
| Weight | 1200 (544) lb (kg) |
Customers also viewed
Skydrol/HyJet HPU – 6 gpm, 3,000 psi, 5 HP
15 GPM, 3500 PSI, 25 HP
34 GPM, 3500 PSI, 40 HP
All-in-One Avionics Radio and Pulse Tester
Mobile Aircraft Mule
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Bombardier | Challenger 600 , Challenger 601 , Challenger 604 , Challenger 605 (CL605) , Challenger 650 , Dash 7 |
| Embraer | ERJ-135 , ERJ-140 , ERJ-145 , Legacy 600 , Legacy 650 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
Question:
What voltages can this unit be set for?
Answer:
Tronair 5230/5231 Series HPUs can be set for 200V to 460V 3-phase input voltage at either 50 or 60 Hz. Since these units are custom-built, this information is required upfront to complete them.
Asked August 9, 2024
Question:
What are the replacement hoses for this unit?
Answer:
The replacement pressure hose for the 5230/5231 Series HPU is TF-1041-09*180, and the return hose is TF-1041-15*180.
Asked August 13, 2024
Question:
What are the replacement filters for this unit?
Answer:
Question:
What features come standard on this unit?
Answer:
Standard features for the Tronair 5230/5231 Series HPU include:
- 15' Hoses
- Single System
- Return Filter
- 30-Gallon Reservoir
Asked August 13, 2024
Question:
What options are available to add to this unit?
Answer:
Available options for the Tronair 5230/5231 Series HPU include:
- 25' Hoses (Option A/AA)
- 50' Hoses (Option B/BB)
- Split System (Option C)
- Split System with Crossover Check (Option D)
- Hourmeter (Option E/F – 50 and 60 Hz)
- Voltage Monitor (Option G-J – Voltage-Dependent)
- Pyrometer (Option K)
- Electrical Reservoir Level (Option L)
- Hand Pump (Option M)
- Towing/Trailer Package (Option N)
- Reservoir Return (Option P)
- Calibration Port (Option Q)
- Electrical Filter Clogged Indicator (Option R)
- Electric Over-Temperature (Option S)
- Return Back-Pressure with Sight Gauge (Option T – Skydrol Only)
- Return Sight Gauge (Option U/Y)
- Return Back-Pressure (Option V/1)
- Return Filter (Option W)
- 50' Hand Pump (Option X)
- Drip Pan (Option 4)
- Hand Pump (Large Displacement) (Option 7)
- Pressure-Reducing Valve (Split System) (Option 8)
- 100' Input Cable
Asked August 13, 2024
