Available for Order
Usually ships in 4 to 5 days
$148.29 /ea.
Qty
Choose a meter model:
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
Key Features:
• Simultaneous Measurements: Accurately measure air velocity and temperature simultaneously for comprehensive system evaluation.
• CFM Calculation: This method determines cubic feet per minute (CFM) without the need for an air balance hood, streamlining airflow analysis.
• Smart Technology: Connect to Android and iOS smartphones via Bluetooth for data recording, analysis, and sharing.
• Versatile Probes: Utilize interchangeable hot wire and vane probes to measure a wide range of airflow conditions.
• Data Management: Record, store, and analyze minimum, maximum, and average readings for efficient troubleshooting.
• Multiple Units: Select from various measurement units (m/s, km/h, ft/min, knots, mile/h) to suit specific applications.

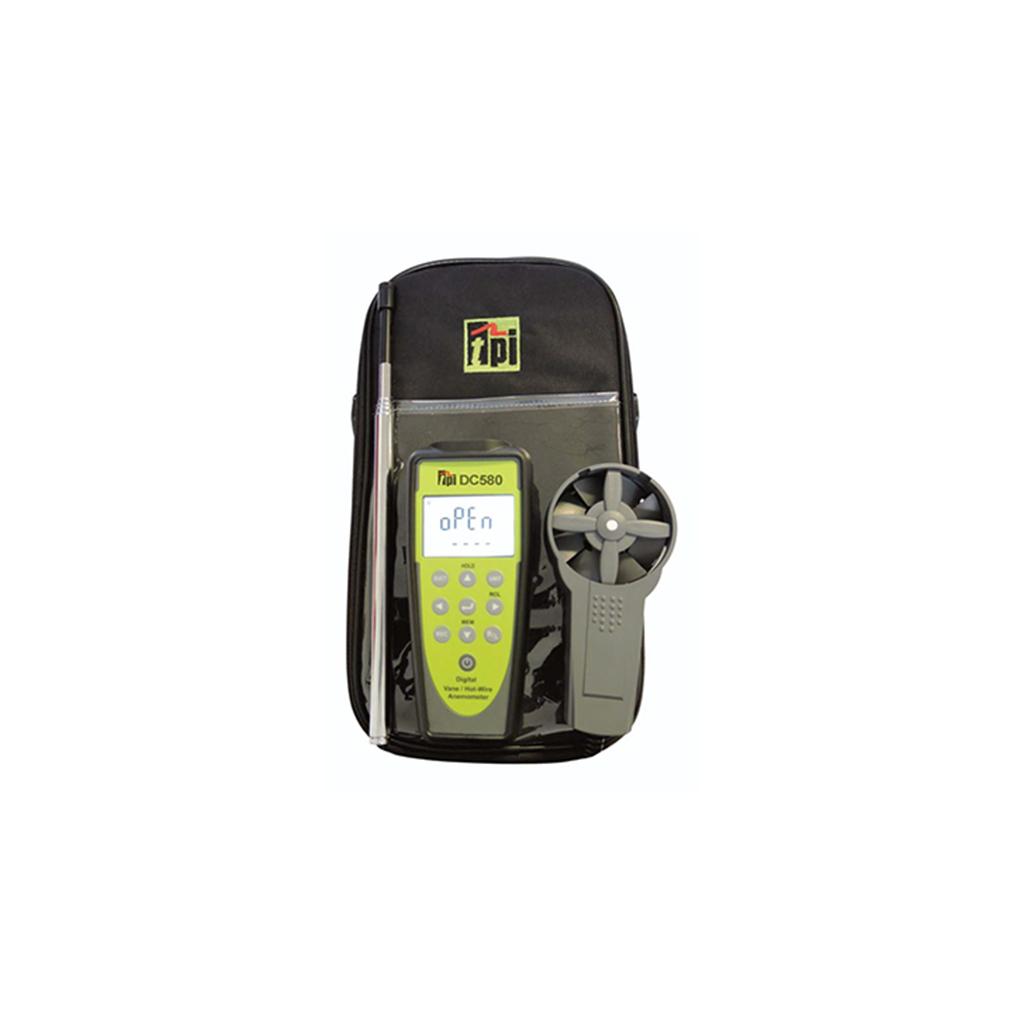

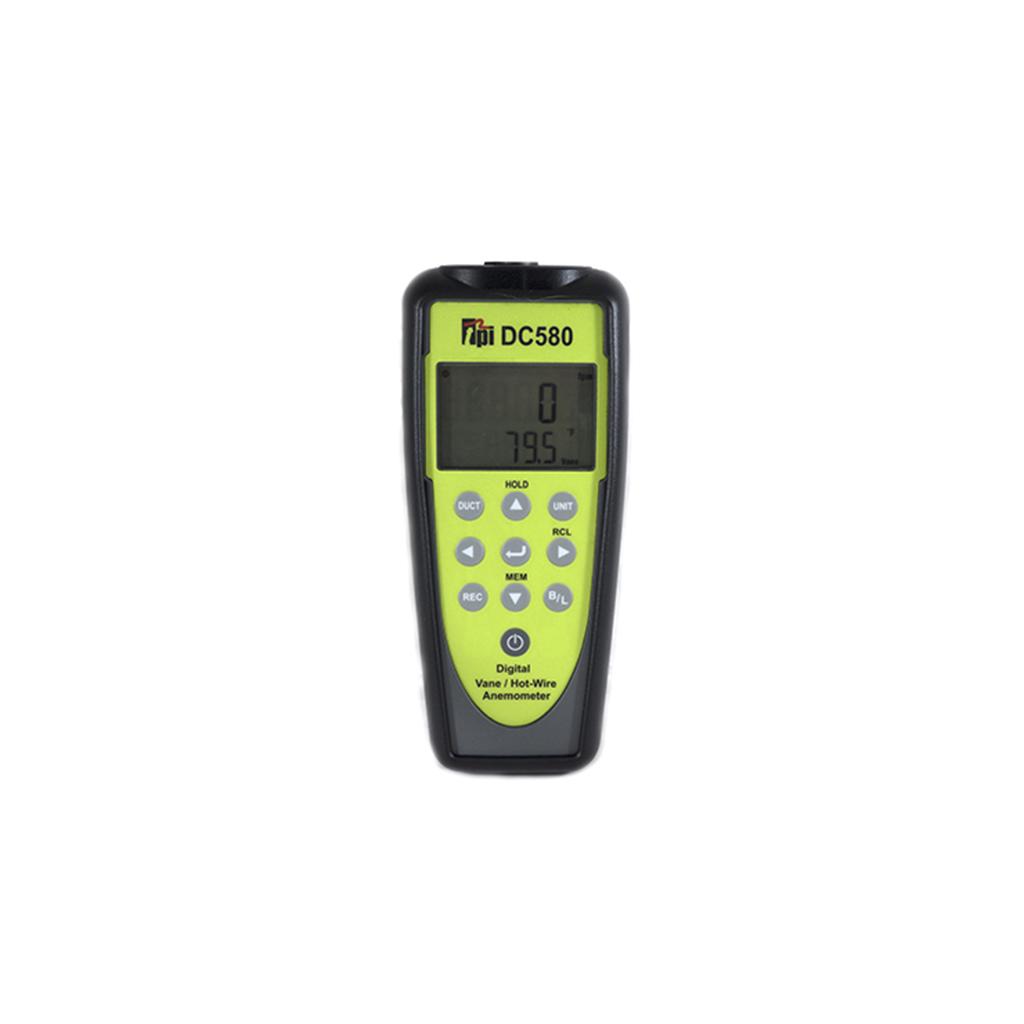

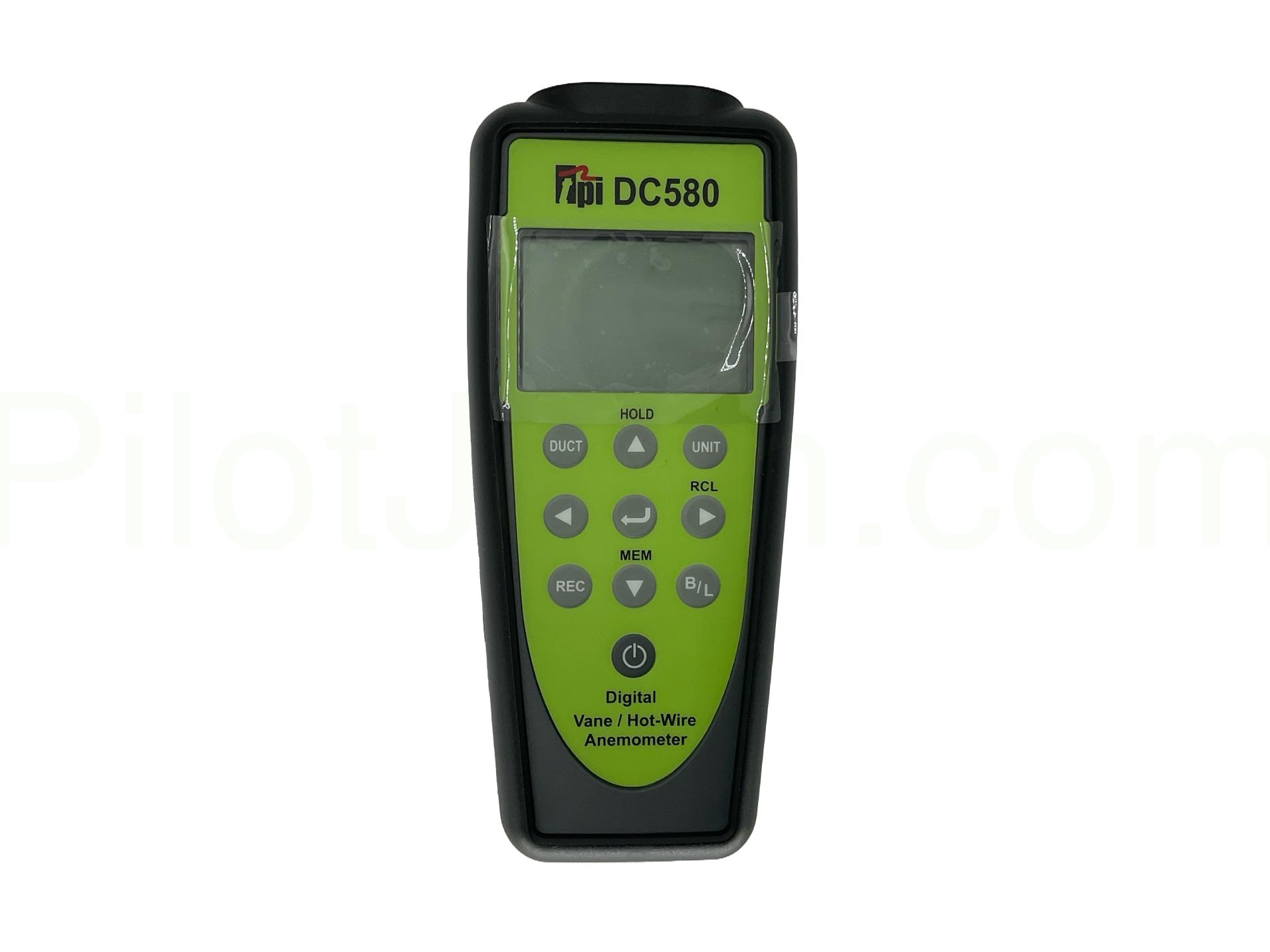

The Test Products International (TPI) DC580 Airflow Meter provides comprehensive airflow data, helping to optimize cabin comfort, improve system efficiency, and ensure passenger safety.
| General Information | |
|---|---|
| Part # | DC580 |
| Manufacturer | Test Products International |
| Shipping Information | |
|---|---|
| Product Weight | 1 lbs. |
| Product Dimensions | 10 x 8 x 6 in. |
| Schedule B | 9015808080 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Airflow (volume) calculate | CFM, CMM |
| Auto power off | 15 min ( if APO is active ) |
| Battery | 4.5V ( AA size x 3) |
| Battery life time | Hot air probe - about 30h. Vane air probe - about 68h |
| Communication | Bluetooth LE ( Tpi580BT only ) |
| Hotwire Air Accuracy | ±( 5% + 10 digit ) or ±( 1% + 10 digit ) F.S |
| Hotwire Air Range | 0.2 m/s ~ 20 m/s (40 fpm to 3900 fpm) |
| Hotwire Air Resolution | 0.01 m/s or fpm |
| Hotwire Air Unit | m/s, km/h, mph, fpm |
| Operation environment | -20 °C ~ 60 °C ( -4 °F ~ 140 °F ) at <75%RH |
| REC, HOLD | MIN, MAX, AVG, Data HOLD |
| Temperature Accuracy | ± 0.5 °C ( 0 °C ~ 45 °C ), ± 1 °C ( -20 °C ~ 0°C, 45°C ~ 60°C ), ± 1 °F ( 32 °F ~ 113 °F ), ± 2 °F ( -4 °F ~ 32°F, 113°F ~ 140°F ) |
| Temperature Range | -20 °C ~ 60 °C ( -4 °F ~ 140 °F ) |
| Temperature Resolution | 0.1 °C ( 0.1 °F) |
| Vane Air Accuracy | ±( 2% + 3 digit ) |
| Vane Air Range | 0.4 m/s ~ 25 m/s (80 fpm to 4900 fpm) |
| Vane Air Resolution | 0.4 m/s ~ 25 m/s (80 fpm to 49010 fpm) |
| Vane Air Unit | m/s, km/h, mph, fpm |
