PSH-200 - Aircraft Force Gauge (Push Pull) 200 lb Capacity

The Imada PSH-200 is a high-capacity force gauge with 200 lbf capacity and 1 lbf resolution.

The heavy-duty metal housing and heavy-duty springs will withstand the harsh rugged environment of a manufacturing plant. The highly accurate, matched springs will ensure reliable results and retain their accuracy over long periods. The tare ring allows you to zero the gauge and compensate for measuring attachments and changes in measuring position. The real-time/peak hold selector switch enables users to observe transients or capture peaks. This high-capacity mechanical force gauge is available in pounds, kilograms and Newton's models. No batteries are needed and the unit is intrinsically safe in hazardous environments.

Note: Mechanical force gauges are not recommended for destructive testing or shock load applications.

Standard Features

• Simple, rugged, virtually maintenance free
• High degree of accuracy
• Capacities up to 500 lbf (push and pull)
• No batteries needed
• Intrinsically safe in hazardous environments
• Rugged design for heavy usage
• Heavy duty metal construction
• Tare ring
• Real-time and peak mode
• A full set of accessories and carrying case included
• Mechanical force gauges are not recommended for destructive testing or shock load applications

Calibration

All gauges include a free certificate of calibration traceable to NIST. ISO-17025 certificates are available for an additional charge.

Included in the kit

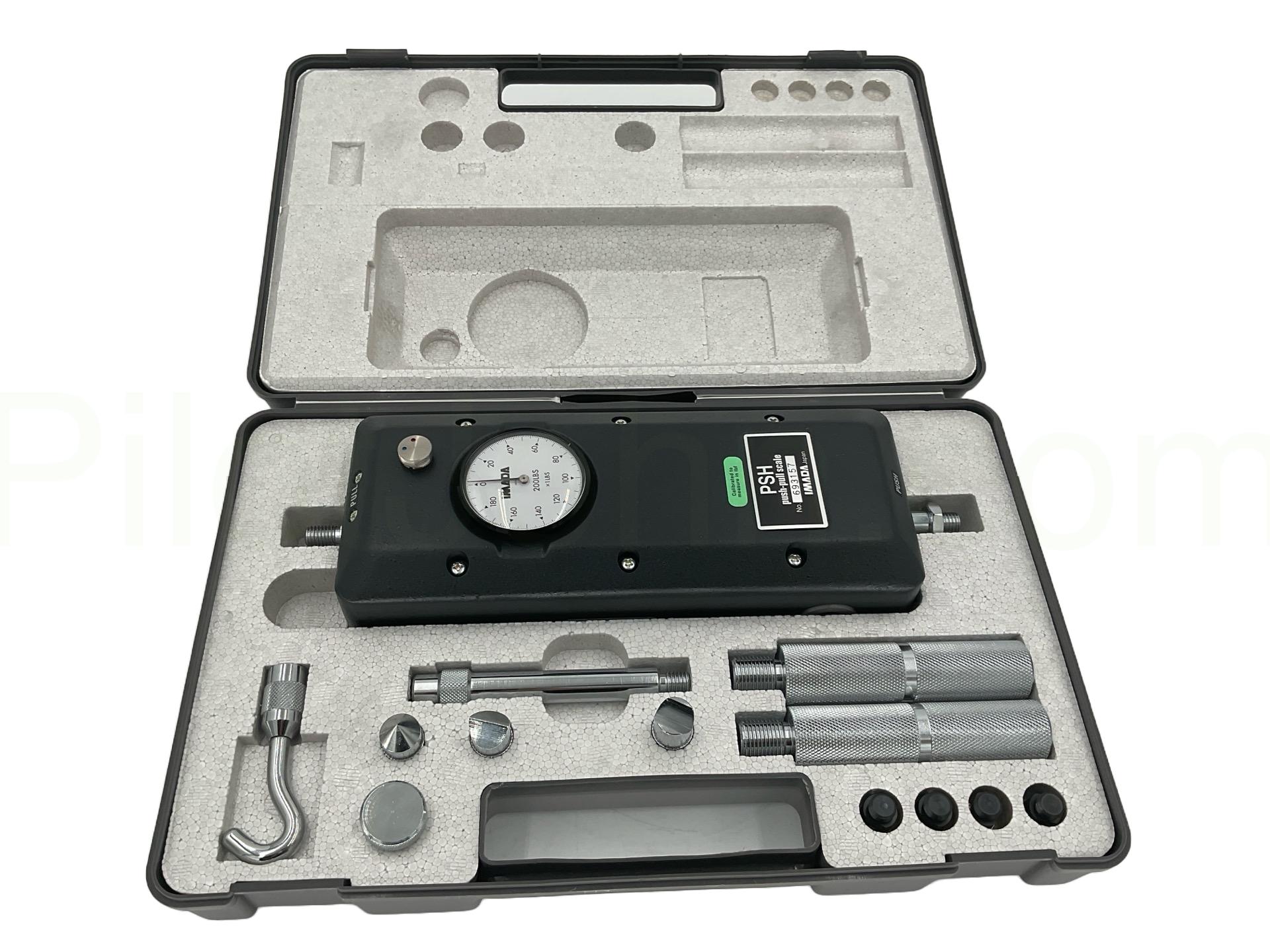

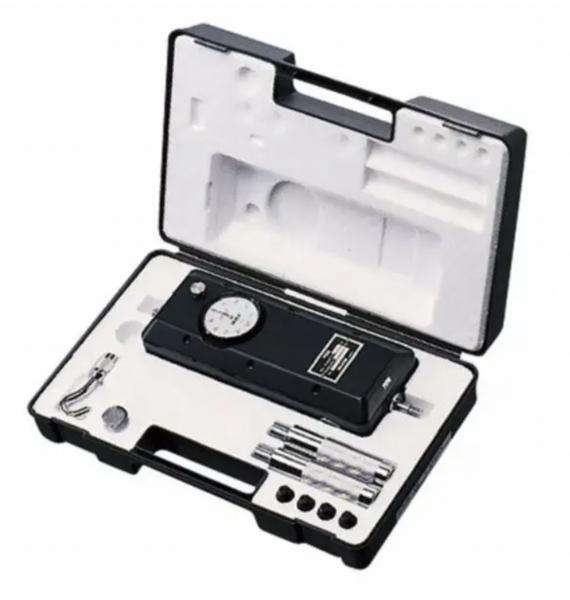

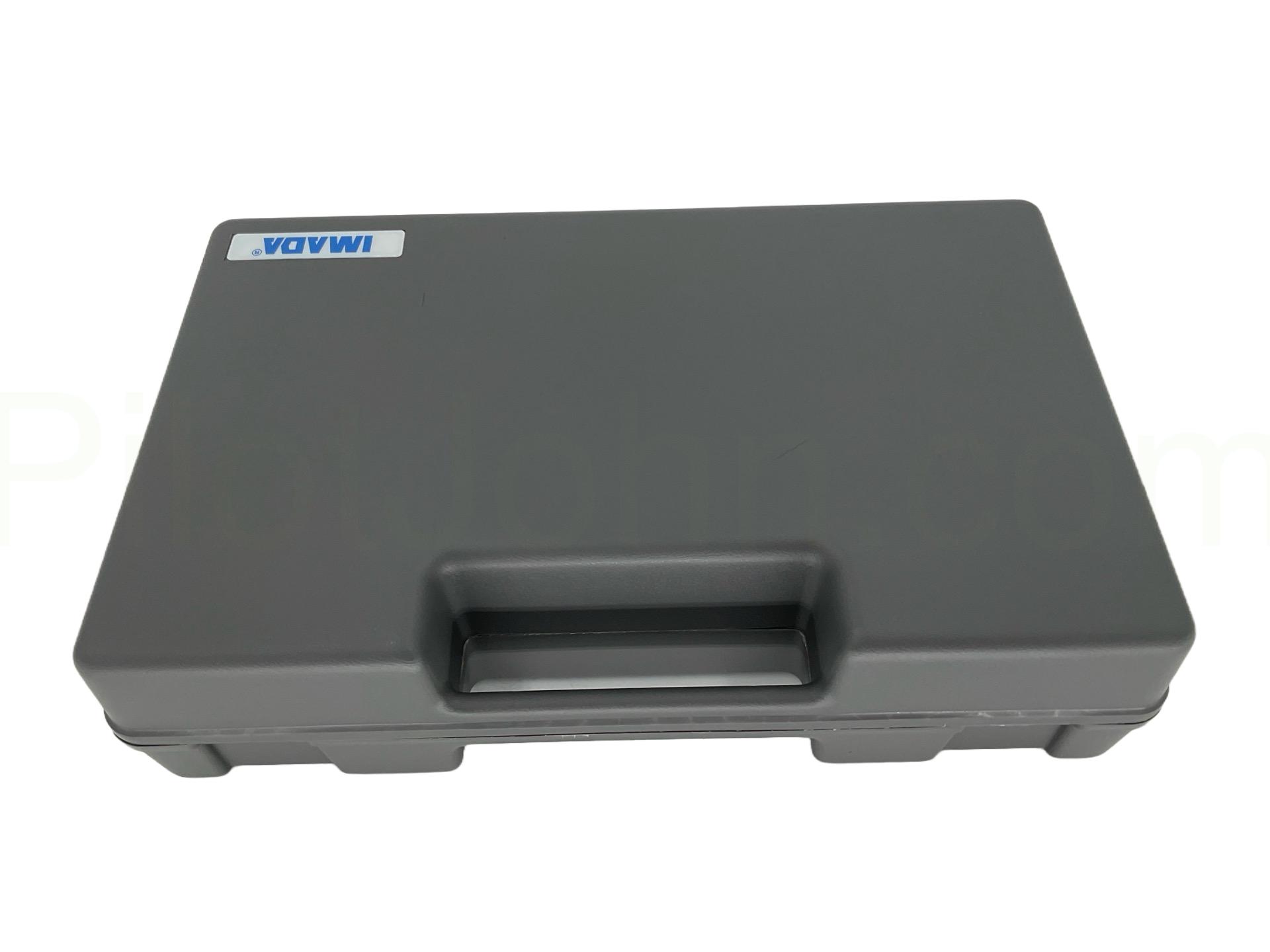

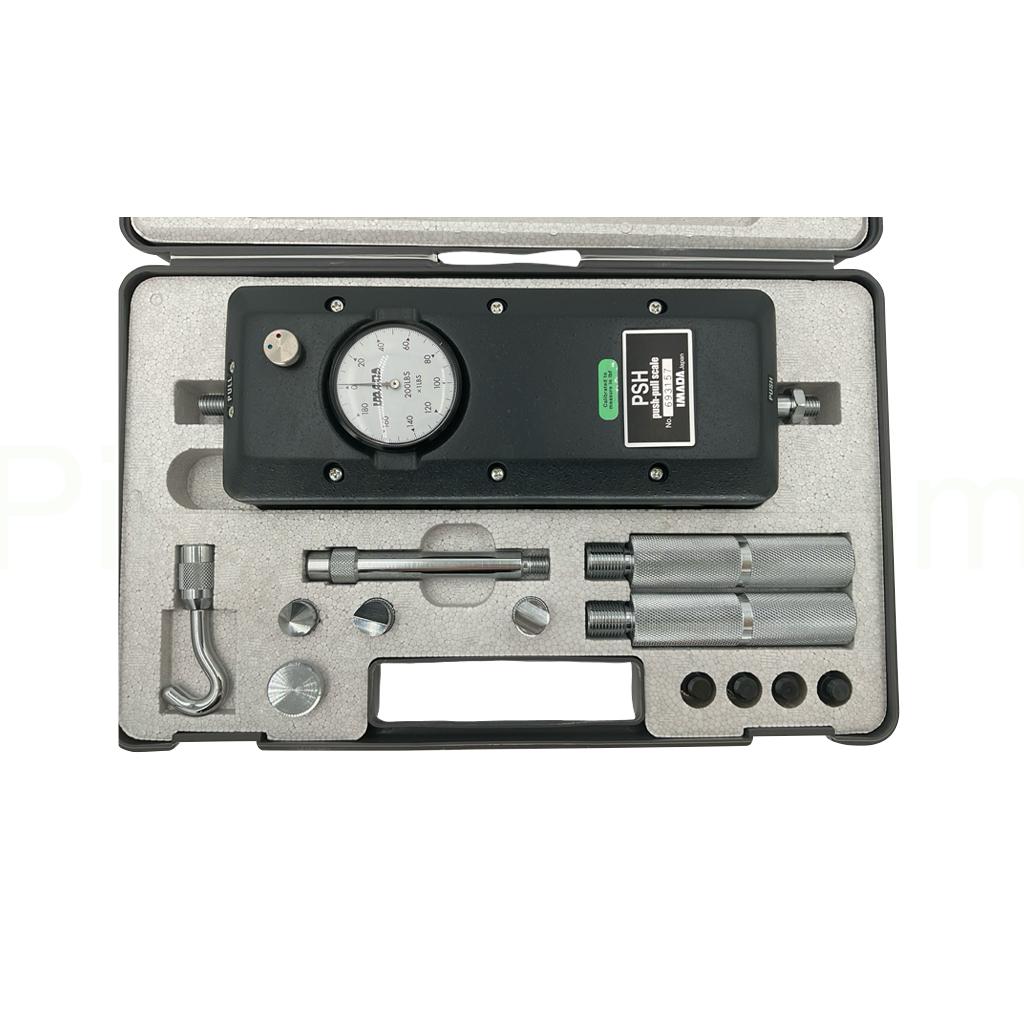

Sold in kit form complete with force gauge, hard plastic carrying case, handles, measuring attachments including flat head, conical, chisel, notched, and a small hook, and extension shaft. Four installation bolts are also included for mounting the gauge to a test stand or other permanent location.
