WA102 – Flap Transmission Test Kit (SPL-24270)

The TPI WA102 Flap Transmission Test Kit is a purpose-built wireless vibration analysis solution designed specifically to support Boeing flap transmission inspection and troubleshooting tasks, including TASK-27-51-00-200-805, TASK-27-51-00-700-802, and TASK-20-10-76-700-809. This advanced kit enables maintenance technicians to accurately assess flap system health, identify vibration anomalies, and diagnose bearing, alignment, or looseness issues with confidence.

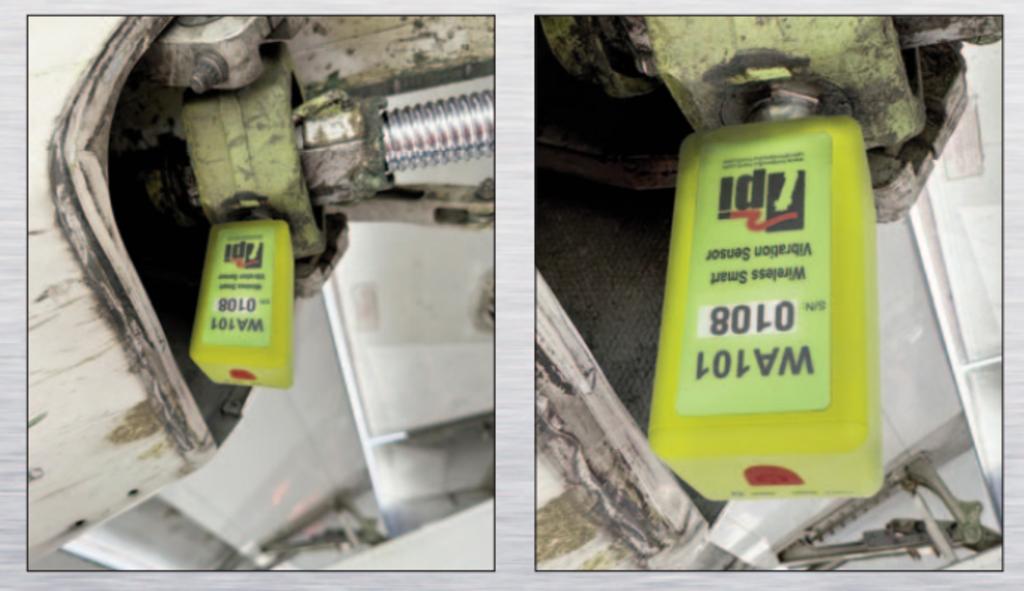

At the core of the WA102 kit are four WA101 Wireless Smart Vibration Sensors, delivering high-resolution, wide-frequency vibration data without the limitations of wired connections. Integrated magnets allow for fast, secure mounting directly to metallic structures, making setup quick and repeatable in real-world aircraft maintenance environments.

Kit Includes

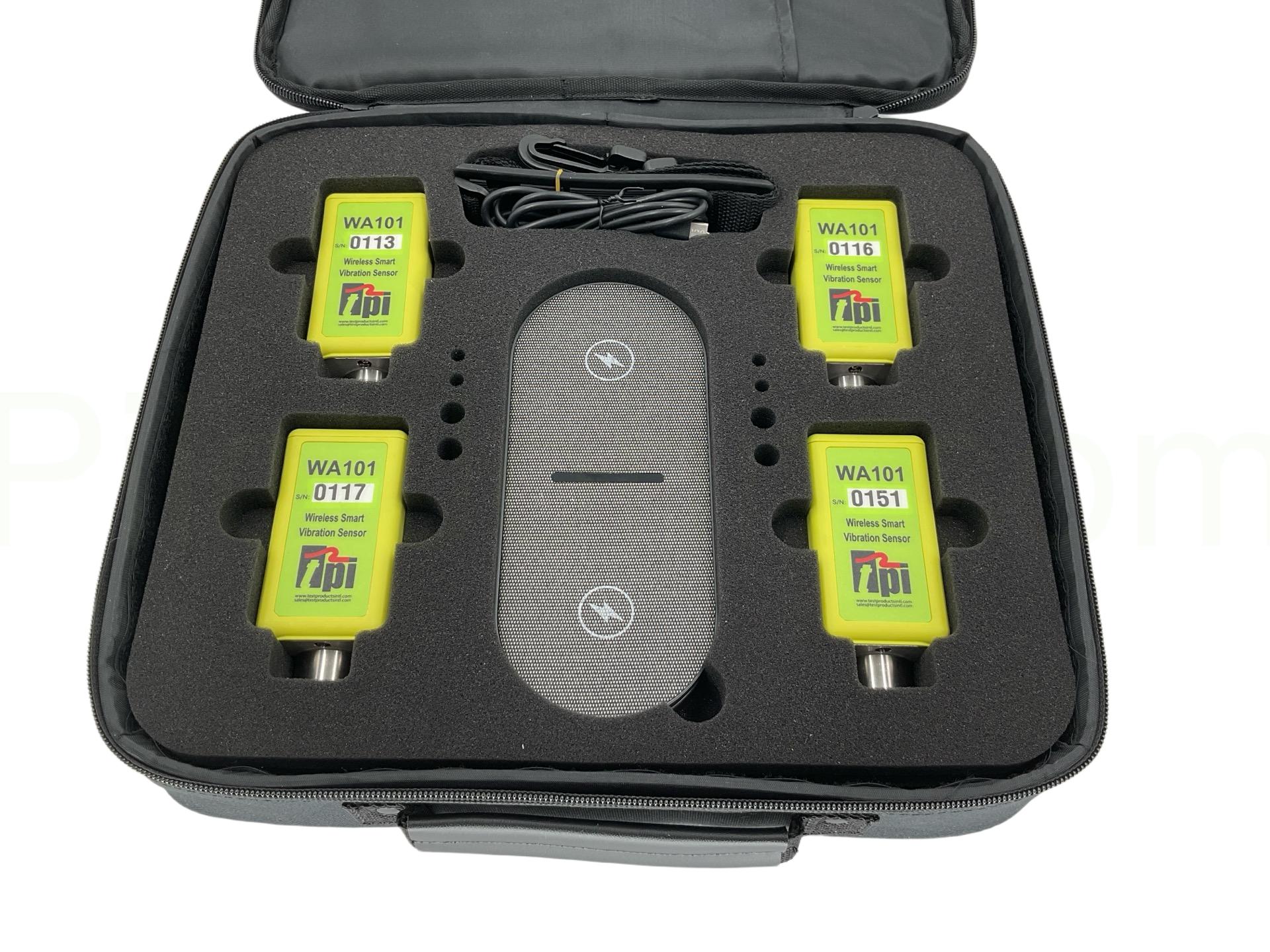

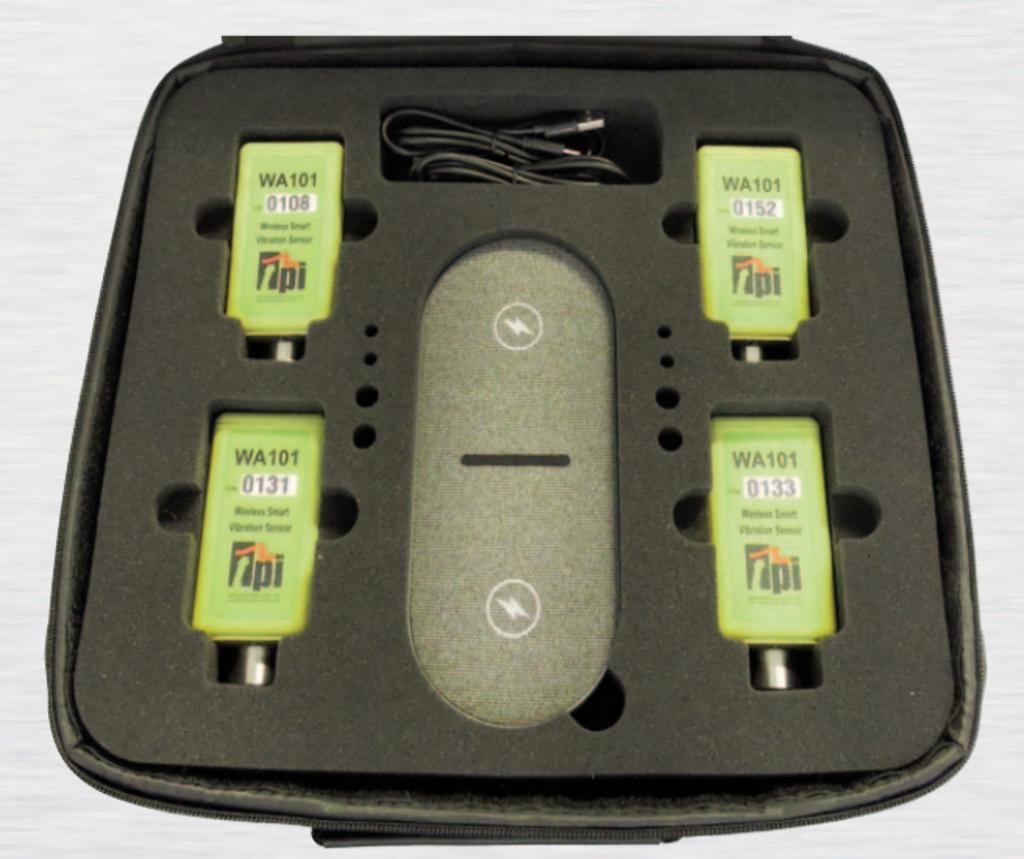

• (4) WA101 Wireless Accelerometers with Magnets

• (2) USB Dual Charging Pads with USB Cables

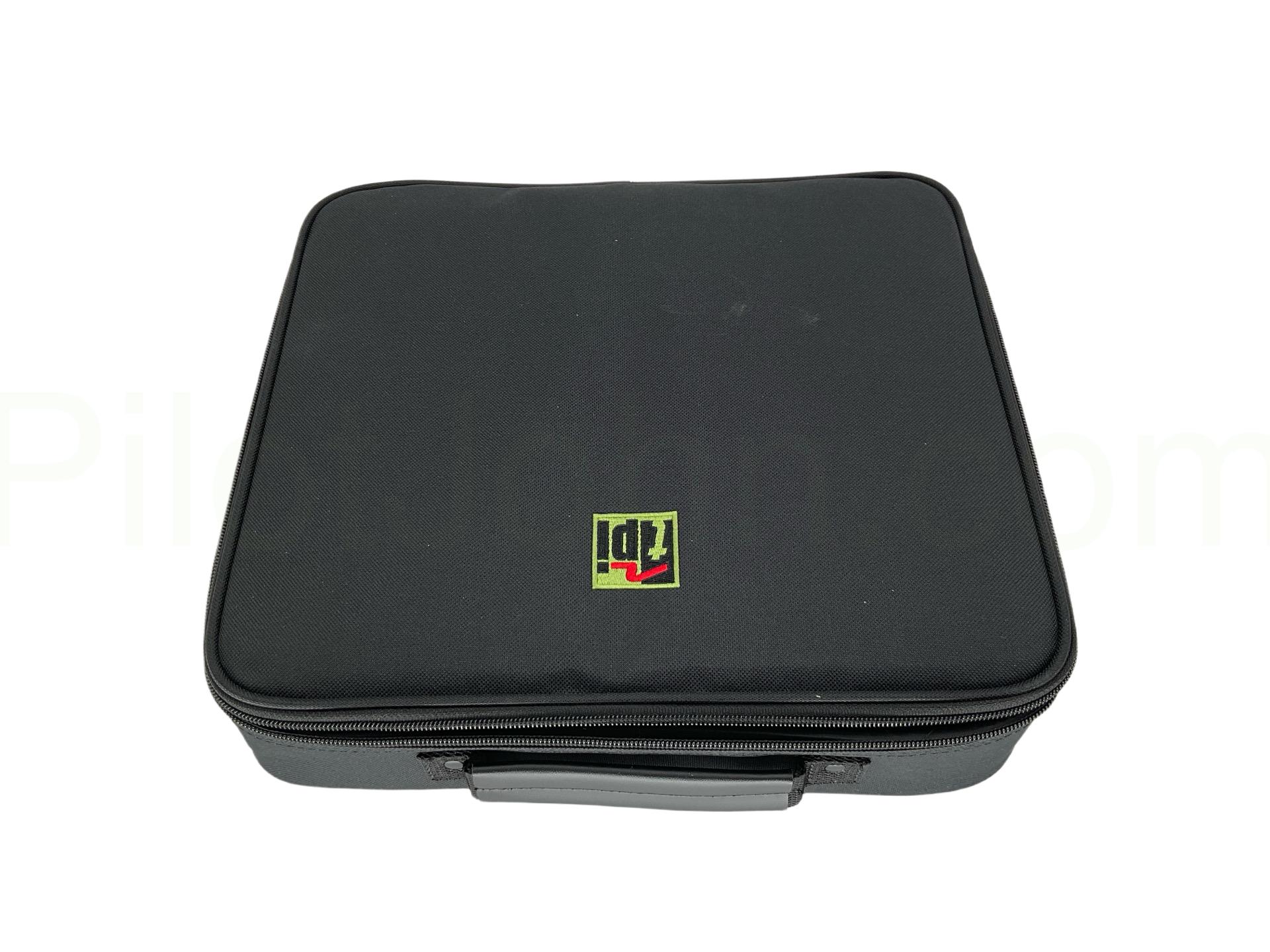

• Rugged Carrying Case

Key Features & Capabilities

• Wide Frequency Coverage: Measures from 2 Hz to 10 kHz, supporting both low-frequency vibration analysis and high-frequency bearing diagnostics

• High-Resolution Data Capture: Sampling up to 10 kHz Fmax with 51,200 lines and a 24-bit A/D converter ensures precise, repeatable results

• Bearing Condition Detection: Dedicated BDU (Bearing Noise) frequency range from 1 kHz to 10 kHz for early identification of bearing wear or damage

• Wireless Bluetooth® Connectivity: Bluetooth® 5 sensor connection with up to 15 meters (49 ft) operating range simplifies setup and improves technician mobility

• Rugged, Aircraft-Ready Design: IP67-rated sensors are sealed against dust and water, making them suitable for harsh hangar and ramp environments

• Wireless Charging: Long battery life with convenient wireless charging using the included dual charging pads

• Software Compatibility: Works seamlessly with Boeing’s Reliable Plane App for streamlined data collection and analysis

Typical Applications

• Boeing flap transmission vibration analysis

• Detection of unbalance, misalignment, looseness, and bearing defects

• Preventive maintenance and troubleshooting during scheduled inspections

• Condition-based monitoring of flap drive components

Technical Specifications

• Sampling Frequency: 10 kHz Fmax, up to 51,200 lines

• A/D Converter: 24-bit

• Dynamic Range: 108 dB

• Measurement Range:

  • 2/10 Hz to 1 kHz (ISO standard vibration assessment)

  • 1 kHz to 10 kHz (BDU bearing noise analysis)

• Frequency Range: 2 Hz to 10 kHz

• Sensor Connection: Bluetooth® 5

• Power Supply: Wireless charging with long battery life

• IP Rating: IP67

• Bluetooth Frequency: 2.402 – 2.480 GHz

• Certification: FCC ID: 2AMWOFSC-BT806
