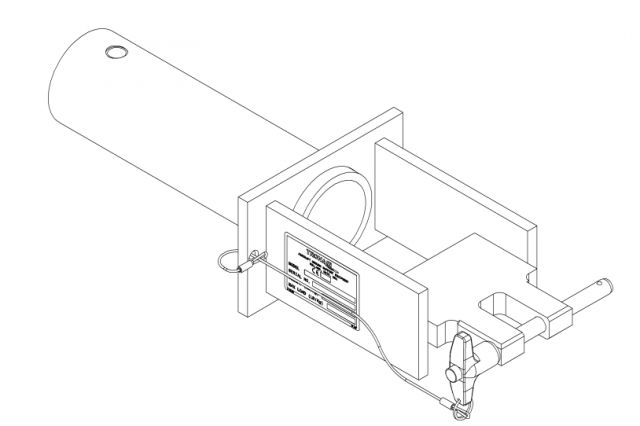

Tronair 01-0625-0000 – Towbar Head Attachment for Pilatus PC-12 & PC-24 Aircraft (CE)
Create yours now for free.
Need a Quote?
The Tronair 01-0625-0000 Towbar Head Attachment is designed for use with the Tronair 01-1202-0000 Multi-Head Towbar for towing the Pilatus PC-12 and PC-24 aircraft.
The towbar head attachment uses a sliding ball-lock pin arrangement to interface with the aircraft tow point.
Standard Features
- Sturdy welded steel construction
- Positive locking to the towbar via a ball-lock T-pin
- Shear protection – both radial and/or compression/tension – built in to protect the nose gear, as required
- CE marked
- Durable powder-coat finish (Tronair Blue)
Specifications
- Maximum Aircraft Gross Weight: 17,650 lbs. (8 metric tons)
- Length: 16.5" (41.9 cm) – from centerline to centerline
- Width: 6.25" (15.9 cm) – at the aircraft interface
- Height: 4" (10.2 cm)
- Weight: 15 lbs. (6.8 kg)
| Alternate Models | |
|---|---|
| 01-0573-0012 | Previous Part Number |
| General Information | |
|---|---|
| Part # | 01-0625-0000 |
| Manufacturer | Tronair |
| NSN | 1730016912779 |
| Manual 1 | View Tronair 01-0625-0000 Parts, Service, and Operation Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 21 lbs. |
| Shipping Dimensions | 26 x 12 x 10 in. |
| Schedule B | 8716900000 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| G-1319-12108 | Ball Lok-T Pin |
| H-3178*12.0 | Lanyard Assembly |
| Z-3226-01 | Head Weldment |
Customers also viewed
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Pilatus |
PC-12
NOTE
This towbar head is required for the Multi-Head Towbar (01-1202-0000).
,
PC-24
NOTE
This towbar head is required for the Multi-Head Towbar (01-1202-0000).
|
PRODUCT REVIEWS
QUESTIONS & ANSWERS
This towbar head is designed to interface with specific Tronair towbar models that accommodate interchangeable heads. Always confirm that your towbar is compatible before installation, as an improper fit may compromise towing safety and efficiency. Tronair provides guidance on matching heads to towbar bases for optimal performance.
The 01-0625-0000 uses a locking pin mechanism to attach securely to the aircraft’s nose gear. This design ensures a stable connection during towing, reducing the risk of accidental disengagement. The quick-lock system also allows for fast installation and removal, saving time during ground handling.
Routine inspection is recommended to ensure the smooth operation of moving parts. Light lubrication of pivot points and locking pins can extend service life and maintain ease of use. Avoid excessive grease, which can attract dirt and debris and may affect performance.
Constructed from high-strength, corrosion-resistant steel, the 01-0625-0000 is built to withstand demanding ramp conditions. The robust design helps maintain structural integrity under heavy towing loads, while the protective coating resists wear from weather and operational use.
Basic ground handling training is sufficient to operate this towbar head attachment safely. Crews should be familiar with proper towing procedures for Pilatus PC-12 and PC-24 aircraft and Tronair’s recommended operating guidelines. This helps prevent nose gear damage and ensures smooth towing operations.
While the 01-0625-0000 is built from corrosion-resistant materials, prolonged exposure to the elements can reduce its lifespan. To preserve its finish and mechanical integrity, the attachment should be stored in a covered or indoor location.
Yes, Tronair offers replacement locking pins, bushings, and other wear components for the 01-0625-0000. Using OEM replacement parts ensures proper fit and maintains the head’s structural and operational performance.
The precise fit for Pilatus aircraft nose gear reduces the likelihood of slippage or misalignment during towing. Combined with its durable build and secure locking mechanism, the 01-0625-0000 helps prevent damage to both the aircraft and towing equipment, enhancing overall ramp safety.
