Tronair 01-0626-0000 – Towbar Head Attachment with Shear Protection – Cessna Citation Aircraft (CE)
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

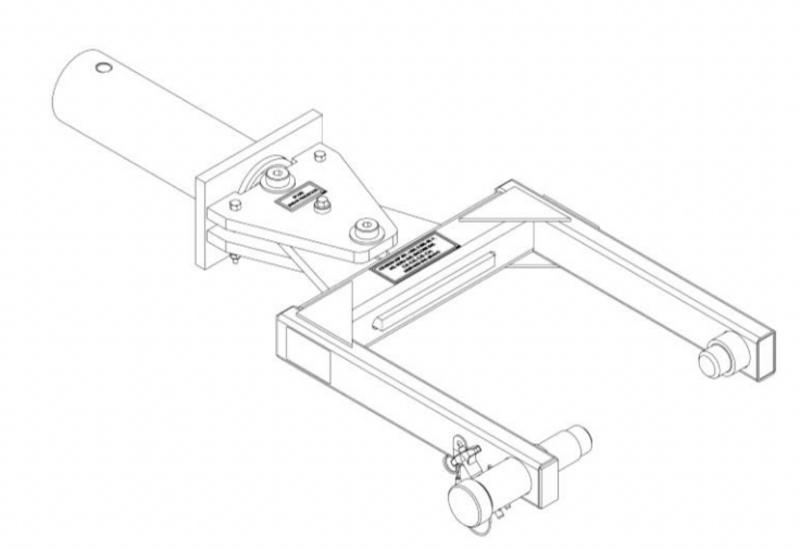

The Tronair 01-0626-0000 Towbar Head Attachment is designed for use with the Tronair 01-1202-0000 Multi-Head Towbar for towing select Cessna Citation aircraft. This towbar head is equipped with shear protection to protect the aircraft's nose gear during towing operations.
The towbar head attachment uses a sliding pin/stationary pin arrangement to interface with the aircraft tow point.
Standard Features
- Sturdy welded steel construction
- Positive locking to the towbar via a ball-lock T-pin
- CE marked
- Durable powder-coat finish (Tronair Blue)
Specifications
- Maximum Aircraft Gross Weight: 23,500 lbs. (10.5 metric tons)
- Length: 28.9" (73.5 cm) – from centerline to centerline
- Width: 16.1" (40.8 cm) – at the aircraft interface
- Height: 4" (10.2 cm)
- Weight: 38.2 lbs. (17.3 kg)
| General Information | |
|---|---|
| Part # | 01-0626-0000 |
| Manufacturer | Tronair |
| Shipping Information | |
|---|---|
| Shipping Weight | 48 lbs. |
| Shipping Dimensions | 34 x 17 x 15 in. |
| ECCN | EAR99 |
Customers also viewed
Multi-Head Aircraft Towbar, 66,000-lb. Capacity
44" to 76", CE-Marked
Towbar Head Attachment with Radial Shear Protection – Learjet Aircraft
Towbar Head Attachment without Shear Protection – Select Cessna Aircraft
Towbar Head Attachment for Pilatus PC-12 & PC-24 Aircraft
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Cessna |
Bravo
NOTE
This is required for use with the Multi-Head Towbar (01-1202-0000).
,
Citation CJ1
NOTE
This is required for use with the Multi-Head Towbar (01-1202-0000).
,
Citation CJ2
NOTE
This is required for use with the Multi-Head Towbar (01-1202-0000).
,
Citation CJ3
NOTE
This is required for use with the Multi-Head Towbar (01-1202-0000).
,
Citation CJ4
NOTE
This is required for use with the Multi-Head Towbar (01-1202-0000).
,
Citation Encore 560
NOTE
This is required for use with the Multi-Head Towbar (01-1202-0000).
,
Citation I 500
NOTE
This is required for use with the Multi-Head Towbar (01-1202-0000).
,
Citation I/SP 501
NOTE
This is required for use with the Multi-Head Towbar (01-1202-0000).
,
Citation II 550
NOTE
This is required for use with the Multi-Head Towbar (01-1202-0000).
,
Citation M2
NOTE
This is required for use with the Multi-Head Towbar (01-1202-0000).
,
Citation SII
NOTE
This is required for use with the Multi-Head Towbar (01-1202-0000).
,
Citation Ultra 560
NOTE
This is required for use with the Multi-Head Towbar (01-1202-0000).
,
Citation V
NOTE
This is required for use with the Multi-Head Towbar (01-1202-0000).
,
Mustang 510
NOTE
This is required for use with the Multi-Head Towbar (01-1202-0000).
|
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
