Tronair 01-1277-0010 Aircraft Multi-Head Towbar - Tow up to 75,000 lbs
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

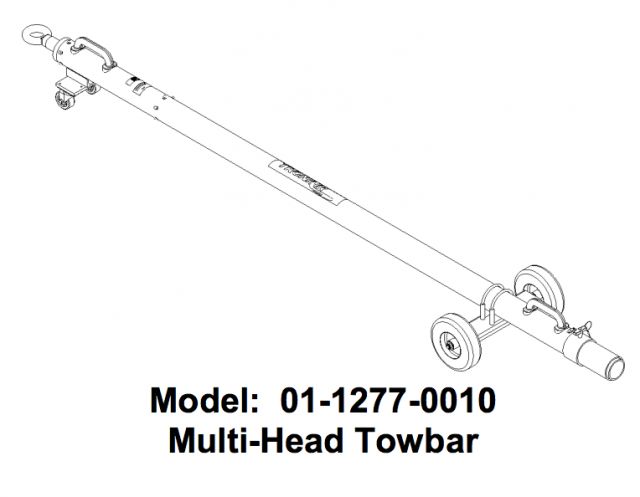

The Tronair 01-1277-0010 multi-head towbar is use with the Tronair series 500 heads. This bar is rated for towing up to 75,000 lbs.
The multi-head towbar includes pneumatic tires in addition to casters at the tug end. There is an eyebolt at the towing end of the towbar which incorporates a spring to dampen shock loads.
Specifications
- Application: Designed for use with Tronair Series 500 Multi-Heads
- Maximum Aircraft Gross Weight: 75,000 lbs (34 Metric ton)
- Length: 126-3/16 in (320.5 cm) from eyebolt centerline to end of towbar
- Width: 21-7/8 in (55.6 cm)
- Height: 7-3/4 in (19.7 cm) from ground to towbar tube centerline
- Tube: 4 in (10.16 cm) diameter
- Weight: 127 lbs (57.6 kg)
- Finish: Blue Powder Coat
- Material: Aluminum
| Alternate Models | |
|---|---|
| 01-1277-0000 | Previous Tronair Model Number for Towbar |
| 01-8001-0000 | Previous Part Number |
| Alternate Option | 01-1201-0010 |
| GSB0900002 | Bombardier GSE PN |
| General Information | |
|---|---|
| Part # | 01-1277-0010 |
| Manufacturer | Tronair |
| Shipping Information | |
|---|---|
| Shipping Weight | 160 lbs. |
| Shipping Dimensions | 132 x 18 x 14 in. |
| Freight NMFC | 186980 |
| Schedule B | 8716900000 |
| ECCN | EAR99 |
