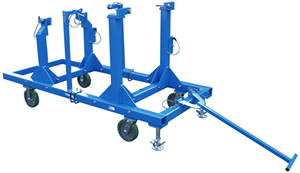

Tronair 08-2014-0000 – Aircraft Engine Work Stand for Pratt & Whitney PW100 Series Engines
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
The Tronair 08-2014-0000 is an aircraft engine work stand designed for use with Pratt & Whitney PW100 series engines.
NOTE: This work stand will not work with the PW-119 engine.
Standard Features
- Heavy-duty welded steel construction
- Two swivel casters and two rigid heavy-duty casters for easy maneuverability
- Rigid casters are equipped with floor locks for securing the stand in a fixed position
- Convenient oil pan captures excess fluid to avoid damage to hangar floors
- Easily converted to accept left- and right-hand engines
- Multiple engine adaptability (engine adapter kits sold separately)
- Removable towbar with storage hooks
- Adapters change in minutes
- Durable powder-coat finish (Tronair Blue)
Specifications
- Engine Manufacturer/Model: Pratt & Whitney PW-100 Series (except PW-119)
- Dimensions: 86" L x 38" W x 45" H (219 x 97 x 114)
- Weight: 540 lbs. (245 kg)
| Alternate Models | |
|---|---|
| 08-8046-0000 | Previous Part Number |
| GSB7100019 | Bombardier GSE Part Number |
| General Information | |
|---|---|
| Part # | 08-2014-0000 |
| Manufacturer | Tronair |
| Shipping Information | |
|---|---|
| Shipping Weight | 760 lbs. |
| Shipping Dimensions | 99 x 44 x 54 in. |
| Freight NMFC | 178160 |
| Schedule B | 8425420000 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| G-1100-107006 | Bolt, 3/8-16 Hex HD Grade 5 |
| G-1100-107012 | Bolt, 3/8-16 Hex Head Grade 5 |
| G-1100-107544 | Bolt, 3/8-24-Hex HD Grade 5 |
| G-1100-109544 | Bolt, 1/2-20 Hex Head Grade 5 |
| G-1151-110254 | Screw, 5/8-11 Hex Socket Head Cap |
| G-1202-1075 | Stop Nut, 3/8-24 Elastic |
| G-1202-1095 | Stop Nut, 1/2-20 Elastic |
| G-1202-1100 | Stop Nut, 5/8-11 Elastic |
| G-1250-1070W | Flat Washer, 3/8 Wide |
| G-1255-07 | Washer, 3/8 AN |
| G-1255-09 | Washer, 1/2 AN |
| K-1192 | Kit, Replacement Rigid Caster (D) |
| K-1193 | Kit, Replacement Swivel Caster |
| K-1194 | Kit, Replacement Floor Lock (D) |
| K-1880 | Kit, Replacement Ball-Lock Pin (D) |
| K-1881 | Kit, Replacement Ball-Lock Pin (D) |
| K-1882 | Kit, Replacement Ball-Lock Pin |
| K-1883 | Kit, Replacement Clevis Pin (D) |
| K-1884 | Kit, Replacement Support Mount (D) |
| Z-1471-01 | Weldment, Forward Mounting Arm (Left) (P) |
| Z-1472-01 | Weldment, Forward Mounting Arm (Right) (P) |
| Z-1474-01 | Weldment, Rear Support (P)(D) |
| Z-1476-01 | Weldment, Forward Support, Right (P) (D) |
| Z-1477-01 | Weldment, Frame (P) (D) |
| Z-1478-01 | Weldment, Towbar (P) |
| Z-1623-01 | Weldment, Forward Support, Lower (P) (D) |
| Z-1624-01 | Weldment, Rear Support, Lower (P) (D) |
| Z-1625-01 | Weldment, Forward Support, Upper (P) (D) |
| Z-1626-01 | Weldment, Rear Support, Upper (P) (D) |
| Z-1812-01 | Weldment, Engine Adapter (Rear) (P) |
| Z-2120-01 | Assembly, Engine Support |
| Z-2120-02 | Assembly, Engine Support |
Customers also viewed
Engine Work Stand with Rotating Base
Portable Turbine Engine Work Stand
PW305 Engine Stand
for ATR & Dash 8 Aircraft
Propeller Torque Motor Removal Tool
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| ATR | 42 |
| Bombardier | Dash 8-100 , Dash 8-200 , Dash 8-300 |
| Embraer | EMB-120 |
| Fairchild/Dornier | Dornier DO328 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
PRODUCT REVIEWS
5/5
by Joe, an Air Cargo Operation in USA
08/18/2016 10:04:41 AM
Very satisfied with purchase. Thankful for the guidance on hardware and boom arm for lifting and moving the PW127. Good quality build on the stand. We could use a shorter lead time.
