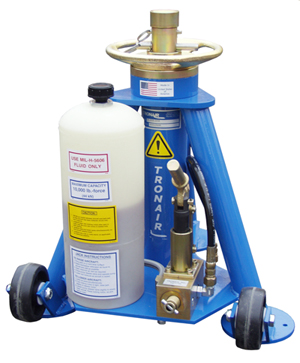

Jack, Tripod 5 Ton - Tronair 02-0520-0110
This item has been discontinued or is no longer available.
It has been replaced by 02-0520C0111.
- Hand Pump with built-in pressure relief valve
- Threaded rams with improved hand wheel style safety nut
- Quick rising center extension
- Easy access filler/breather cap
- Heavy duty wheels on all jacks where spring loaded casters are not standard
- Hydraulic fluid: MIL-PRF-5606
- 3/4 in (2 cm) spherical radius cup jack pad
- Finish: Durable Powder Coat Tronair Blue
|Hydraulic Extension||12 (30) in (cm)|
|Fully Extended||38 (97) in (cm)|
|Closed Height||20 (51) in (cm)|
|Mechanical Extension||6 (15) in (cm)|
|Weight||90 (41) lb (kg)|
|Single (S) or Multi (M) Stage||M|
|K-1106||Air Pump Manifold Kit|
|K-1049||Cylinder Seal Kit|
|K-1043-39||Air Pump Kit|
|K-1685||Air Pump Seal Kit (Hydraulic)|
|K-1686||Air Pump Seal Kit (Pneumatic)|
|HJ-536||Ram Protection Ring|
|K-1061-04||Replacement Reservoir Kit|
|K-1000||Pump Seal Kit|
|HJ-532-01||Large Jack Pad|
|HJ-532-02||Small Jack Pad|
|Replacement parts may vary depending on serial number. Please refer to the manual for your specific unit to find correct replacement parts or provide your serial number in the comments box when requesting a quote below and we will check for you.|
|Bell||214, 214ST, 222, 230, 430|
|Bombardier (Business)||Learjet 60|
|Cessna||Bravo, Citation CJ1, Citation CJ2, Citation CJ3, Citation CJ4, Citation Encore 560, Citation I 500, Citation I/SP 501, Citation II 550, Citation M2, Citation SII, Citation Ultra 560, Citation V|
|Pkg. 1 Weight||125 lbs.|
|Pkg. 1 Dimensions||25 in. x 21 in. x 25 in.|
We service the 02-0520-0110 and other items like it at our facility.
We'll provide you with a custom-sized pallet for your item and send it to you via LTL freight. Once you receive the pallet, strap down your item to it and attach the pre-paid shipping label. After you let us know when it's ready to go, we'll schedule the pickup from your facility. The entire process takes only a few days and makes servicing your item less expensive since we can do it directly at our facility. When we've completed the servicing, we'll ship your item back to you via LTL freight. How often should jacks be load tested?
(Statement from Tronair) Tronair recommends functional load testing of hydraulic jacks on an annual (12-month) preventative maintenance cycle. Tronair also recommends load testing any time the jack seals have been replaced.
To request service for load testing a tripod jack, please contact us at the form below or visit us at the following link to request service - Aircraft Jack Load Test. What seal kits can we replace?
We have the capability to replace the cylinder and hand pump seals on tripod jacks. Along with replacing the seals, we will provide load test certification as recommended by the manufacturer. To help with making the seal kit replacement process simple, we will help with shipping the jacks to and from our facility.
As an authorized Tronair Distributor, we sell factory OEM parts for the 02-0520-0110. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.
We provide short-term and long-term rentals for the 02-0520-0110. We will ship the item directly to you and arrange for pickup at the end of your lease.
We can purchase your used 02-0520-0110 (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
