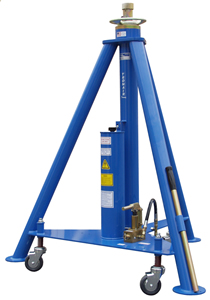

Tronair 02-1256C0111 – 12-Ton Tripod Jack

When using a tripod jack, it is critical to raise and lower all jacks simultaneously to keep the aircraft level and stable. Uneven lifting can introduce structural stress or shift the aircraft’s center of gravity. The Tronair 02-1256C0111 is designed for use in coordinated lifting setups with other jacks to maintain proper balance. This approach supports safer, more controlled aircraft maintenance operations.

The ram locknut acts as a mechanical safety device that physically supports the load once the aircraft is lifted. Even if hydraulic pressure is lost, the locknut helps prevent unintended descent. The manual emphasizes lowering the locknut as the aircraft is raised to ensure continuous protection. This added layer of safety is essential when technicians are working around or under the aircraft.

The optional air pump allows the jack to be powered by a compressed air supply, reducing manual effort during lifting. This is especially beneficial in maintenance facilities where frequent jacking operations are required. With a recommended air supply of 90 to 100 PSI, the system provides consistent lifting performance. It also helps improve productivity and reduce operator fatigue over time.

Before each use, operators should inspect the jack for loose hardware, proper fluid levels, and any visible signs of wear or leaks. The manual recommends checking hydraulic fluid levels with the ram fully collapsed and ensuring all components are secure. Verifying these conditions helps prevent operational issues during lifting. Routine inspections are a key part of maintaining safe and reliable performance.

The locking pin secures the mechanical extension and must be correctly positioned within the ram protection ring groove. Improper placement can lead to component deformation or failure under load. The diagrams in the manual clearly show acceptable and unacceptable configurations to prevent misuse. Ensuring correct pin placement helps maintain structural integrity and safe lifting conditions.

Keeping the hydraulic system clean and properly filled with MIL-PRF-5606 fluid is essential for consistent operation. The manual recommends flushing contaminated fluid and replacing worn seals to prevent leaks and pressure loss. Regular maintenance helps ensure smooth ram movement and reliable lifting capacity. It also extends the service life of the tripod jack and reduces downtime.

The Tronair 02-1256C0111 is designed to operate within a temperature range of -4°F to 122°F, making it suitable for a wide range of maintenance environments. It should always be used on a clean, dry, and level surface to ensure stability. Operating within these conditions helps maintain consistent hydraulic performance. It also reduces the risk of component wear or failure caused by environmental factors.

Annual load testing verifies that the jack can safely handle its rated capacity plus a small margin, typically up to 110%. This process helps identify any hidden issues such as seal wear, pressure loss, or structural fatigue. Regular testing ensures the jack continues to meet safety and performance standards. It is a best practice for maintaining compliance in aviation maintenance operations.

For proper storage, the jack should be kept with the ram fully retracted and stored in a clean, dry environment. If stored outdoors, it should be covered with a waterproof tarp to protect against moisture and debris. The manual also recommends keeping the temperature within the specified range during storage. Proper storage helps prevent corrosion, contamination, and premature wear of hydraulic components.
