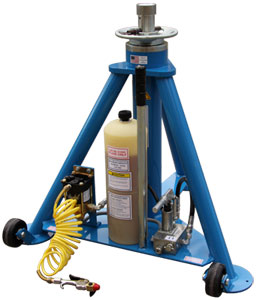

Tronair 02A7899C0100 – 12-Ton Tripod Jack, Air Pump

The single-stage hydraulic design of the Tronair 02A7899C0100 provides smooth, controlled lifting performance for aircraft maintenance operations. This configuration simplifies operation while delivering reliable vertical lifting capability for fuselage and wing jacking applications. The positive locking capability at any extension height also helps improve stability during inspections, tire changes, and landing gear servicing. These features make the jack well-suited for busy aviation maintenance environments.

The integrated pneumatic air pump allows technicians to raise the jack more quickly compared to manual pumping alone. This can help reduce physical effort and speed up aircraft positioning during maintenance procedures. The air-powered operation is especially useful in MRO facilities and hangars where compressed air systems are readily available. Tronair also designed the system with a hold-to-run air valve for added operational control and safety.

The hold-to-run air valve requires the operator to actively hold the control lever during ram extension, helping prevent unintended jack movement. Once the operator releases the lever, the upward ram travel immediately stops. This design helps provide better control during aircraft lifting operations and reduces the risk of accidental overextension. It is an important safety feature for technicians working around elevated aircraft.

The ram protection ring helps ensure the locking pin is properly placed during mechanical extension setup. Proper pin positioning helps prevent deformation, instability, or premature component wear while the aircraft is elevated. Tronair’s manual includes detailed illustrations showing both correct and incorrect locking pin placement to reinforce safe operating practices. This feature helps support long-term jack reliability and safer maintenance procedures.

The Tronair 02A7899C0100 offers a minimum closed height of 32” and a maximum height of 56”, making it adaptable to a range of aircraft jacking requirements. This operating range helps technicians position the jack more easily under approved lifting points while still achieving the necessary extension for maintenance access. The compact storage height also supports easier transportation and hangar storage. These characteristics make the jack practical for both fixed-base operators and larger maintenance facilities.

Annual load testing helps verify that the aircraft jack can safely perform within its rated operating capacity. Tronair recommends testing the jack between 105% and 110% of its rated load to confirm proper hydraulic and structural performance. Routine testing can help identify worn seals, pressure issues, or component fatigue before they affect maintenance operations. Consistent inspections also support safer aircraft lifting procedures and regulatory compliance.

The built-in velocity fuse helps prevent uncontrolled ram descent in the event of a hydraulic line failure. If a hydraulic issue occurs, the fuse automatically restricts lowering movement to help protect both the aircraft and nearby personnel. After repairs are completed, the system can be reset by pumping the hand pump until the ram rises again. This additional safeguard is an important part of safe aircraft jacking operations.

Tronair recommends storing the aircraft tripod jack with the ram fully lowered to help protect hydraulic components and seals. The jack is suitable for outdoor storage when covered with a waterproof tarp or canvas, making it practical for ramp operations and mobile maintenance teams. For low-usage periods exceeding 90 days, the manual recommends applying a compatible water-repellent lubricant to exposed ram surfaces. Proper storage practices can help maximize service life and reduce maintenance needs.

The Haskel pneumatic hydraulic pump system used on the 02A7899C0100 is designed to deliver smooth hydraulic pressure while minimizing manual effort. Pneumatic pumps are widely used throughout the aviation industry because they offer reliable operation and efficient fluid transfer under varying maintenance conditions. The recommended operating pressure of 40 PSI helps balance lifting performance and controlled operation. This design contributes to more efficient aircraft maintenance workflows.

Aircraft jacking operations require trained technicians who understand both the aircraft manufacturer’s lifting procedures and the jack’s operating guidelines. Tronair specifically notes that operators should be familiar with hydraulic systems, aircraft balance requirements, and simultaneous multi-jack lifting procedures. Proper training helps reduce the risk of uneven lifting, structural stress, or improper jack placement. Skilled operation is essential for maintaining aircraft safety during maintenance and inspections.
