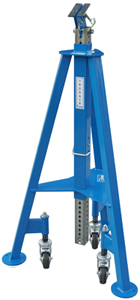

Tronair 03A5817C0000 Tail Stand with Alarm for Cessna Citation X 750 Aircraft
In Stock
Ready to ship tomorrow if you order in the next 18 hours and 4 minutes (2pm EST)
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
The Tronair 03A5817C0000 Citation X 750 Aircraft Tail Stand is used to support an airplane by its fuselage during maintenance, whose maximum load does not exceed the rated capacity of the tail stand. This unit is specifically intended for use on the Cessna Citation X 750 aircraft.
The tail stand is equipped with an alarm system that alerts the operator when a force of 100 to 150 lbs (45.4 to 68 kg) is applied to the top of the cradle. The unit attached to the tail stand sounds a loud 85 dB pulsating alarm until the force is reduced.
Standard Features
- Stabilizes the aircraft when lifting with tripod jacks
- Padding is included on all adapters that may come in contact with the aircraft's skin
- Welded steel tripod structure offers a sturdy and stable platform
- Casters allow for easy maneuverability
- Quick-action mechanical extension
- Wide range of interface adapters
- CE marked
- Durable powder-coat finish (Tronair Blue)
Specifications
- Temperature Range: 40°F to 100°F (4°C to 38°C)
- Minimum Closed Height: 51.4" (130.6 cm)
- Extended Height: 72" (182.9 cm)
- Weight: 80 lbs (36.3 kg)
- Alarm (Battery-Powered): 9V DC
- Alarm Horn: 85 dB
| Alternate Models | |
|---|---|
| 03-5817-0000 | Previous Model Number |
| 03-5817C0000 | Previous Model Number (CE) |
| General Information | |
|---|---|
| Part # | 03A5817C0000 |
| Manufacturer | Tronair |
| Manual 1 | View Tronair 03A5817C0000 Parts and Operation Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 344 lbs. |
| Shipping Dimensions | 39 x 35 x 65 in. |
| Freight NMFC | 178160 |
| Schedule B | 8431100090 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| EC-1180-04 | TERMINAL, RING TONGUE |
| EC-1796 | SWITCH, LIMIT |
| EC-1854 | BATTERY, 9 VOLT |
| G-1155-105210 | SCREW, SOC HD SHOULDER 5/16 X 1 |
| G-1159-103505 | SCREW, RND HD CROSS REC #10 – 32 X 5/8 LG |
| G-1163-10 | SCREW, HEX SOC CUP PINT SET ¼ - 20 |
| G-1202-1035 | ESN #10 – 32 |
| G-1203-1105 | EJN, 5/8 – 18 |
| G-1250-1030N | FLATWASHER, #10 NARROW |
| G-1250-1100N | FLATWASHER, 5/8 NARROW |
| G-1250-1110W | FLATWASHER, ¾ WIDE |
| G-1493 | PIN 3/8 X 3 LG |
| G-1508 | WIRE CLIP |
| H-1026*07.0 | ASSEMBLY, LANYARD |
| H-1128-02 | SPRING |
| H-1901-01 | GROMMET |
| H-2762 | SPRING, LIGHT DUTY DIE |
| H-5136 | ALARM |
| S-1967-01 | COVER, SWITCH |
| TR-1883 | BASE |
| TS-1533-00 | TUBE, EXTENSION |
| U-1053 | CASTER, STEM |
| V-1001 | LABEL, MADE IN USA |
| V-1003 | LABEL, SERIAL NUMBER |
| V-1197-01 | LABEL, TRONAIR |
| V-1198 | LABEL, TRONAIR |
| V-2065 | LABEL, TRONAIR |
| Z-3041 | ASSEMBLY, CRADLE |
| Z-6021-01 | WELDMENT, OUTER TUBE |
| Z-6946-01 | WELDMENT, TAILSTAND |
Customers also viewed
32" to 75", CE-Marked – Select Cessna/ATR Aircraft
40" to 78", CE-Marked, Aft Fuselage
Tail Stand for Cessna Citation X 750 Aircraft
CE-Marked – Citation Sovereign / X 750 Nose Jack with Air Pump
15 GPM, 3500 PSI, 25 HP
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Cessna | Citation X 750 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
