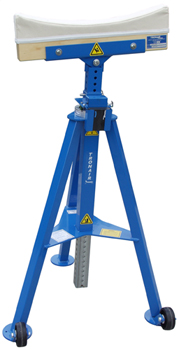

Tronair 03A5831-0000 Tail Stand with Alarm for Citation Sovereign 680 Aircraft
In Stock
Ready to ship tomorrow if you order in the next 17 hours and 6 minutes (2pm EST)
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
The Tronair 03A5831-0000 Citation Sovereign 680 Aircraft Tail Stand is used to support an airplane by its fuselage during maintenance, whose maximum load does not exceed the rated capacity of the tail stand. This unit is specifically intended for use on the Cessna Citation Sovereign 680 aircraft.
This tail stand is outfitted with an alarm system that alerts the operator when a force of 100 to 150 lbs (45.4 to 68 kg) is being applied to the top of the cradle. The unit attached to the tail stand sounds a loud 85 dB pulsating alarm until the force is reduced.
Standard Features
- Stabilizes the aircraft when lifting with tripod jacks
- Padding is included on all adapters that may come in contact with the aircraft's skin
- Welded steel tripod structure offers a sturdy and stable platform
- Dual casters allow for easy maneuverability
- Quick-action mechanical extension
- Wide range of interface adapters
- Durable powder-coat finish (Tronair Blue)
Specifications
- Temperature Range: 40°F to 100°F (4°C to 38°C)
- Minimum Closed Height: 48" (121.9 cm)
- Mechanical Extension: 27" (68.6 cm)
- Maximum Height Obtainable: 75" (190.5 cm)
- Weight: 66 lbs (30 kg)
- Alarm (Battery-Powered): 9V DC
- Alarm Horn: 85 dB
| General Information | |
|---|---|
| Part # | 03A5831-0000 |
| Manufacturer | Tronair |
| Manual 1 | View Tronair 03A5831-0000 Service, Parts, and Operation Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 200 lbs. |
| Shipping Dimensions | 40 x 38 x 59 in. |
| Freight NMFC | 178160 |
| Schedule B | 8431100090 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| EC-1796 | Limit Switch |
| G-1100-107536 | Bolt, Hex Head Grade 5, 3/8 -24 x 3 ¾" long |
| G-1100-10926 | Bolt, Hex Head Grade 5, ½-20 x 2 ¾" long |
| G-1100-109522 | Bolt, Hex Head Grade 5, ½-20 x 2 ¼" long |
| G-1202-1075 | Stopnut, 3/8 -24 Elastic |
| G-1202-1095 | Stopnut, ½-20 Elastic |
| G-1203-1095 | Jamnut, ½-20 Elastic |
| G-1250-1070W | Flatwasher, 3/8" Wide |
| G-1250-1090N | Flatwasher, ½" Narrow |
| G-1493 | Lock Pin |
| H-1026*07.0 | Cable Assembly |
| K-1165 | Kit, Wheel Replacement |
| K-3801 | Kit, Cradle Assembly Replacement; consists of: |
| K-3864 | Alarm Replacement Kit |
| K-3912 | Kit, Center Extension Replacement; consists of: |
| K-3913 | Kit, Cradle Assembly Replacement; consists of: |
| U-1002 | Wheel |
| Z-5723 | Assembly, Cradle |
| Z-6079 | Weldment, Cradle Support |
| Z-6082 | Weldment, Center Extension |
Customers also viewed
for Select Bombardier & Dassault Aircraft
for Select Embraer Aircraft
for Cessna Citation 560 XL, 560 XLS, & Ascend Aircraft
for Dassault Falcon 7X & 8X Aircraft
for Dash 8-400 Aircraft
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Cessna | Citation Sovereign 680 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
