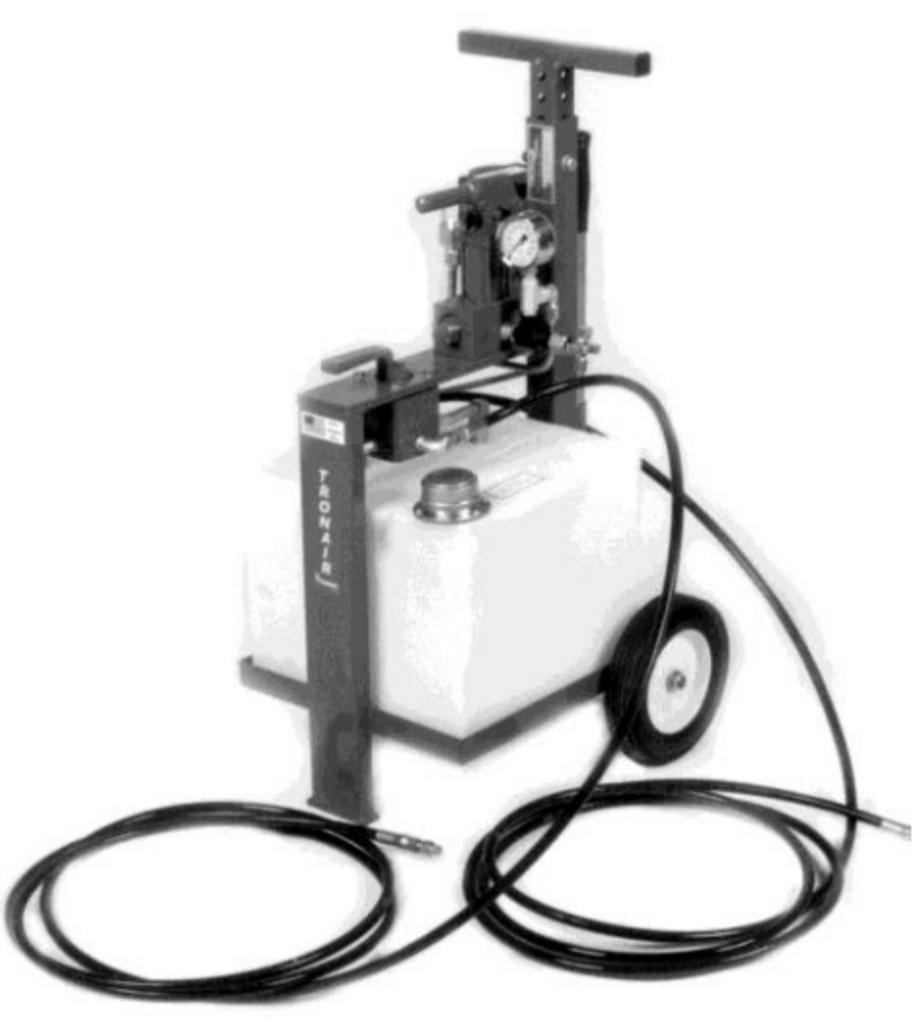

Tronair 06-5004C3600-A1 – Hydraulic Component Test Cart – 8-Gallon Capacity, Max. 5,000 psi (CE)
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?
The Tronair 06-5004C3600-A1 is a compact fluid service unit designed to provide a source of clean, pressurized fluid for filling reservoirs, bleeding brakes, and other maintenance functions.
Standard Features
- 15-ft. (4.6 m) hoses
- Shutoff valve for component testing
- 5,000 psi high/low pump provides high-flow and high-pressure capability
- 5,000 psi pressure gauge
- 4-way valve for testing double-acting cylinder
Specifications
- Tank Capacity: 8 gallons (30.3 liters)
- Maximum Pressure: 500/5,000 psig
- Fluid: Phosphate Ester
- Filtration: 2-Micron
- Weight: 65 lbs. (29.5 kg)
| General Information | |
|---|---|
| Part # | 06-5004C3600-A1 |
| Manufacturer | Tronair |
| Manual 1 | View Tronair 06-5004C3600-A1 Manual |
| Shipping Information | |
|---|---|
| Product Weight | 90 lbs. |
| Product Dimensions | 36 x 25 x 28 in. |
| Schedule B | 8413110000 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| 09-ADDF-04-20 x 56 | Tie Rod |
| 09-AYDF-06-16X03 | Lock Screw |
| 505-001 | Plug, Valve Body |
| 508-000 | Pivot (part of SRK-PL-000) |
| 509-C00 | Handle Bracket (part of SRK-PL-000) |
| 510-001 | Pin Linkage Assembly (part of SRK-PL-000) |
| 512-000 | Strap (part of SRK-PL-000) |
| 514-034 | Spring, Outlet Check |
| 516-120 | Spring, Ball Check |
| 517-000 | Ball, Outlet Check |
| 519-0000 | Roll Pin |
| 531-000 | Clevis Pin Assembly (part of SRK-PL-000) |
| 560-120 | Valve Body |
| 562-125 | Piston – High Pressure |
| 563-121 | Tube |
| 564-120 | Retainer Plate |
| 566-125 | Piston – Low Pressure |
| 569-120 | Ball – Bypass |
| 570-120 | Spring – Bypass |
| 571-121 | Piston – Bypass |
| 573-120 | Spring – Intake Low Pressure |
| 577-120 | Spring, Outlet – Low Pressure |
| 582-120 | Flange, Retaining |
| 583-120 | Plug |
| CXD-000003-001 | Body |
| CXD-000003-002 | Screw, Release |
| CXD-000003-004 | Release Screw Retainer |
| CXD-110028-003 | Relief Assembly, 5000 psi |
| H-1009-01 | Handle, Pump |
| H-1802 | Tank |
| HC-1030 | Breather |
| HC-1042 | Gauge, Pressure |
| HC-1046-01 | Valve, Selector |
| HC-1082 | Handle, Valve |
| HC-1084 | Assembly, Pressure Filter |
| HC-1101-02 | Valve, Shut-Off |
| HC-2006-011 | O-Ring |
| HC-2006-136 | O-Ring, Series 2 |
| HC-2006-138 | O-Ring, Bowl |
| HC-2557 | Pump, Hand |
| K-1415 | Element, Filter |
| TF-1030-01*03.5 | Hose, Valve Return |
| TF-1030-01*10.0 | Hose, Pump Suction |
| TF-1041-65-180 | Assembly, Hose (not shown) |
| U-1001-01 | Wheel |
| V-1100 | Label – Fluid Type |
| Z-1083-01 | Handle, Unit |
| Z-1201-01 | Frame |
Customers also viewed
2-Gallon Hydraulic Reservoir Service Unit – Skydrol/PE, Type IV Fluids
30" to 64", CE-Marked
Skydrol Fluid Service Unit (CE) - 8 Gallon - 5000 PSI - Dual Hose Selector Valve
8,000 lbs DBP - AWD Standard - Available in Gas, LPG
2-Gallon Turbine Oil Dispenser
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Embraer | E175-E2 , ERJ-175 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
