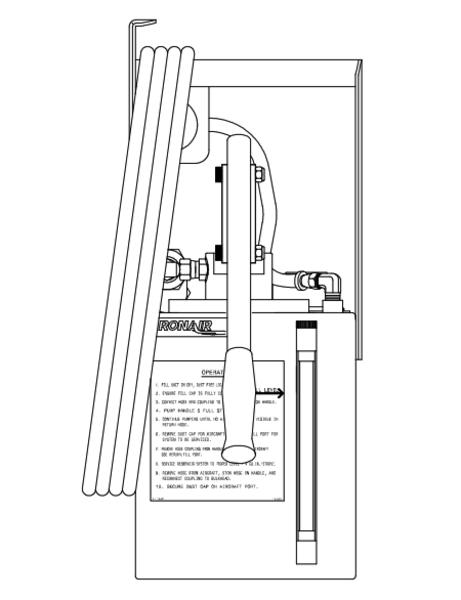

The Tronair 06-5082-6700 is a 2 gallon reservoir service unit for MIL-PRF-87257.
This unit is a commercial unit with features added to support the control of contamination in aircraft hydraulic systems through the servicing process. There are three primary contaminants for hydraulic fluid; dirt, air, and water. The unit will remove dirt, metal, or other solid particles with a 2 micron filter located in the output (servicing) line. Re-circulating the fluid, prior to servicing, removes particulate contamination from the servicing line and couplings. This will also remove air, which will be visible in the transparent return hose. Pressure and vacuum valves in the reservoir fill cap minimize tank breathing and thereby control the entry of water into the fluid.
Specifications
- Weight: Approximately 18 lbs (8.2 kg) Dry
- Height: 21 in (53.3 cm)
- Width (Overall): 10 ¼ in (26 cm)
- Depth (Overall): 14 3/8 in (36.5 cm)
- Fluid: MIL-PRF-87257 (Viton)
- Filtration: 2 micron inline filter with replaceable element
- External Hose: 15 ft (4.6 m) 0.25 in (6.35 mm) I.D.
- Reservoir: Sealed, 2 g (7.6 liter) capacity, stainless steel tank, with carrying handle
- Pump: 4 cubic in (65.5 cu cms) per stroke (cycle). Maximum output pressure rating is 200 psi (13.8 bar).
Features
- 8-inch (20.3 cm) sight glass for easy detection of fluid level.
- Sealed fill cap with pressure relief and vacuum breaker valves.
- Transparent return line for purging air from system prior to servicing aircraft.
| General Information | |
|---|---|
| Part # | 06-5082-6700 |
| Manufacturer | Tronair |
| Manual 1 | View Tronair 06-5082-6700 Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 25.2 lbs. |
| Shipping Dimensions | 23 x 17 x 15 in. |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| 08-ADFH-04-28 | Prevailing Locknut |
| 09-ADDF-0J-32 x 14 | Socket Head Cap Screw |
| 09-AHDF-06-18 x 04 | Shoulder Screw |
| 512-000 | Strap |
| CENT-TA-2098 | Spring |
| CXD-020004-001 | End Cap, Blind End |
| CXD-020004-002 | Cap & Mounting Flange |
| CXD-020004-003 | Tube |
| CXD-020004-004 | Piston Rod |
| CXD-020004-005 | Piston |
| CXD-020004-006 | Flapper |
| CXD-020004-009 | Mounting Block |
| CXD-020057-001 | Grip, Handle |
| G-1157-103506 | Screw, #10-32 Pan Hd Crs Rec |
| G-1250-1070N | Flatwasher, 3/8 Narrow |
| G-1463-1070 | Nut, 3/8-16 Acorn Hex |
| HC-2007-011 | O-ring, Series 2 |
| HC-2007-334 | O-ring (Pump Mounting Gasket) |
| HC-2014-914 | O-ring, Series 3 |
| HC-2141 | Filter, In-Line (Viton) |
| HC-2142 | Element, Filter |
| HC-2166 | Filler-Breather |
| HC-2171 | Pump, Hand (Viton) |
| HC-2212-08 | Gauge, Sight |
| HK-3715 | Kit, Pump Seal Replacement |
| HK-3768 | Kit, Handle Replacement |
| K-3659 | Kit, Filter Element |
| N-2001-05-S-B | Elbow, Straight Thread |
| N-2001-08-S-B | Elbow, Straight Thread |
| N-2005-03-S | Elbow, Swivel Nut |
| N-2005-04-S | Elbow, Male |
| N-2026-01-S | Swivel, JIC 37° Hose Fittings |
| N-2036-03-S-B | Swivel, Female 37° |
| N-2061-01 | Union, Bulkhead |
| TF-1105-04*180 | Assembly, Hose |
| TF-1136-10*10.5 | Hose, Clear Vinyl Tubing |
| V-2027 | Label, MIL-PRF-87257 |
| Z-5578 | Weldment, 2 gal (7.6 lt) Container |
| Z-5677 | Assembly, Can Opener with Lanyard |
