Tronair 08-2030-0000 Turbine Engine Work Stand – Select Garrett and Pratt & Whitney Engines
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

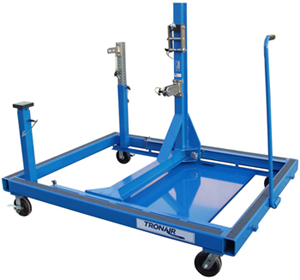

The Tronair 08-2030-0000 Turbine Engine Work Stand allows mechanics easy access to any part of an aircraft's engine system during engine inspection and maintenance procedures. A three-point mounting system via front mounting pads and a rear support post into the engine stand make access to the engine possible.
The stand allows full engine access for maintenance by utilizing the same attach points used on the aircraft. In order to adapt the engine to the stand, the appropriate adapter kit must be used.
Standard Features
- Heavy-duty welded steel construction
- Two swivel casters and two rigid heavy-duty casters for easy maneuverability
- Rigid caster wheel brakes allow you to lock the stand into a fixed position
- Convenient oil pan captures excess fluid to avoid damage to hangar floors
- Easily converted to accept left- and right-hand engines
- Multiple engine adaptability (engine adapter kits sold separately)
- Removable towbar with storage hooks
- Adapters change in minutes
- CE marked
- Durable powder-coat finish (Tronair Blue)
Specifications
- Weight: 485 lbs (220 kg)
- Length: 73.5" (186.7 cm) (without towbar)
- Width: 55" (139.7 cm)
- Height: 60.3" (153 cm)
Optional Engine Adapter Kits
| General Information | |
|---|---|
| Part # | 08-2030-0000 |
| Manufacturer | Tronair |
| NSN | 4920015385422 |
| Manual 1 | View Tronair 08-2030-0000 Manual |
| Shipping Information | |
|---|---|
| Shipping Weight | 854 lbs. |
| Shipping Dimensions | 85 x 68 x 69 in. |
| Freight NMFC | 186600 |
| Schedule B | 8425420000 |
| ECCN | EAR99 |
| Spare Parts | |
|---|---|
| G-1100-107506 | Hex-Head Bolt, Grade 5, 3/8-24 |
| G-1100-107536 | Hex-Head Bolt, Grade 5, 3/8-24 |
| G-1155-107250 | Socket-Head Shoulder Screw, 1/2" diameter |
| G-1202-1070 | Elastic Stop Nut, 3/8-16 |
| G-1202-1075 | Elastic Stop Nut, 3/8-24 |
| G-1202-1095 | Elastic Stop Nut, 1/2-20 |
| G-1250-1070N | Narrow Flat Washer, 3/8" |
| G-1250-1090N | Narrow Flat Washer, 1/2" |
| G-1251-1070R | Regular Lock Washer, 3/8" |
| G-1300-13100 | Roll Pin, 1/8" diameter x 1" long |
| G-1310-0435 | Ball-Lock T-Pin, 1/4" diameter x 3.5" long |
| G-1310-0630 | Ball-Lock T-Pin, 3/8" diameter x 3" long |
| G-1395-02 | External Retaining Ring |
| G-1420-107516 | Hex-Head Bolt, Grade 8, 3/8-24 |
| H-2165 | Modified Handle |
| H-2167 | Hand Knob Assembly |
| J-2711 | Bolt Plate |
| J-2713 | Slide Block |
| K-2335 | Rigid Caster Replacement Kit |
| K-2336 | Swivel Caster Replacement Kit |
| K-2771 | Pivot Support Replacement Kit |
| K-2772 | Lower Support Replacement Kit |
| K-2773 | Rear-Mount Replacement Kit |
| K-2774 | Brake Pin Replacement Kit |
| K-2775 | Roller Pin Replacement Kit |
| R-1772 | Roller |
| R-1773 | Roller Pin |
| R-1774 | Brake Pin |
| TS155-01*030.00 | Tube |
| U-1056 | Rigid Caster |
| U-1057 | Swivel Caster |
| Z-2822 | Handle Assembly |
| Z-3769-01 | Base Weldment |
| Z-3776-01 | Beam Weldment |
| Z-3806 | Lower Support Assembly |
| Z-3807 | Pivot Support Assembly |
| Z-3808 | Rear Support Assembly |
| Z-3810 | Oil Pan Assembly |
| Z-5033 | Bumper Pad Assembly |
Customers also viewed
Engine Work Stand with Rotating Base
for Select Cessna, Gulfstream, Hawker, & Lockheed Aircraft
Propeller Stand for BAe Jetstream 500 Aircraft
Aircraft Engine Stand for Rolls-Royce AE-3007-C Engines
Propeller Stand Base for Select Cessna & Hawker Beechcraft Aircraft
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Bombardier |
,
Learjet 23
NOTE
An adapter kit (K-2770) is required for this work stand.
,
Learjet 24
NOTE
An adapter kit (K-2770) is required for this work stand.
,
Learjet 25
NOTE
An adapter kit (K-2770) is required for this work stand.
,
Learjet 31
NOTE
An adapter kit (K-2770) is required for this work stand.
,
Learjet 31A
NOTE
An adapter kit (K-2770) is required for this work stand.
,
Learjet 35
NOTE
An adapter kit (K-2770) is required for this work stand.
,
Learjet 45
NOTE
An adapter kit (K-2808) is required for this work stand.
,
Learjet 55
NOTE
An adapter kit (K-2770) is required for this work stand.
,
Learjet 70
NOTE
An adapter kit (K-2808) is required for this work stand.
,
Learjet 75
NOTE
An adapter kit (K-2808) is required for this stand.
|
| Cessna |
Ascend
NOTE
An adapter kit is required for use with this stand.
,
Bravo
NOTE
An adapter kit – K-2685 for PW530-A engines, K-2776 for JT-15D engines – is required for use with this stand.
,
Citation 560 XL
NOTE
An adapter kit (K-2769) is required to use this stand.
,
Citation 560 XLS
NOTE
An adapter kit (K-2769) is required to use this stand.
,
Citation 650
NOTE
An adapter kit – K-2770 for TFE-731 engines, K-2808 for TFE-731-20 engines – is required for use with this stand.
,
Citation I 500
NOTE
An adapter kit – K-2685 for PW530-A engines and K-2776 for JT15D engines – is required to use this stand.
,
Citation I/SP 501
NOTE
This stand requires the use of an adapter kit – K-2685 for PW530A engines or K-2776 for JT-15D-1 engines.
,
Citation II 550
NOTE
An adapter kit – K-2685 for PW530-A engines and K-2776 for JT15D engines – is required for use with this stand.
,
Citation III
NOTE
An adapter kit – K-2770 for TFE-731 engines, K-2808 for TFE-731-20 engines – is required for use with this stand.
,
Citation SII
NOTE
An adapter kit – K-2685 for PW530-A engines or K-2776 for JT15D engines – is required for use with this stand.
,
Citation Ultra 560
NOTE
An adapter kit – K-2776 for JT15D-5D engines, K-3068 for PW535 engines – is required for use with this stand.
,
Citation V
NOTE
An adapter kit – K-2685 for PW530-A engines, K-2776 for JT15D-5D engines – is required for use with this stand.
,
Citation VI
NOTE
An adapter kit – K-2770 for TFE-731 engines, K-2808 for TFE-731-20 engines – is required for use with this stand.
,
Citation VII
NOTE
An adapter kit – K-2770 for TFE-731 engines, K-2808 for TFE-731-20 engines – is required for use with this stand.
|
| Dassault |
Falcon 10-100
NOTE
An adapter kit (K-2770) is required for use with this stand.
,
,
Falcon 50EX
NOTE
Adapter kit required – K-2770 for TFE731-3 engines, K-2108 for TFE731-40 engines.
|
| Hawker Beechcraft |
Beechjet 400A
NOTE
An adapter kit (K-2776) is required for this work stand.
,
,
Hawker 1000
NOTE
An adapter kit (K-2770) is required for this work stand.
,
HS-125 400 Series
NOTE
An adapter kit (K-2770) is required for this work stand.
,
HS-125 800 / 850 / 900 Series
NOTE
An adapter kit (K-2770) is required for this work stand.
,
T-1 Jayhawk
NOTE
An adapter kit (K-2770) is required for this work stand.
,
|
| IAI | Astra , Westwind 1 , Westwind 2 |
| Sabreliner | , , |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
Question:
What is the weight capacity of the Tronair 08-2030-0000 Turbine Engine Work Stand?
Answer:
The Tronair 08-2030-0000 Turbine Engine Work Stand has a working load capacity of 1,500 lbs (680 kg). Because the stand is kit- and engine-dependent, it requires the proper adapter kit to safely support specific turbine engine models. Using the correct kit ensures optimal stability, load distribution, and compliance with OEM specifications during maintenance or storage.
Asked November 4, 2025
