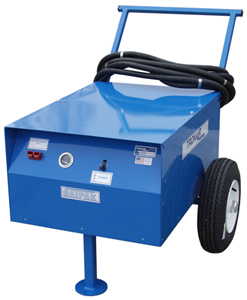

The Tronair 11-6602-1000 Batpak Battery Cart is a completely portable, self-contained 24V DC ground power unit (GPU).
Electrical power is provided by six (6) 12-volt high-cycle lead-acid batteries grouped to provide 24 volts of DC power.
Standard Features
- Delivers 1,000 amps starting power
- Rugged welded steel construction
- 24V DC output
- 20-ft. (6.1 m) DC output cable with AN2551 connector
- Soft start protects avionics from voltage spikes
- 10" (25 cm) pneumatic tires
- Voltmeter is provided to give the status of the battery's condition
- Main power switch controls electric power to the aircraft power cable
- Charger connector receptacle makes battery recharging convenient
- Contains 6 heavy-duty, maintenance-free, lead-acid batteries, with 950 cold cranking amps each at 0°F (-18ºC)
- Powder-coat finish (Tronair Blue)
Specifications
- Output (Batteries Fully Charged): 1,800 amps peak
- Length: 33" (84 cm)
- Width: 35" (89 cm)
- Height: 24" (61 cm)
- Weight: 465 lbs. (211 kg)
| General Information | |
|---|---|
| Part # | 11-6602-1000 |
| Manufacturer | Tronair |
| Manual 1 | View Tronair 11-6602-1000 Manual |
| MSDS 1 | View Safety Data Sheet |
| Shipping Information | |
|---|---|
| Product Weight | 720 lbs. |
| Product Dimensions | 64 x 44 x 35 in. |
| Freight NMFC | 61700 |
| Schedule B | 8511400000 |
| ECCN | EAR99 |
| Hazmat/Dangerous Goods | Yes |
| MSDS 1 | View Safety Data Sheet |
| Accessories/Kits/Adapters | |
|---|---|
| 92-0552-9000 | Battery Charger (60 Hz) |
| 92-0552-9001 | Battery Charger (50 Hz) |
| Spare Parts | |
|---|---|
| 92-0552-9000 | CHARGER, BATTERY 60HZ |
| 92-0552-9001 | CHARGER, BATTERY 50HZ |
| EC-1037 | VOLTMETER |
| EC-1038 | SWITCH, TOGGLE |
| EC-1039 | ASSEMBLY, CONN & CABLE |
| EC-1040 | CONNECTOR, CABLE |
| EC-1124*240 | CABLE, ELECTRICAL 4/0 (20 FEET |
| EC-1656 | BATTERY, 12 VOLT |
| G-1230-01 | NUT, AXLE 1 |
| G-1301-03 | PIN, 1/8 X 1-1/2 LG COTTER |
| H-1156 | SEAL, GREASE (D) |
| H-1157 | BEARING, WHEEL (D) |
| J-1177 | BAR, CONNECTOR |
| U-1010 | ASSEMBLY, TIRE/WHEEL |
| Z-1204 | WELDMENT, AXLE |
Customers also viewed
– Nickel-Cadmium, Lead-Acid, & Other Rechargeable Batteries
Single-Output 28V DC Rectifier (GPU) – 60 Hz – 600A Continuous, 2000A Peak Start
Towable Gas GPU – 28V DC, 150A Continuous / 1000A Peak
90 kVA Dual 400 Hz AC & 28V DC Diesel GPU
Single-Output 28V Aircraft GPU – 60 Hz – 208V to 480V – 100' Input Cable – 20' Output Cable
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Adam | A500 , A700 |
| Bell | 204 , 205 , 206B3 , 206L4 , 206LT , 212 , 214 , 214ST , 222 , 230 , 407 , 407GX , 412 , 430 , CH-139 , OH-58 , TH-67 , UH-1 , UH-1H |
| Diamond Aircraft | DA20-A1 , DA20-C1 , DA40 Diamond Star |
| Eurocopter | BK-117 , BO-105 , H135 (EC135) , H145 (EC145) , UH-72A Lakota |
| Sikorsky | CH-148 , H-92 Superhawk , S-65 (CH53, HH53, MH53, Sea Stallion) , S-76 (AUH-76) , S-92 |
| Sino Swearingen | SJ30-2 |
*This list is for general reference only and may not be entirely accurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.
