Hydraulic Power Unit (HPU) - Tronair 5740

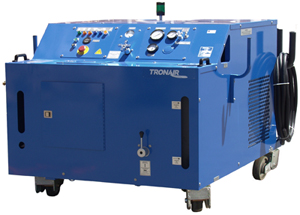

Tronair 5740
Manufacturer: Tronair
Part Number: 5740
Condition: New

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Aircraft:
Hanger/Input Voltage:
Do You Need Quick Disconnects?
Name:
E-Mail:
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
6 GPM, 3000 PSI, 10 HP - JPATS
15 GPM, 3500 PSI, 25 HP
15GPM / 3500 PSI HPU on 480V/3PH/60HZ
Sovereign HPU - 15GPM / 3500 PSI HPU on 480V/3PH/60HZ
34 GPM, 3500 PSI, 40 HP - 87257 Fluid

This Tronair Hydraulic Power Unit (Series 5740) uses MIL-PRF-87257 fluid with an output of 34 gallons per minute on 60Hz and 28 gallons per minute on 50Hz. Output pressure is from 250 to 3500 psi (max). Quick Disconnects are available as an option for each particular aircraft (if needed). The CE compliant version is also available (please specify in the comments).

Available Options
The following are the options available for the Tronair 5740 HPU. Please specify which options you would like (if any) in the comments box when submitting your HPU quote.

Option B - 50 ft (15.2 m) Hoses
Option C - Dual System
Option H - Voltage Monitor (380 Vac)
Option I - Voltage Monitor (415/460 Vac)
Option J - Voltage Monitor (575 Vac)
Option L - Electronic Reservoir Sensor
Option M - Hand Pump
Option N - Towing/Trailer Package
Option U - Return Sight Glass
Option Y - Dual Return Sight Glass

Standard Features:
  • Adjustable working pressure
  • 3 phase, electric motor available in 6 voltages (50 or 60 Hz)
  • Adjustable pressure compensated, variable volume, piston pump
  • 70 gal (265 l) stainless steel reservoir with desiccant air filtration canister
  • Large oil cooler with 3 phase electric fan (38,000 btu/hr cooling capacity)
  • High efficiency, non-bypassing pressure filter with 2-micron absolute, Microglass III element (Beta rating > 200 based on ISO 4572)
  • Large capacity return filter with 5 micron absolute, Microglass III element (Beta rating > 300 based on ISO 4572)
  • Easy access fluid sampling valve (meets ANSI T2.24.1-1991)
  • 2-48 gpm (8-180 lpm) dual scale flow meter
  • Dual scale pressure gauge
  • Standard 25 ft (7.62 m) pressure and return hoses
  • Standard 50 ft (15.24 m) input power cord without input plug
  • High Fluid temperature (>160° F) shut off switch with LED indicator light
  • 30-240° F (0-115° C) dual scale pyrometer
  • Hour meter
  • Finish: Durable Powder Coat Tronair Blue
  • Length: 82 in (208 cm)
  • 89 in (226 cm) with option N - Towing Trailer Package
  • Width: 63.75 in (162 cm)
  • 70.75 in (180 cm) with option C - Dual System
  • Height: 62 in (158 cm)
  • 70.5 in (180 cm) with option N - Towing Trailer Package


Specifications
Pressure Gauge Max6000 (410) psi (bar)
Pump Flow (60 Hz)34 (129) gpm (lpm)
Pressure Hose16 (1") size
Pump Flow (50 Hz)28 (107) gpm (lpm)
Weight3500 (1588) lb (kg)
FluidMIL-PRF-87257
Motor75 (56) hp (kW)
Pressure250-3500 (17.2-241) psi (bar)
Return Hose24 (1 1/2") size
Servicing

We service the 5740 and other items like it at our facility.

A few of the common services we offer for this item are:
• Overhaul
• Repair
• Troubleshoot & Service
Parts

As an authorized Tronair Distributor, we sell factory OEM parts for the 5740. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.

A few of the common parts we offer for this item are:
• Return Hoses
• Pressure Hoses
• Hoses Inside of Unit
• Pressure Gauge
• Hand Pump Pressure Gauge
• Hand Pump
• Flow Meter
• Pyrometer
• Hourmeter
• Pressure Filter
• Return Filter
• Hand Pump Filter
• Casters
• Electrical Input Cable
Renting

We provide short-term and long-term rentals for the 5740. We will ship the item directly to you and arrange for pickup at the end of your lease.

Sell or Trade-In

We can purchase your used 5740 (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
