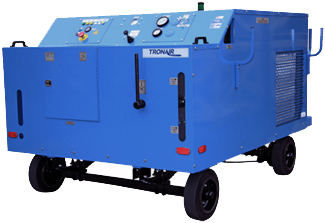

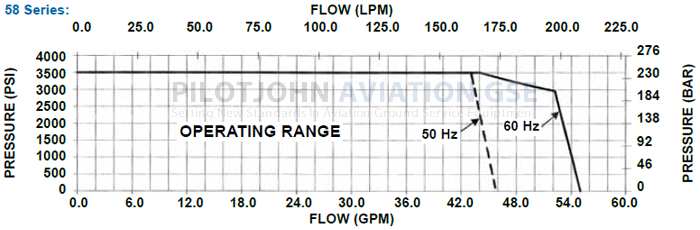

This Tronair Hydraulic Power Unit (Series 5830 (5831 CE)) uses Skydrol or Hyjet fluid with an output of 50 gallons per minute on 60Hz and 41 gallons per minute on 50Hz. Output pressure is from 150 to 3500 psi (max). Quick Disconnects are available as an option for each particular aircraft (if needed). The CE compliant version is also available (please specify in the comments).
Available Options
The following are the options available for the Tronair 5830 HPU. Please specify which options you would like (if any) in the comments box when submitting your HPU quote.
Option C - Dual System
Option H - Voltage Monitor (380 Vac)
Option I - Voltage Monitor (415/460 Vac)
Option J - Voltage Monitor (575 Vac)
Option L - Electronic Reservoir Sensor
Option M - Hand Pump
Option N - Towing/Trailer Package
- Adjustable working pressure
- 3 phase, electric motor available in 6 voltages (50 or 60 Hz)
- Adjustable pressure compensated, variable volume, piston pump
- 150 gal (568 l) stainless steel reservoir with desiccant air filtration canister
- Large oil cooler with 3 phase electric fan (48,000 btu/hr cooling capacity)
- High efficiency, non-bypassing pressure filter with 2-micron absolute, Microglass III element (Beta rating > 400 based on ISO 4572)
- Large capacity return filter with 5 micron absolute, Microglass III element (Beta rating > 300 based on ISO 4572)
- Easy access fluid sampling valve (meets ANSI T2.24.1-1991)
- 2.5-80 gpm (10-300 lpm) dual scale flow meter
- Dual scale pressure gauge
- Standard 25 ft (7.62 m) pressure and return hoses
- Standard 50 ft (15.24 m) input power cord without input plug
- High fluid temperature (>160° F) shut off switch with LED indicator light
- 30-240° F (0-115° C) dual scale pyrometer
- Hourmeter
- Electric Soft Start (optional)
- Finish: Durable Powder Coat Tronair Blue
- Length: 101 in (257 cm)
- 116 in (295 cm) with option N - Towing Trailer Package
- Width: 82 in (208 cm)
- 89 in (226 cm) with option C - Dual System
- Height: 62.5 in (159 cm)
- 71 in (181 cm) with option N - Towing Trailer Package
| Alternate Models | |
|---|---|
| 5831 | CE Compliant Version |
| 58311BJ3B | KHC-1468 Aircraft Couplers, 480V 3 PH 60 HZ Input Voltage Required, 50' Hoses, Drip Pan |
| 58311BJ3B4 | Airbus Couplers, 480V 3 PH 60 HZ Input Voltage Required, 50' Hoses, Drip Pan |
| 58331FJ3C | FJ - KHC-1468 Aircraft Couplers 3 - 440-480V 3 PH 60 HZ Input Voltage Required / 50' AC Input Cable Included C - Split System |
| Specifications | |
|---|---|
| Pressure Gauge Max | 6000 (410) psi (bar) |
| Pump Flow (60 Hz) | 50 (190) gpm (lpm) |
| Pressure Hose | 16 (1") size |
| Pump Flow (50 Hz) | 41 (155) gpm (lpm) |
| Weight | 6000 (2722) lb (kg) |
| Fluid | Skydrol or Hyjet |
| Motor | 100 (75) hp (kW) |
| Pressure | 150-3500 (10.3-241) psi (bar) |
| Return Hose | 24 (1 1/2") size |
| Compatible Aircraft* | |
|---|---|
| Airbus | A300, A310, A318, A319, A320, A321, A330-200, A330-300, A340-200, A340-300, A340-500, A340-600 |
| Airbus Military (CASA) | A330-MRTT |
| Boeing | 747, 757, 767, 777 |
| Bombardier (Regional) | CS100, CS300 |
| Lockheed | L-1011 |
| McDonnell Douglas | DC-10, MD-11 |
