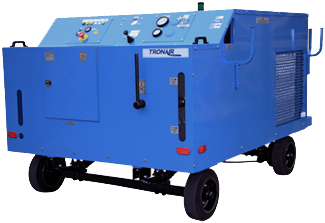

Tronair 5933 Skydrol Hydraulic Power Unit with Soft Start
In addition to selling this item as new, we also have used or refurbished of this item in stock (subject to prior sale).
Get a Quote or Ask a Question
|Do You Need Quick Disconnects?|
|Company Name:||Phone: (optional)|
This Tronair Hydraulic Power Unit (Series 5933) uses Skydrol or Hyjet fluid with an output of 50 gallons per minute on 60Hz and 41 gallons per minute on 50Hz. Output pressure is from 150 to 5000 psi (max). This series has soft start added on as a standard option. Quick Disconnects are available as an option for each particular aircraft (if needed). The CE compliant version is also available (please specify in the comments).
The following are the options available for the Tronair 5933 HPU. Please specify which options you would like (if any) in the comments box when submitting your HPU quote.
- Adjustable working pressure
- 3 phase, electric motor available in 6 voltages (50 or 60 Hz)
- Adjustable pressure compensated, variable volume, piston pump
- 150 gal (568 l) stainless steel reservoir with desiccant air filtration canister
- Large oil cooler with 3 phase electric fan (48,000 btu/hr cooling capacity)
- High efficiency, non-bypassing pressure filter with 2-micron absolute, Microglass III element (Beta rating > 400 based on ISO 4572)
- Large capacity return filter with 5 micron absolute, Microglass III element (Beta rating > 300 based on ISO 4572)
- Easy access fluid sampling valve (meets ANSI T2.24.1-1991)
- 2.5-80 gpm (10-300 lpm) dual scale flow meter
- Dual scale pressure gauge
- Standard 25 ft (7.62 m) pressure and return hoses
- Standard 50 ft (15.24 m) input power cord without input plug
- High fluid temperature (>160 degree F) shut off switch with LED indicator light
- 30-240 degree F (0-115 degree C) dual scale pyrometer
- Electric Soft Start (optional)
- Finish: Durable Powder Coat Tronair Blue
- Length: 101 in (257 cm)
- 116 in (295 cm) with option N - Towing Trailer Package
- Width: 82 in (208 cm)
- 89 in (226 cm) with option C - Dual System
- Height: 62.5 in (159 cm)
- 71 in (181 cm) with option N - Towing Trailer Package
|5932||Previous Model Number|
|5933||CE Compliant Version|
|Pressure Gauge Max||7500 (517) psi (bar)|
|Pump Flow (60 Hz)||50 (190) gpm (lpm)|
|Pressure Hose||16 (1") size|
|Pump Flow (50 Hz)||41 (155) gpm (lpm)|
|Weight||6500 (2948) lb (kg)|
|Fluid||Skydrol or Hyjet|
|Motor||150 (112) hp (kW)|
|Pressure||150-5000 (10.3-344) psi (bar)|
|Return Hose||24 (1 1/2") size|
|Airbus Military (CASA)||A400M|
We service the 5933 and other items like it at our facility.
As an authorized Tronair Distributor, we sell factory OEM parts for the 5933. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.
We provide short-term and long-term rentals for the 5933. We will ship the item directly to you and arrange for pickup at the end of your lease.
