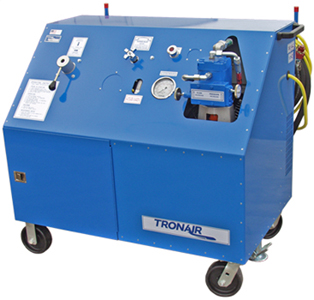

Tronair 5B20 / 5B21 Hydraulic Power Unit (HPU)

Tronair 5B20
Manufacturer: Tronair
Part Number: 5B20
Condition: New
✓ Worldwide shipping options available
✓ Manufacturer CofC always available at no cost after shipping
✓ Operating manuals available online for purchased equipment
Get Price & Order Now (it's quick & instant!)

Get a Quote or Ask a Question

Simply fill out the form below and you will receive a quote via email shortly.
Hanger/Input Voltage:
Do You Need Quick Disconnects?
Company Name:
Phone: (optional)
Questions/Comments: (optional)
Customers who viewed this item also viewed:
10 GPM (60Hz), 8.3 GPM (50Hz), 750-3000 PSI, 15 HP
6 GPM, 3000 PSI, 5 HP
15 GPM (60Hz), 12 GPM (50Hz), 750-5000 PSI, 25 HP
6 GPM, 3000 PSI, 5 HP
10 GPM (60Hz), 8.3 GPM (50Hz), 750-3000 PSI, 15 HP

This Tronair Hydraulic Power Unit (Series 5B20 / 5B21 (CE)) uses MIL-PRF-83282 fluid with a maximum output of 6 gallons per minute (2.4gpm at rated pressure). Output pressure is 3000 psi (max). Quick Disconnects are available as an option for each particular aircraft (if needed). Reservoir selector valve pyrometer and return sight glass are standard. The CE compliant version is also available (please specify in the comments).

Available Options
The following are the options available for the Tronair 5B20 HPU. Please specify which options you would like (if any) in the comments box when submitting your HPU quote.

Option A - 25 ft (7.6 m) Hoses
Option C - Dual System
Option D - Dual System With Crossover Check
Option F - Hour Meter (60 Hz)
Option K - Pyrometer
Option M - Hand Pump
Option W - Return Filter

Alternate Models
5B201AT0KHC-1042 Couplers, 208V 3 PH 60 HZ Voltage Required
5B201AT6KHC-1042 Couplers, 220-240V 3 PH 50 HZ Voltage Required
5B21CE Compliant
Pressure Max3000 (207) psi (bar)
Motor5 (3.7) hp (kw)
Weight525 (238) lb (kg)
Flow Max6 (23) gpm (lpm)
Flow at Rated Pressure2.4 (9) gpm (lpm)
Compatible Aircraft*
CessnaCitation 650, Citation III, Citation VI, Citation VII
*This list is for general reference only and may not be entirely acurate for all aircraft. Please confirm all equipment meets the requirements of your aircraft with the owners/maintenance manuals prior to purchasing or using with your aircraft.

We service the 5B20 and other items like it at our facility.

A few of the common services we offer for this item are:
• Overhaul
• Repair
• Troubleshoot & Service

As an authorized Tronair Distributor, we sell factory OEM parts for the 5B20. Not sure exactly what part you need? Just describe it or send us a photo and we will research it for you if needed.

A few of the common parts we offer for this item are:
• Return Hose
• Pressure Hose
• Hoses Inside of Unit
• Pressure Gauge
• Hand Pump Pressure Gauge
• Hand Pump
• Flow Meter
• Pyrometer
• Hourmeter
• Pressure Filter
• Return Filter
• Hand Pump Filter
• Casters
• Electrical Input Cable

We provide short-term and long-term rentals for the 5B20. We will ship the item directly to you and arrange for pickup at the end of your lease.

Sell or Trade-In

We can purchase your used 5B20 (or similar GSE items like it) and apply it as a credit for new GSE, or buy it outright directly.
