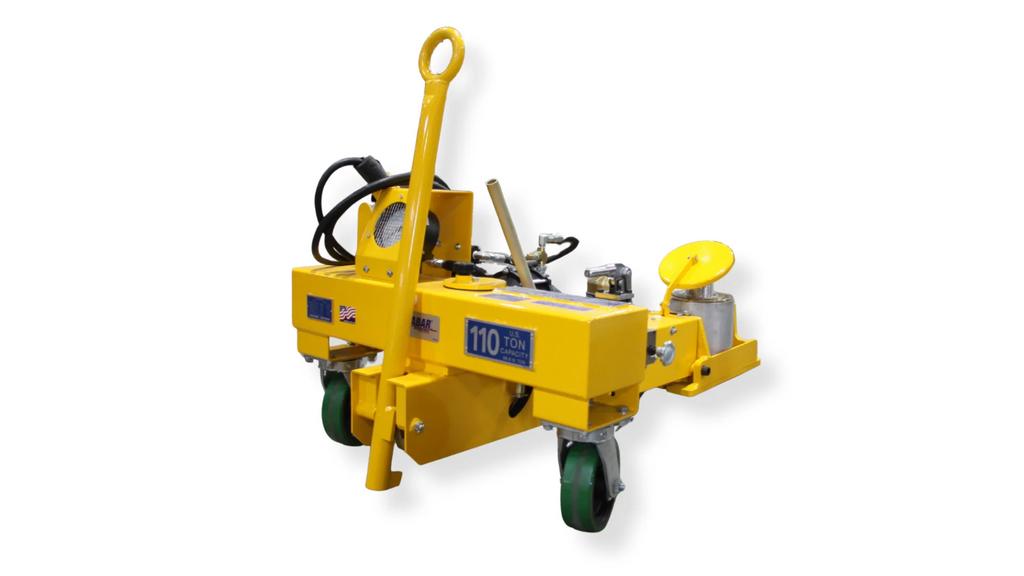

Tronair 950000-24 – 110-Ton Axle Jack

The Tronair 950000-24 is a 110-Ton (220,000 lb) hydraulic aircraft axle jack engineered to lift and support one wheel/tire assembly of an aircraft at the axle during maintenance, tire changes, and landing gear servicing. CE-marked for compliance with European aviation safety standards. OEM-specified for Airbus A350.

Standard Features

• Hand pump with built-in pressure relief valve
• Easy-access filler/breather cap that can be sealed to prevent spills
• Low-profile cylinder designed for minimal axle clearance requirements
• Hydraulic fluid: MIL-PRF-5606
• CE marked
• Durable powder-coat finish (Tronair Blue)

Technical Specifications

• Rated Capacity: 220,000 lbs (99790 kg)
• Operating Temperature: −4°F to 122°F (−20°C to 50°C)
• Pressure Relief Setting: 2,500 + 250/−0 PSIG (172.4 + 17.2/−0 bar)
• Hydraulic Fluid: MIL-PRF-5606
• Jack Pad: ¾" (2 cm) spherical radius cup
• Finish: Durable powder coat (Tronair Blue)

Safety Features

• Safety Lock Valve: Prevents the jack from lowering unintentionally during lifting operations. The jack must be manually released before descending.
• Pressure Relief Valve: Prevents overload during raising operations.
• Filler Cap Seal: Easy-access filler/breather cap can be sealed to prevent hydraulic fluid spills during transport and storage.

Aircraft Applications

The 950000-24 is OEM-approved for the following aircraft types:

• Airbus: A350

This list reflects aircraft for which the manufacturer has specifically approved this jack. Additional applications may be possible — always confirm jacking capacity, adapter requirements, and placement procedures with the aircraft maintenance manual before use.
