Tronair HC-1805 – Replacement Pressure Gauge, 0 to 400 psi
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

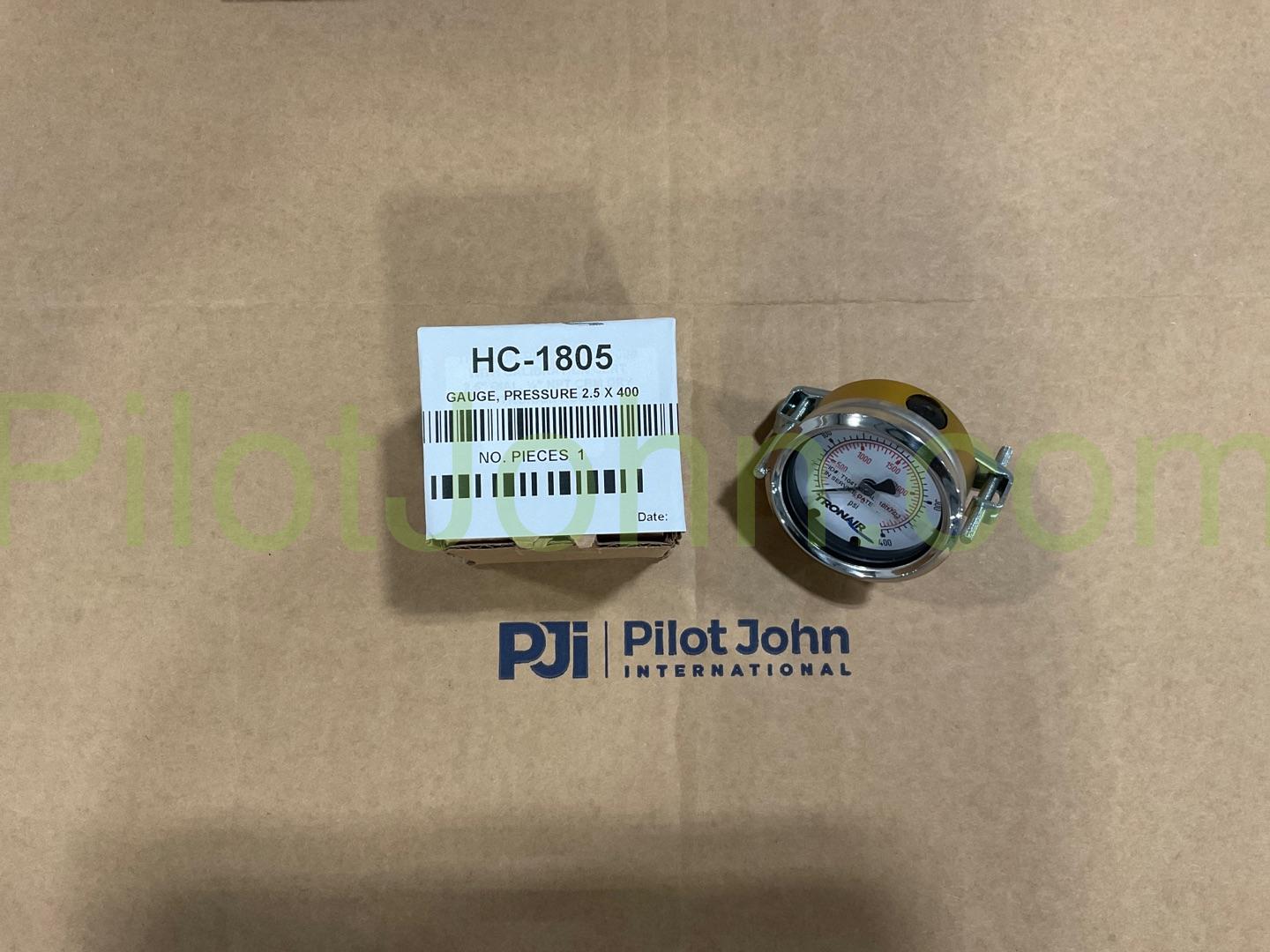

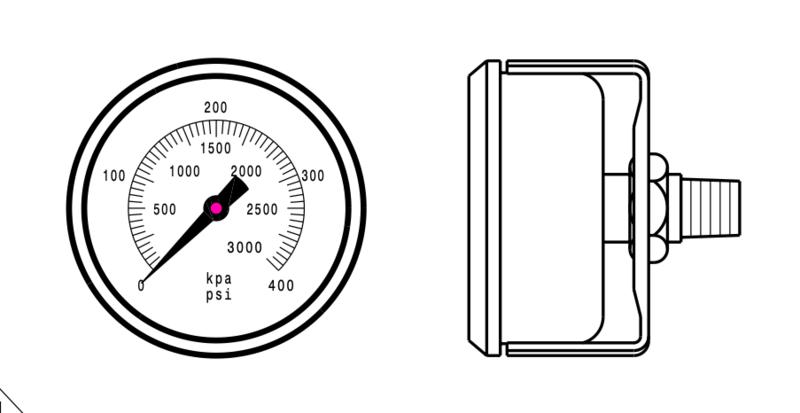

The Tronair HC-1805 is a replacement pressure gauge for the Tronair Oxygen Test Unit (20-4501-7010). The gauge has a pressure range of 0 to 400 psi (0 to 27.6 bar).
Features
- Polished 2.5" stainless steel case with panel mount clamp
- Clear-front Plexiglass lens
- Phosphor bronze bourdon tube
- 1/4" male NPT brass connection at the center back
- Brass and nickel silver movement with highly polished bearing surfaces
- Aluminum dial with white background – dual-scale psi/kPA, black psi scale, red kPA scale, UV-resistant
- Black-finished aluminum pointer
Specifications
- Accuracy: ANSI Grade B (3-2-3)
- Pressure Gauge: 0 to 400 psi (0 to 27.6 bar)
- Figure Interval: 100 psi/500 kPA
- Graduation Interval: 5 psi/50 kPA
| General Information | |
|---|---|
| Part # | HC-1805 |
| Manufacturer | Tronair |
| Shipping Information | |
|---|---|
| Product Weight | 0.8 lbs. |
| Product Dimensions | 3 x 3 x 3 in. |
| Schedule B | 9026200000 |
| ECCN | EAR99 |
