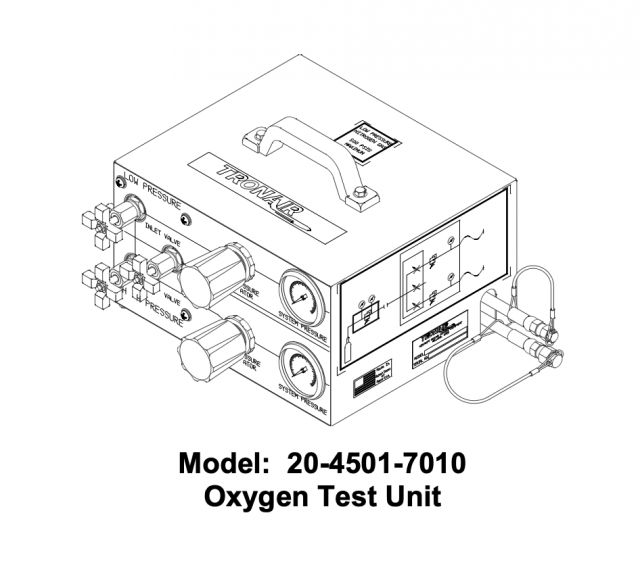

Tronair 20-4501-7010 – Oxygen Test Unit

The Tronair 20-4501-7010 Oxygen Test Unit is designed to provide the capability of taking clean nitrogen from a supply bottle and creating two regulated outputs.

The two regulated outputs – consisting of a 20 psi circuit and a 250 psi circuit – can be used to test any circuit rated at these pressures, compatible with clean nitrogen.

Specifications

• Dimensions: 14.6" L x 14.8" W x 10.1" H (32.1 x 37.6 x 25.7 cm)
• Weight: 30 lbs. (13.6 kg)
• Output Hoses:
  • 5-ft. (1.5 m) #4 hose with 37° JIC female flare swivel at both ends
  • 5-ft. (1.5 m) #6 hose with 37° JIC female flare swivel at both ends
• Nitrogen Output Ratings:
  • Low-Pressure Side: 20 psig Maximum
  • High-Pressure Side: 250 psig Maximum
• Nitrogen Input Rating: 500 psig Maximum
• Temperature Range: 17.7°C to 93.3°C (0°F to 200°F)

All plumbing, fittings, and components are oxygen-cleaned per SAE AIR 1176 specifications. The unit and hoses are cleaned, packaged, and shipped separately to avoid any possible system contamination.
