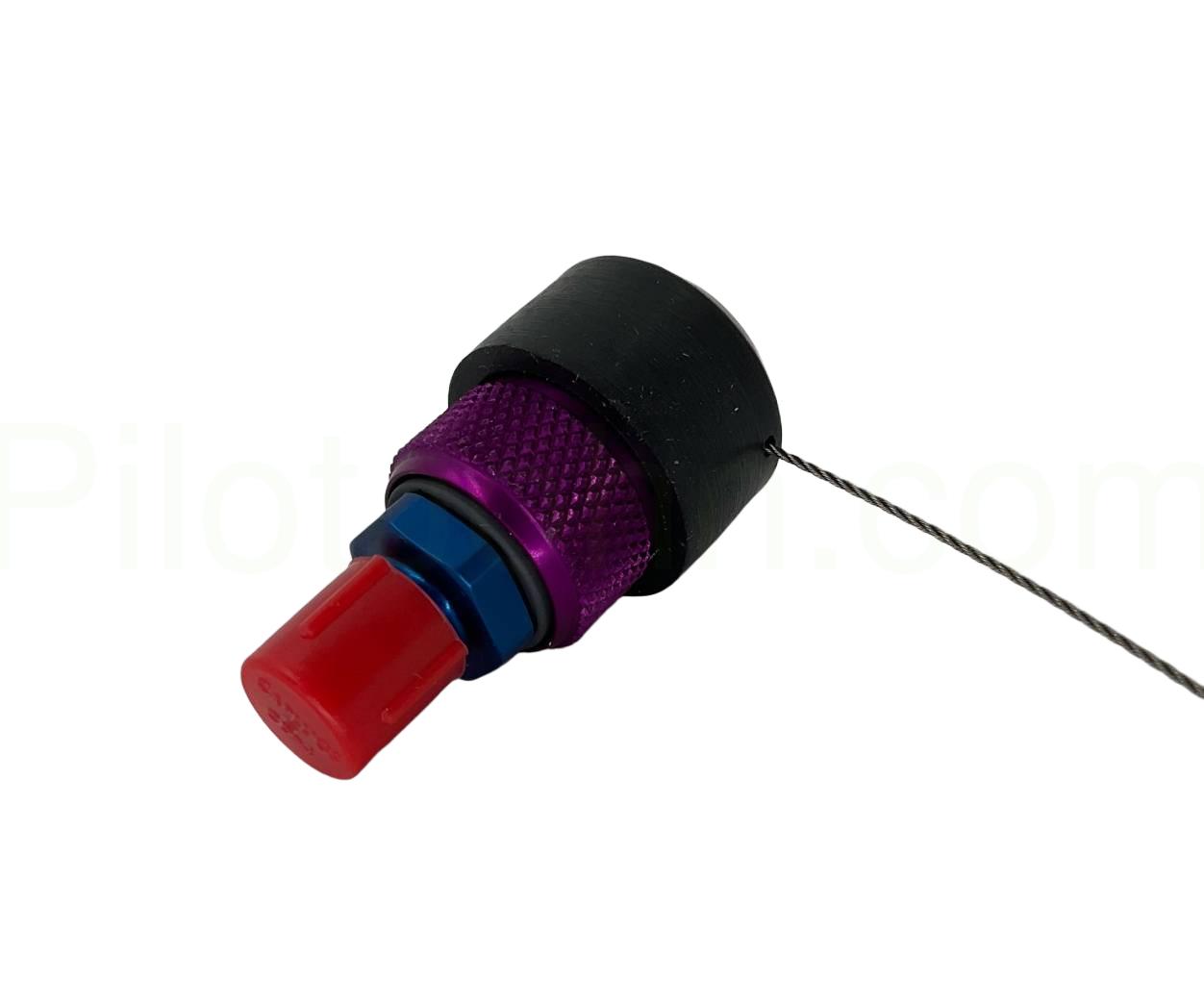

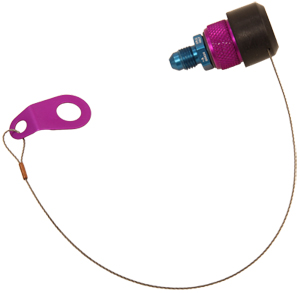

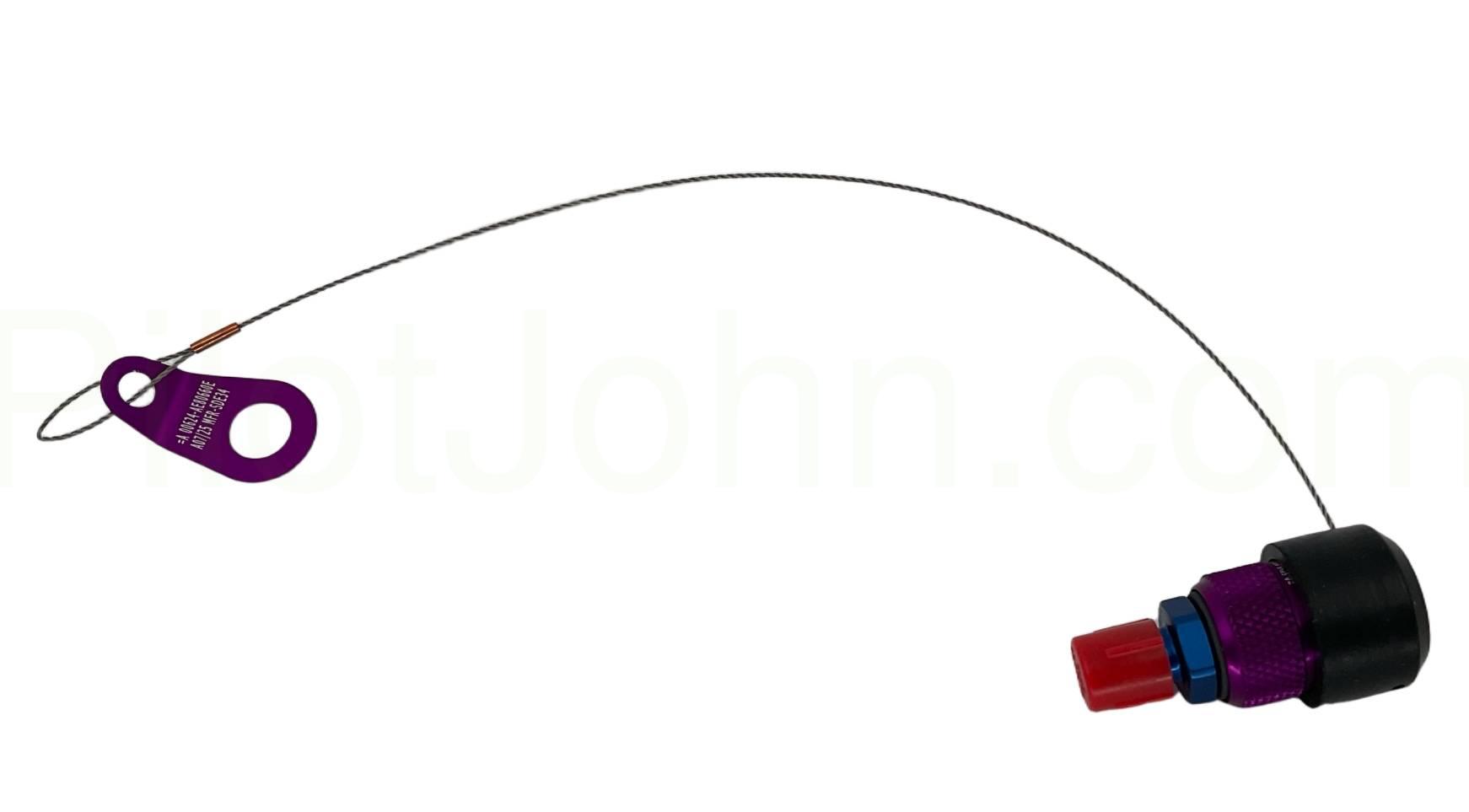

05-8011-6400 - Tronair KHC-1012 – Quick-Disconnect Hydraulic Coupling Kit for Select Bombardier Aircraft
The 05-8011-6400 is a specific part number of the series Tronair KHC-1012. For more generalized information on this item series or for more options, click here.
| Alternate Models | |
|---|---|
| 05-8011-6400 | Previous Part Number |
| 06-8011-6400 | Previous Part Number |
| GSB1210003 | Bombardier GSE Part Number |
| KHC-1012-M | Coupler with Metal Dust Plug |
| General Information | |
|---|---|
| Part # | 05-8011-6400 |
| Manufacturer | Tronair |
| Manual 1 | View Tronair KHC-1012 Manual |
| Shipping Information | |
|---|---|
| Product Weight | 1 lbs. |
| Product Dimensions | 3 x 2 x 2 in. |
| Freight NMFC | 11790 |
| Schedule B | 8431200000 |
| ECCN | EAR99 |
Customers also viewed
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* | |
|---|---|
| Bombardier |
Challenger 300
NOTE
Post-S/B 100-29-05 Mod/Current Production
,
Challenger 350
NOTE
Post-S/B 100-29-05 Mod/Current Production
,
Challenger 600
,
Challenger 601
,
Challenger 604
,
Challenger 605 (CL605)
,
Challenger 650
,
Challenger 850
,
Challenger 870
NOTE
Use in conjunction with the Hydraulic Reservoir Service Cart (06-5043-3600).
,
Challenger 890
NOTE
Use in conjunction with the Hydraulic Reservoir Service Cart (06-5043-3600).
,
CRJ100
,
CRJ1000
,
CRJ200
,
CRJ700
,
CRJ705
,
CRJ900
,
Dash 8-100
,
Dash 8-200
,
Dash 8-300
,
Dash 8-400
,
Global 5000
,
Global 5500
,
Global 6000
,
Global 6500
,
Global 7000
,
Global 7500
,
Global 8000
,
Global Express
,
Global Express XRS
|
| Gulfstream |
G280
NOTE
This kit is used in conjunction with the Hydraulic Reservoir Service Cart (06-5042-3600).
|
PRODUCT REVIEWS
QUESTIONS & ANSWERS
Yes, the KHC-1012 is specifically designed to be used with phosphate ester hydraulic fluids, which are widely utilized in aircraft hydraulic systems due to their fire-resistant properties. Using it with any other fluid types could compromise the performance and void the warranty. Always check fluid compatibility before connecting the coupling.
The quick-disconnect coupling simplifies hydraulic line changes by allowing fast, tool-free connections and disconnections, minimizing fluid loss and downtime. This is especially helpful during field maintenance, equipment swaps, or when servicing aircraft between flights. The included dust plug ensures clean connections by preventing contamination when not in use.
The KHC-1012 requires minimal maintenance, but routine inspection for wear, leaks, and debris is recommended. To prevent contamination, the dust plug should always be used when the coupling is not connected. To maintain performance and warranty validity, replace any damaged parts only with original Tronair components.
Tronair offers a one-year warranty for manufacturing or material defects from the shipment date. Replacement parts carry a 90-day warranty from the date of shipment. Unauthorized modifications or misuse can void the warranty, and users must contact Tronair directly for any service or warranty claims.
No, the KHC-1012 should not be modified without prior written approval from Tronair. Unauthorized modifications void all warranties and release Tronair from liability.
The KHC-1012 is compatible with Tronair systems that operate with phosphate ester hydraulic fluids. It’s always best to confirm compatibility with your specific model and consult with Tronair or your maintenance manual before use.
The dust plug (N-2427-01) is a protective cap that covers the quick-disconnect coupling when it’s not in use. Its main function is to prevent contaminants such as dirt or moisture from entering the hydraulic system, which helps preserve fluid cleanliness and component longevity.
Always depressurize the hydraulic system before connecting or disconnecting the coupling to prevent fluid spray or injury. Wear proper PPE and ensure connections are secure before activating equipment. Never use the coupling with fluid types other than phosphate ester without verification.
