The Unitron 60 kVA with 28V DC PwrKart series is a lightweight AC / DC mobile GPU for aircraft ground power applications in the hangar or ramp area. The dual output AC/DC PwrKart provides simultaneous AC and DC power from a single unit.

Features

  • IP55
  • Certified to UL 1012
  • Indoor/Outdoor (Hangar/Ramp) Use
  • Less than equal to 5% Input Current Distortion at max load
  • Automatic Input Line Monitoring
  • Advanced Integrated Display (AID) Console
  • 8000 Event Log / Diagnostics
  • TCP/IP/Ethernet interface (Modbus)
  • Internal Communication Ports - USB, RJ45 (ETHERNET), RS485 (Modbus), & RS232
  • External Communication Ports - RJ45 (ETHERNET) & USB
  • 15% Automatic Line Drop Compensation
  • Emergency Power "OFF" Switch
  • 18-Inch Hazard Area Clearance
  • Voltage, Current, & Frequency Monitoring
  • Front Panel Voltage Adjust
  • Elapsed Time Meter
  • Sleep Mode
  • Front Panel Summary Fault Indicators
  • Output Current Limit Adjust from 150A to full rated current
  • Input & Output Cable Racks
  • Input High Voltage Transient Protection
  • Multi Language (Romanization) Display -English, French, German, Italian, Portuguese, Russian and Spanish, Others - Specify

AC Input

  • Input Current Distortion: less than/equal to 5%, typically 3%
  • Voltage: 380 to 480 volts, +10%, -15%, 3O, 3 or 4 wire plus ground (Alternate voltages -208V-240V 3 PH)
  • Frequency: 50 - 60 Hz +/- 10%
  • Phase Rotation: Any
  • Protection: Over/undervoltage, loss of phase, overcurrent, short circuit. Voltage transient protection IAW IEEE C62.41.1, Location Cat. B/C
  • Inrush Current: No greater than 100% of full load current

DC Output - Option 1 - UDC-420

  • Full Rated Load: 425 amps continuous
  • Engine Start Capacity (10% duty cycle): Adjustable up to 1600 amps for 35 seconds, 2000 amps for 30 seconds
  • Overload (10% duty cycle): 600 amps for 1 hour 1000 amps for 1 minute
  • Voltage: 28 VDC, 2 wire, grounded negative
  • Voltage Regulation:
    • 100% continuous rated load and +/-10% input voltage: +/- 0.5%
    • No load to rated load with nominal input voltage: IAW ISO 6858 & MIL-STD-704F
    • Overload with nominal input voltage: See start mode curves
  • Voltage Adjust: 28 VDC +/- 10%
  • Current Limit Adjust: 150A to full rated current
  • Protection: Overload, short circuit, over voltage and safety disconnect
  • Automatic Line Drop Compensation (ALDC): 10%

DC Output - Option 2 - UDC-620

  • Full Rated Load: 600 amps continuous
  • Engine Start Capacity (10% duty cycle): Adjustable up to 1600 amps for 1 minute or 2000 amps for 30 seconds
  • Overload (10% duty cycle): 1000 amps for 10 minutes
  • Voltage: 28 VDC, 2 wire, grounded negative
  • Voltage Regulation:
    • 100% continuous rated load and +/-10% input voltage: +/- 0.5%
    • No load to rated load with nominal input voltage: IAW ISO 6858 & MIL-STD-704F
    • Overload with nominal input voltage: See start mode curves
  • Voltage Adjust: 28 VDC +/- 10%
  • Current Limit Adjust: 150A to full rated current
  • Protection: Overload, short circuit, over voltage and safety disconnect
  • Automatic Line Drop Compensation (ALDC): 10%

AC Output

  • Power Rating: 60 kVA
  • Power Factor Range: 0.5 lagging to 0.8 leading
  • Overload: 100% continuous, 110% for 60 min, 125% for 10 min, 150% for 2 min, 200% for 20 sec
  • Crest Factor: 1.414 +/- 3%
  • Voltage: 115/200 volts, 3O, 4 wire, grounded neutral
  • Voltage Adjust +/- 15% on 380-480V, 208 VAC, adjustable +/-10%
  • Voltage Regulation: +/- 1.0% under all conditions of line, balanced loads and temperature
  • Voltage Transients: IAW MIL-STD-704F
  • Frequency Regulation: 400 Hz +/- 0.01% under all conditions of line, load and temperature
  • Frequency Transients: None
  • Phase Angle Regulation: +/- 1 degree for balanced loads; +/- 2 degree for unbalanced loads
  • Harmonic Distortion: 2.0% maximum
  • Protection: Overload, short circuit, over/under voltage and safety disconnect
  • Automatic Line Drop Compensation (ALDC): 15%

Environmental

  • Acoustical Noise: < 65 dBA maximum at 5 feet (1.5m)
  • Temperature Range: -40 degree C to +55 degree C
  • Relative Humidity: 10 - 95%, Non-Condensing
  • Ingress of Water: Type 3RX, IP55

Mechanical Specifications

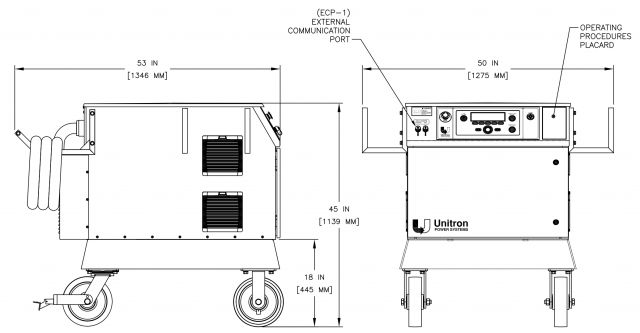

  • Size: See images on listing.
  • Weight: 60.0kVA = 907lbs. (411kg.)
  • Enclosure: NEMA 3RX Corrosion Resistant
  • Cooling: Forced Convection

Standards

  • EN 61000-6-2,4*: Electromagnetic compatibility Immunity & Emission standards for industrial environments
  • 2006/95/EC *: Low Voltage Directive
  • ISO 1540: Characteristics of aircraft electrical system
  • ISO 6858: Aircraft ground support electrical supplies
  • SAE ARP 5015: Ground equipment 400Hz ground power performance requirement
  • MIL-STD-704F: Aircraft electric power characteristics
  • MIL-STD-1472: Human Engineering Design Criteria
  • DFS-400: Specification for 400Hz aircraft power supply
  • *Defined Basis of CE Mark Certification
Alternate Models
UFC-60M-420MAlternative Model Number
UFC-60M-620MAlternative Model Number
