Unitron 90 kVA Towable Ground Power Unit (GPU) - UFC-90T-620UDC
Available for Order
Usually ships in 36 to 37 weeks
Don't have an account?
Create yours now for free.
Create yours now for free.
Select Voltage:
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

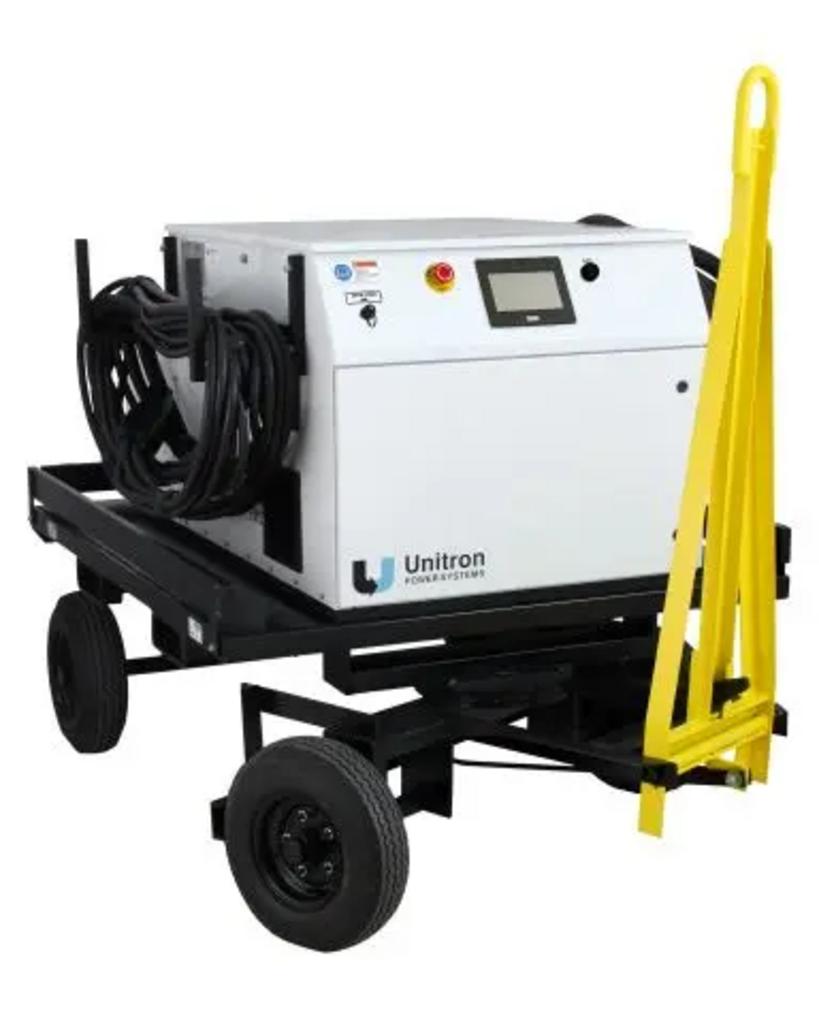

The Unitron UFC-90T-620UDC is a 90 kVA towable ground power unit (GPU) that delivers 115/200V, 400 Hz AC aircraft power plus 28 VDC output for hangar and ramp operations. It operates on a three phase 480V facility input and is configured with the higher capacity UDC package for 28 VDC ground power and engine start support.
Key Specifications
- Input: 480V, 3 phase, 50/60 Hz
- Maximum full load input current: 116 amps
- Output 1 (AC): 115V L N / 200V L L, 3 phase, 400 Hz, 261 amps
- Output 2 (DC): 28 VDC, 600 amps continuous
- Engine start capability: adjustable up to 1600 amps for 1 minute or 2000 amps for 30 seconds
Input
- Voltage: 480V, 3 phase
- Frequency: 50/60 Hz
- Maximum full load input current: 116 amps
Output 1 (AC 400 Hz)
- Voltage: 115V line to neutral / 200V line to line
- Phase: 3 phase
- Frequency: 400 Hz
- Output current: 261 amps
Output 2 (DC)
- Voltage: 28 VDC
- Continuous output current: 600 amps
- Engine start capability: adjustable up to 1600 amps for 1 minute or 2000 amps for 30 seconds
| General Information | |
|---|---|
| Part # | UFC-90T-620UDC |
| Manufacturer | Unitron |
| Shipping Information | |
|---|---|
| ECCN | EAR99 |
