USA Borescopes 6mm Borescope Camera – USA1000J-6-2000
Need a Quote?

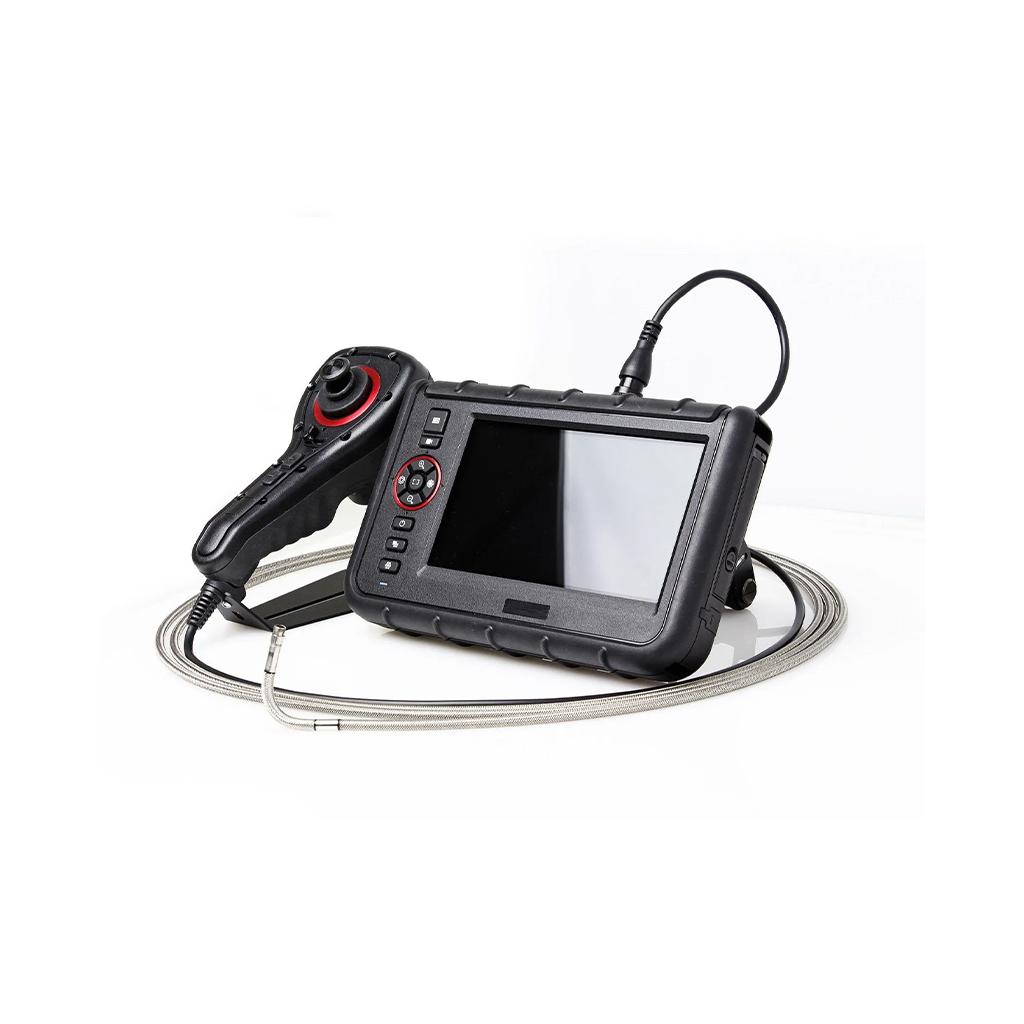

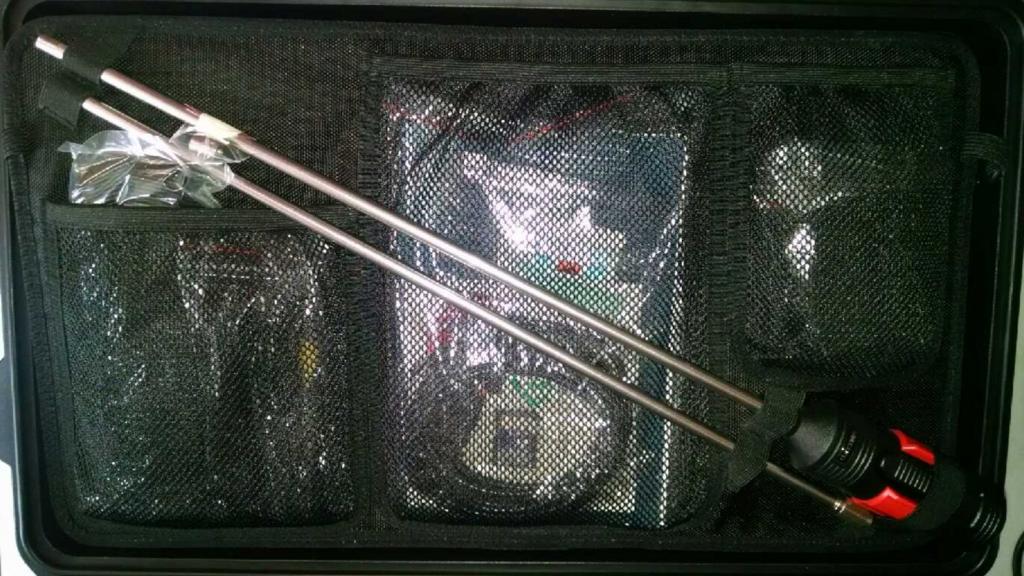

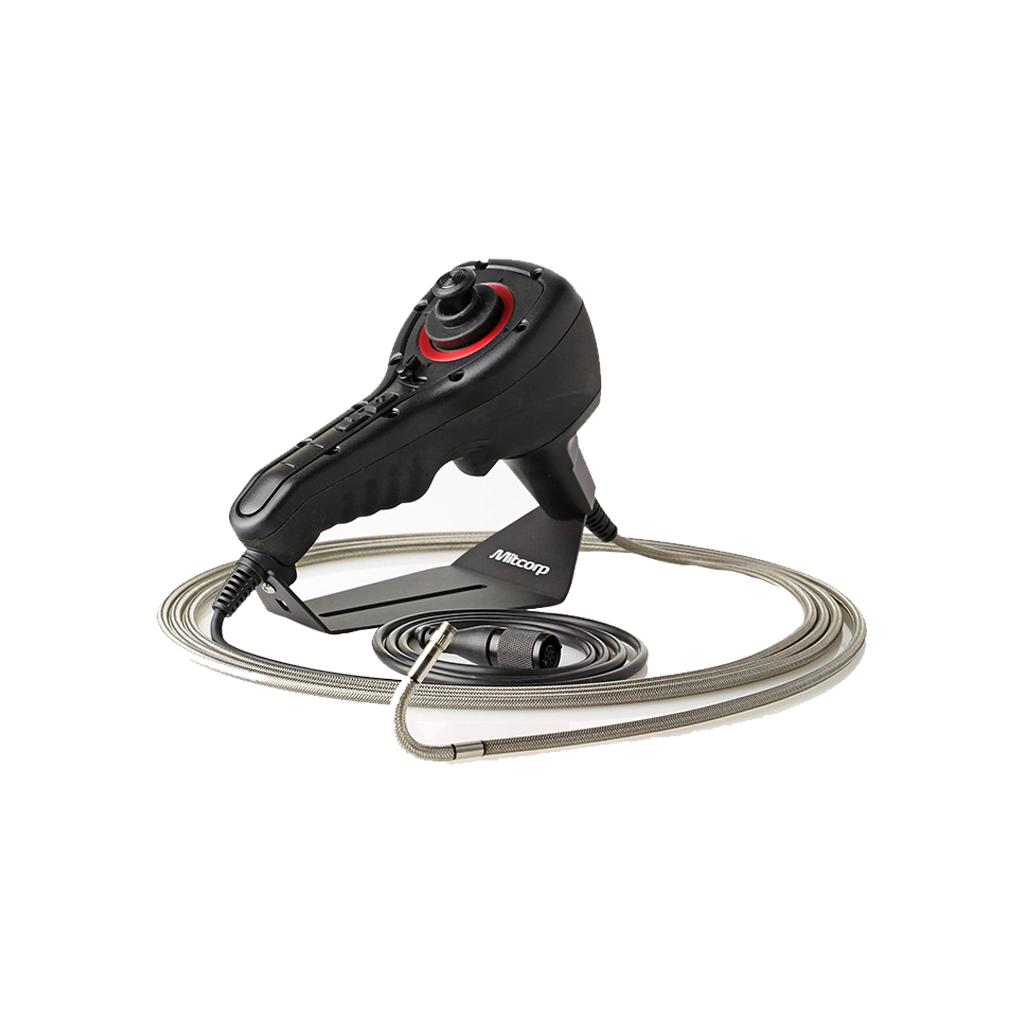

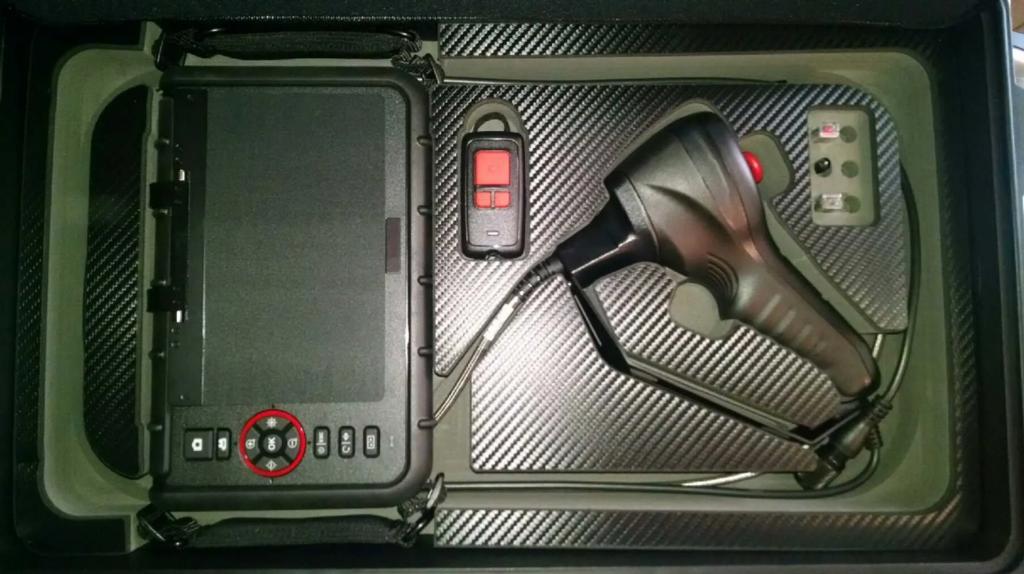

The USA Borescopes USA1000J-6-2000 is a 6 mm videoscope with joystick articulation (2 m length), built-in picture taking, video recording, straight-view and side-view tips, and a rechargeable battery pack.
Features
- 7"" TFT LCD display protected by oil-and-scratch-resistant tempered glass
- Superior image quality – generates sharp, clear, and bright images
- Rugged, robust construction – 1 m drop resistance, IP57 protection (main system)
- Rechargeable Li-Ion battery lasts for 6 hours
- LED backlight function keys – great for dark environments without sunlight or other light sources
- Interchangeable side-view tip
- USB camera – supports webcam devices, allowing remote access for data sharing and real-time diagnosis
- USB reader – simply connect to your PC to retrieve your data from the SD card (no card reader is necessary)
- Three easy ways to capture pictures: pushing a button on the system, using the articulation probe, or by remote control
- Convenient neck/hand strap for easy operation
- Lightweight at only 2.9 lbs. (1.3 kg)
- Water-resistant, oil-resistant probe
- 3.17x digital zoom
| General Information | |
|---|---|
| Part # | USA1000J-6-2000 |
| Manufacturer | USA Borescopes |
| Manual 1 | View USA1000J Series User Manual |
| Shipping Information | |
|---|---|
| Schedule B | 8525830000 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Battery Life | 5 hours (3 hours charge to full) |
| Button Lock | Lock-Up Button Functions |
| Buttons | Snapshot / LED+ / LED- |
| Depth of Field (DOF) | 12 to 150 mm |
| Dimensions | 9.45" x 6.06" x 1.85" (24 x 15.4 x 4.7 cm) |
| Display | 7" TFT LCD (WVGA) |
| Drop Test | 1 m |
| Drop/Waterproof Protection | IP57 Resistant |
| Field of View (FOV) | 90° |
| LED | Front/Side |
| Power | Rechargeable 3.7V Li-Ion Battery |
| Power Consumption | 5V DC / 3A |
| Power Supply | 100 to 240V AC / 50/60 Hz |
| Probe Articulation | All-Way |
| Probe Head Diameter | 6 mm |
| Storage | SD Card (SDHC), up to 32G |
| Storage Temperature | 0°C to 60°C (32°F to 140°F) |
| System Weight | 2.86 lbs. (1.3 kg) |
| Tube Length | 2 m (6.6 ft.) |
| Video Out | NTSC & PAL / AV OUT |
| Video/Photo File Format | .avi / .jpg |
| Video/Photo Resolution | 640 x 480 |
| Working Temperature | 0°C to 60°C (32°F to 140°F) |
Customers also viewed
AIRCRAFT COMPATIBILITY
This item is for use on all aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The USA Borescopes USA1000J-6-2000 6mm Videoscope is designed for detailed inspections of aircraft engines, turbines, and mechanical systems. It allows technicians to examine internal components without disassembling the engine, making it ideal for detecting cracks, corrosion, foreign object debris (FOD), and other potential issues.
The high-resolution imaging and joystick articulation provide clear visuals and precise maneuverability for comprehensive diagnostics. This tool is commonly used in aviation maintenance, manufacturing quality control, and industrial inspections, ensuring reliable performance and early issue detection.
The 360° joystick-controlled articulation in the USA1000J-6-2000 videoscope allows technicians to maneuver the probe with precision, making it easier to inspect difficult-to-reach areas inside aircraft engines. Unlike rigid borescopes, this system provides greater flexibility and control, reducing the need for excessive repositioning.
The smooth articulation enhances workflow efficiency and reduces operator fatigue, ensuring that technicians can conduct thorough inspections quickly and accurately. This feature is essential for locating defects that may not be visible with traditional inspection tools.
The 6mm probe size of the USA1000J-6-2000 offers a balance between flexibility and durability, making it ideal for engine inspections, hydraulic system checks, and structural evaluations. It is thin enough to navigate tight spaces within turbine engines but still robust enough to handle industrial environments.
This size is particularly useful for accessing engine combustion chambers, fan blades, and exhaust ducts without requiring disassembly. The small diameter ensures minimal disruption during inspections while providing clear, high-resolution imaging of critical aircraft components.
The USA1000J-6-2000 videoscope features high-resolution imaging, allowing technicians to identify even the smallest defects, such as fine cracks or material fatigue. The clarity of the display ensures accurate diagnosis, reducing the risk of overlooking potential problems.
This high-definition capability is especially beneficial for aviation maintenance, where detailed visual assessments are required to maintain engine safety and performance. By capturing clear images and video, maintenance teams can document findings, review them later, and ensure compliance with industry standards.
The built-in LED illumination system in the USA1000J-6-2000 videoscope provides adjustable brightness, ensuring clear visibility in dark or confined spaces. Proper lighting is essential for detecting defects, corrosion, and foreign object debris (FOD) inside aircraft engines and components.
The adjustable LED settings allow technicians to control light intensity, reducing glare and improving contrast for better image clarity. This feature ensures that critical issues can be identified accurately, improving maintenance efficiency and safety.
