USA Borescopes 6mm Borescope Camera (HD) – USA2000J-6-2000
Need a Quote?
The USA Borescopes USA2000J-6-2000 is a 6mm HD videoscope (2m length) with joystick articulation. This innovative inspection tool provides high-definition visual inspection in challenging industrial environments. With its advanced features and versatility, the USA2000 is ideal for gearbox inspections inside aircraft engines and other aviation applications.
Regular inspections are essential to ensure optimal performance and prevent costly downtime. The USA2000 HD videoscope snake cam offers a range of features tailored specifically to professional inspectors, providing accurate and detailed visual analysis.
The flexible 6mm insertion probe allows easy access to confined spaces. This compact size is particularly advantageous for inspecting various parts inside those hard-to-see and hard-to-reach areas. If you have an inspection area that prevents the passage of this 6mm probe, the control station can support other diameter probes like the 2.8mm and 3.9mm probes. Despite its small size, the insertion probe delivers outstanding image results, capturing detailed visuals of the internal components.
In addition, the borescope control station for the USA2000 can support probes of various lengths, including 2-, 3-, 5-, and 7-meter lengths. This borescope camera has the versatility to offer solutions to all your borescope inspection challenges.
Some inspections often contain shiny surfaces that can cause glare spots on inspection images and videos, potentially obstructing the view of critical details. The USA2000 addresses this challenge with automatic and manual exposure systems, minimizing glare and ensuring clear visibility of the inspected components. This feature enhances the accuracy and reliability of inspections, allowing technicians to make informed decisions based on unobstructed visual data.
Various chemicals and liquids like oil and water are present inside many inspection areas. The braided tungsten insertion probes, including the 2.8mm probe used with the USA 2000, are highly resistant to various chemicals, ensuring their durability and longevity even in harsh environments. The probes can withstand exposure to chemicals and liquids as well as high temperatures.
Features
- Excellent image quality with optimized optic system and HD CMOS sensor
- High-resolution picture/video LCM output system

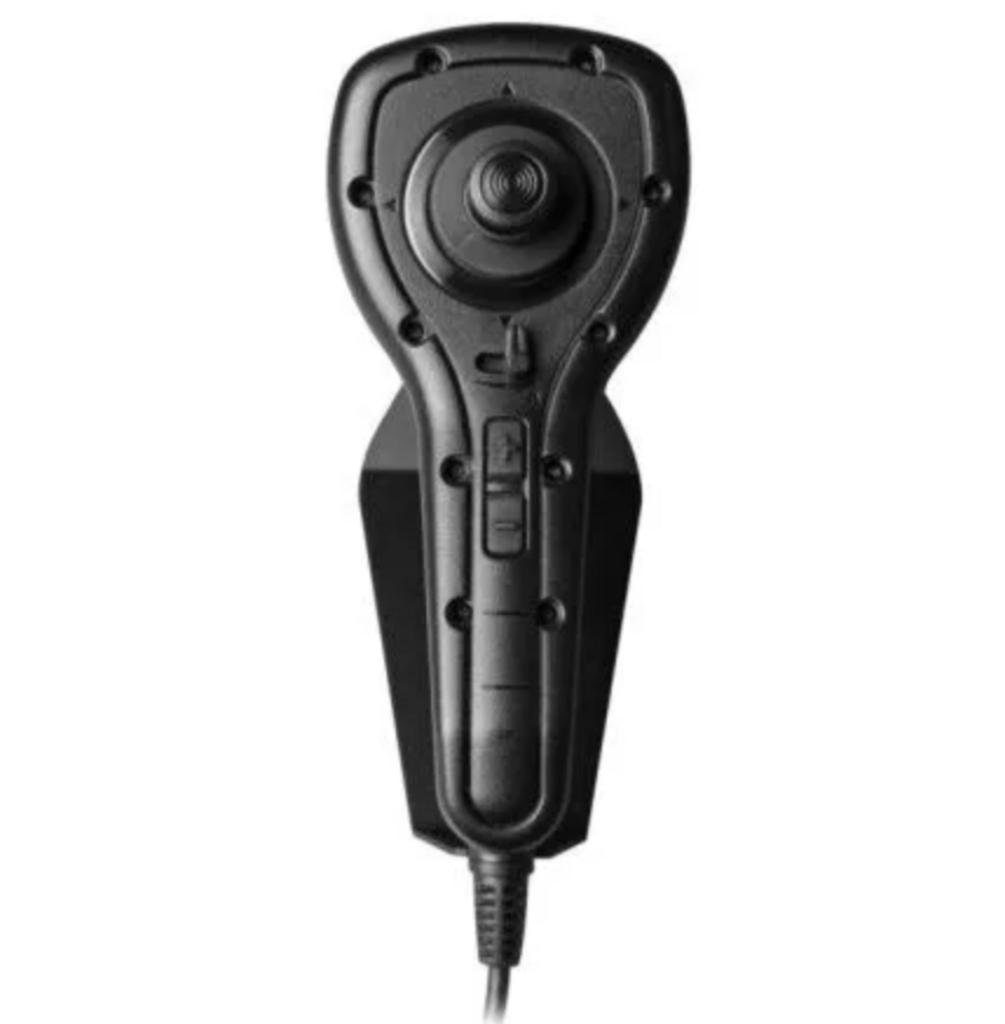

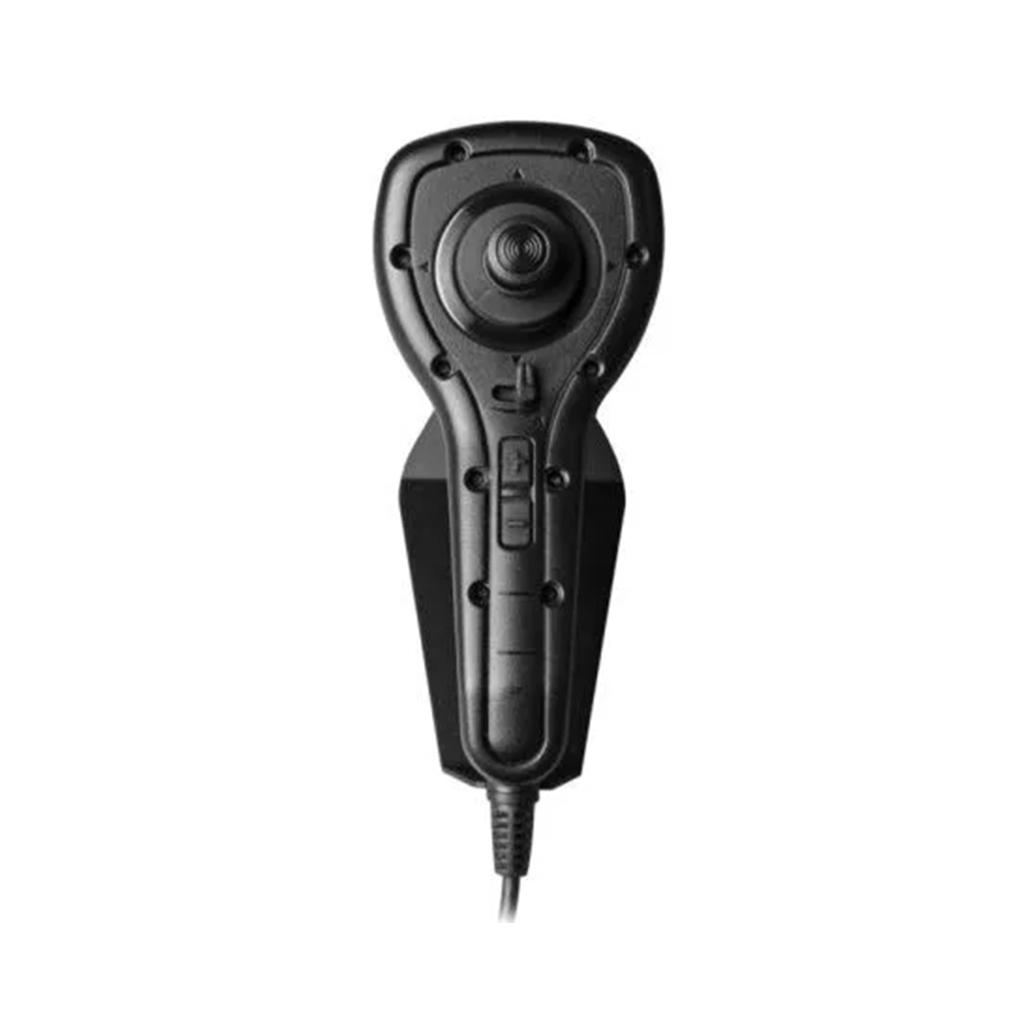

- Smooth joystick control and lock system
- Tungsten tube
- Temperature warning

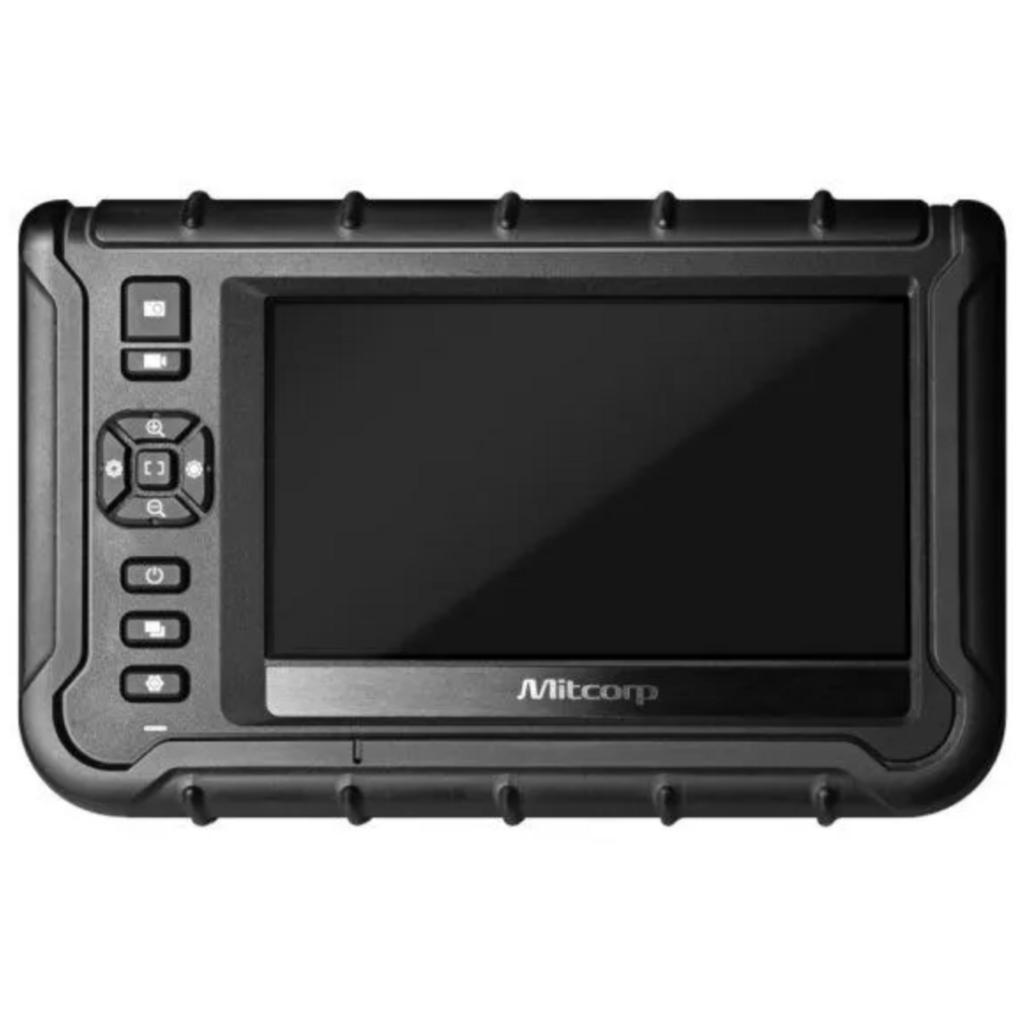

- 7” LCD monitor
- Interchangeable side-view tip
- Rigid sleeve
- Supports both 6mm and 4mm borescope probes
Specifications
Power Supply
- AC Adapter: 100 to 240V, 12V 2.5A, 50/60 Hz
- Battery: Rechargeable Li-Ion, 3.6V 900 mAH
- Operation Time: Approx. 5 hours
- Charging Time: 4 hours
Video Output
- HDMI: Type D; HDMI 1.4 transmitter with 3D format and CEC support
- USB: Type C, supporting USB full-speed and high-speed data transmission
- Wi-Fi: IEEE802.11B/G/N
Operating Temperature
- With Battery Power: 0°C to 40°C (32°F to 104°F)
- With AC Adapter Power: 0°C to 35°C (32°F to 95°F)
Articulation Probe
- Joystick Console Dimensions: 13.9 x 19.3 8.4 cm (w/o SR and insert tubes)
- Net Weight: Approx. 1.54 lbs. (700 g)
- Joystick Console Buttons: Brightness+; Brightness-; Snapshot/Record
- Lock and Move: Lock/unlock switch on the console
- Probe Head Diameter: 6mm
- Probe Length: 2 m
- Probe Head Material: Stainless steel
- Probe Material: Tungsten braid
- Probe Head Length: 19.3mm
- Direction of View: Front view
- Field of View (FOV): 90°
- Depth of Field (DOF): 10 to 100mm
- Illumination: Front/side LEDs
- Articulation Angle (Up/Down/Left/Right): Full ways ≥120°
- Operating Temperature: -10°C to 100°C in air; 10°C to 30°C in water
- Dust-Proof/Waterproof: IPF54 (joystick console); under water 1 m for 30 minutes
- Relative Humidity: Max 95% non-condensing
- Liquid Resistance: Operable when exposed to machine oil, light oil, or 5% saline solution
Software
- Image Features: Digital zoom 3x, 10 steps brightness control
- Sharpness Control: Clarity on/off
- Annotation: 10 text annotation (24 characters)
- Time Stamp/Watermark: For snapshot/video recording (on/off)
- Image Management: User-defined pic/video folder available
- On-Screen Display Functions: Light boost, light off, mirror, compare, wireless, particle-free, dual-view, light direction, negative, auto white balance
- White Balance: Manual adjustment (default, warm, cold, custom)
Recording Management
- Storage Media: SDHC, up to 32G
- Overlay: YY/MM/DD h:m, battery capacity
- Thumbnail Image Display: 9 grids album mode
- Still Image Resolution: 2560 x 1440 (S-HD); 1280 x 720 (HD)
- Still Image Recording Format: .jpg
- Video Resolution: 1920 x 1080
- Video Recording Format: .mov / H.264
- Audio Input: Built-in microphone (on/off)
- Frame Rate: 30FPS
Accessories
- HDMI Cable (AV-Out): 1.9 m, HDMI 1.4a, Type D
- USB Cable (Data Transfer): 1 m, Type C to standard Type A
- USB Charging Cable: 1 m, USB-DC jack (for power bank)
- SD Card: 16G
- DC Power Adapter: 100 to 240V, 12V 2.5A, 50/60 Hz
- Interchangeable Side-View Tip: 6mm
- Shoulder Strap: Polyester
- Hand Strap: Polyester
- Sun Visor: Steel/Plastic
- Ground Wire: 3 m with DC jack / PC in / clamp
- Insulation Cap: Ø20mm, 90mm rubber
- Rigid Sleeve Grip Material: Rubber/aluminum/plastic
- Rigid Sleeve Tube Material: Stainless steel
- Protection Ring: 8mm O.D., 7mm I.D.
- Extension Joint Ring: 11.2mm O.D.
- Trolley Case: HDPE EVA with storage reel
| General Information | |
|---|---|
| Part # | USA2000J-6-2000 |
| Manufacturer | USA Borescopes |
| Manual 1 | View USA2000J Series User Manual |
| Shipping Information | |
|---|---|
| Product Weight | 24 lbs. |
| Product Dimensions | 24 x 15 x 10 in. |
| Schedule B | 8525830000 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Display | 7” LCD |
| Drop Resistance | 1 m |
| Insert Tubes Interchangeability | 6 mm HD series; 3.9 mm series |
| Resolution | 1024 x 600 px |
| Weight | 20 lbs. (9.1 kg) |
Customers also viewed
Customers who bought this item also purchased
AIRCRAFT COMPATIBILITY
This item is for use on all aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The USA Borescopes USA2000J-6-2000 6mm HD Videoscope is designed for detailed internal inspections of aircraft engines, turbines, and mechanical components. It enables technicians to examine critical engine parts without disassembly, making it ideal for identifying cracks, corrosion, foreign object debris (FOD), and wear.
The high-definition imaging and joystick-controlled articulation ensure clear visuals and precise maneuverability, allowing for accurate diagnostics and efficient maintenance. This tool is widely used in aviation maintenance, industrial inspections, and quality control applications, helping ensure equipment reliability and safety.

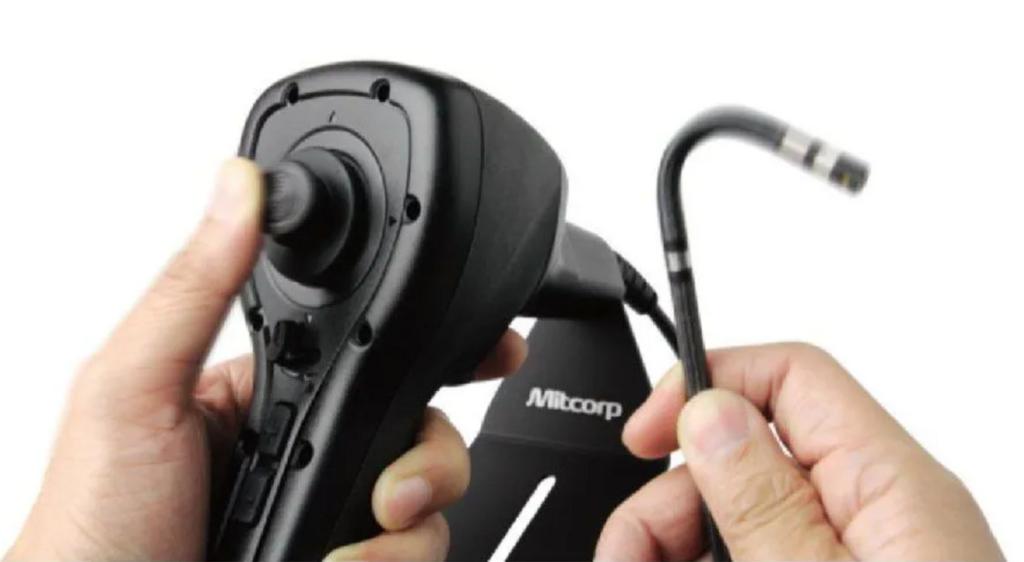

The 360° joystick-controlled articulation in the USA2000J-6-2000 videoscope allows for smooth and precise movement of the probe within tight engine spaces. Unlike traditional borescopes that require manual adjustments, this advanced articulation system enables technicians to navigate complex internal structures with ease.
The intuitive joystick design improves efficiency and accuracy, helping users quickly identify defects such as cracks, corrosion, and loose components. This feature is especially useful in aviation maintenance, where precision is critical for aircraft safety and performance.
The 6mm probe on the USA2000J-6-2000 videoscope provides the ideal balance between flexibility and durability, making it suitable for engine inspections, fuel system diagnostics, and airframe evaluations. It is narrow enough to access tight engine compartments while still being sturdy enough to withstand harsh environments.
The small diameter probe ensures minimal disruption during inspections, allowing technicians to assess critical components like turbine blades and combustion chambers. This size also makes the tool versatile for use in other aviation applications, such as hydraulic system checks and avionics maintenance.
The USA2000J-6-2000 features high-definition (HD) imaging, providing technicians with sharp, detailed visuals of internal components. This clarity is essential for detecting fine cracks, erosion, and material defects that could compromise engine performance.
The HD display ensures accurate diagnosis, reducing the likelihood of overlooking critical issues during maintenance. Additionally, the ability to capture and record HD images and video allows for detailed documentation and further analysis, improving long-term maintenance planning and regulatory compliance.
The USA2000J-6-2000 videoscope features an integrated LED illumination system, which provides adjustable brightness levels for enhanced visibility in dark or enclosed engine areas. Proper lighting is crucial for detecting corrosion, cracks, and foreign object debris (FOD) that may otherwise go unnoticed.
The adjustable settings allow technicians to control light intensity, reducing glare and improving contrast for better image clarity. This feature ensures thorough and accurate inspections, even in low-light conditions.
