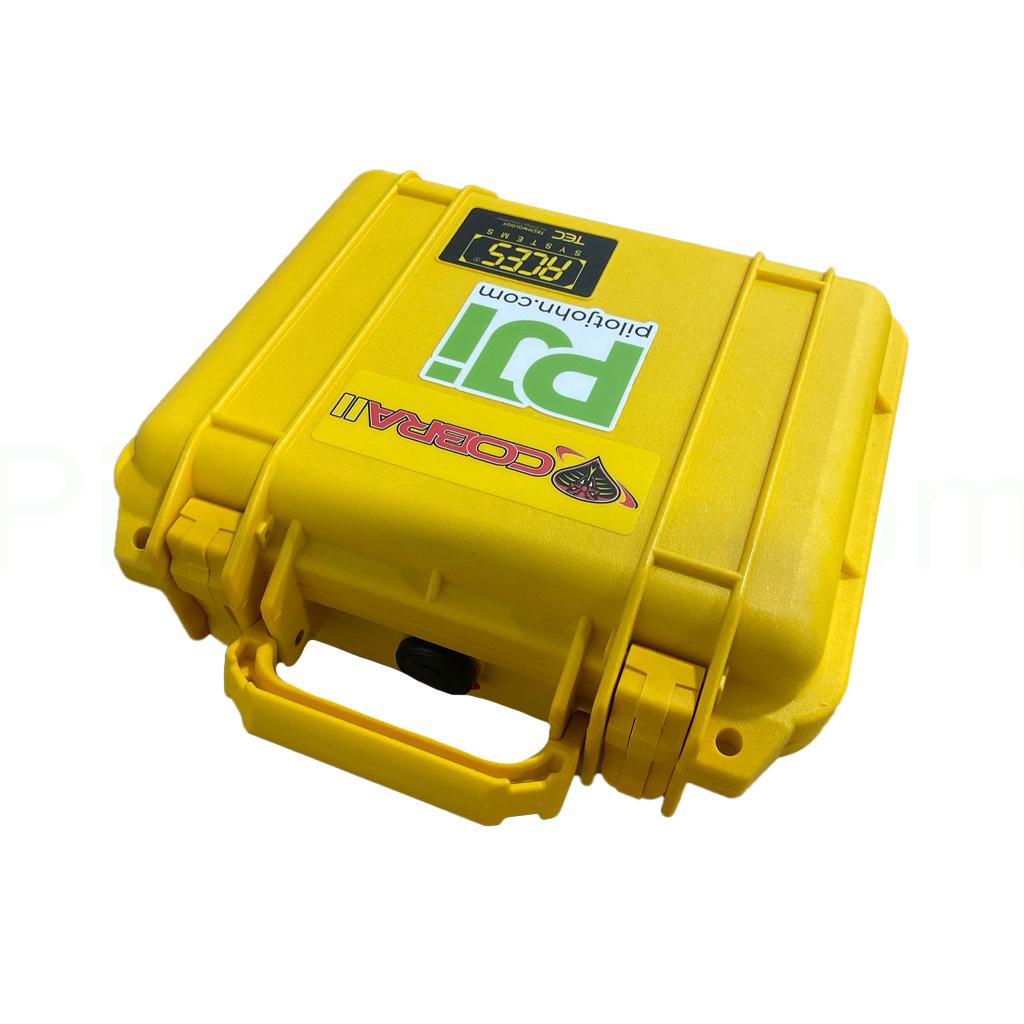

ACES Z2021-HELI – Cobra II 2-Channel Vibration & Balancing Analyzer – Helicopter Balancing Kit

The Z2021-HELI Cobra II is designed for vibration analysis and dynamic balancing of helicopter rotors, tail rotors, and drive systems. It enables technicians to identify imbalance or misalignment issues that can lead to premature component wear and vibration-related fatigue. By improving smoothness and efficiency, the Cobra II helps reduce maintenance costs and extend aircraft service life.

The system incorporates ACES AI Learning Algorithms and Mathematical Equations, which continuously refine balance solutions with each run. This adaptive processing minimizes test flights and delivers more consistent results, even across different airframes. It provides ±1% amplitude accuracy across its 30 kHz frequency range.

Beyond balancing, the Cobra II performs propeller balancing, main and tail rotor tracking, vibration surveys, and spectral analysis. This flexibility allows it to serve both fixed-wing and rotary aircraft applications. Technicians can also perform test cell accuracy checks directly in the field, eliminating the need for large stationary systems.

The Cobra II features a rugged, compact design with a 7” day/night-readable color LCD display and rechargeable lithium-ion battery. The handheld unit weighs just 6 lbs (2.8 kg) and is built for in-field operation in temperatures from -4°F to 120°F (-20 °C to 49 °C), making it ideal for flight line or hangar environments.

The analyzer can generate PDF reports directly from the device and save them to a USB flash drive for documentation and record-keeping. This feature eliminates the need for separate data-transfer software and simplifies compliance with maintenance reporting requirements. The easy reporting process improves traceability and supports long-term trend monitoring.

The system accepts sensors for acceleration, velocity, displacement, and voltage, with external charge amplifiers supported for charge-mode sensors. This flexibility enables technicians to utilize a range of sensor types, tailored to specific aircraft configurations and maintenance requirements.

By providing quick, automated solutions and allowing hundreds of stored airframe setups, the Cobra II minimizes setup and calibration time. The analyzer’s self-improving algorithms enable “one-shot” balance solutions, which significantly reduce flight test hours and fuel consumption during vibration troubleshooting.

The unit features a full-spectral display that enables technicians to identify both normal and harmonic vibration peaks. Its advanced data visualization tools simplify diagnosis and enhance understanding of rotor dynamics. This makes it easier to isolate vibration sources for corrective action.

Yes. The ACES Systems Gen II analyzers, including the Cobra II, are approved for the MORE PT-6 Program. This ensures maintenance teams can capture vibration data necessary for ongoing reliability and compliance under FAA-recognized maintenance extensions.

The Z2021-HELI kit is specifically configured for rotary-wing maintenance, including main and tail rotor balance applications. Its compact form factor and ability to store airframe-specific setups make it especially suited to on-site helicopter maintenance and flight-line vibration analysis.

The system’s two-channel simultaneous data acquisition and precision tachometer inputs deliver test-cell-level accuracy in a portable package. This enables flight departments and MROs to obtain high-quality diagnostic data without having to transport aircraft to dedicated test facilities.

The Cobra II is powered by a rechargeable lithium-ion battery, supporting extended use in remote or mobile environments. It can also operate using external aircraft power, providing flexibility for continuous data collection during ground runs or flight testing.

Built for harsh aviation environments, the Cobra II’s sealed, impact-resistant housing protects against dust, moisture, and vibration. This rugged design ensures reliable operation in both hangar and outdoor conditions, maintaining accuracy across years of service.

ACES Systems provides user manuals, quick-start guides, and application notes that walk technicians through every step of setup and data collection. These materials help users quickly learn to perform complex balancing procedures with accuracy and confidence.

post-maintenance validation. Its digital reporting and high repeatability help operators reduce man-hours while maintaining a detailed vibration history for predictive maintenance planning.
