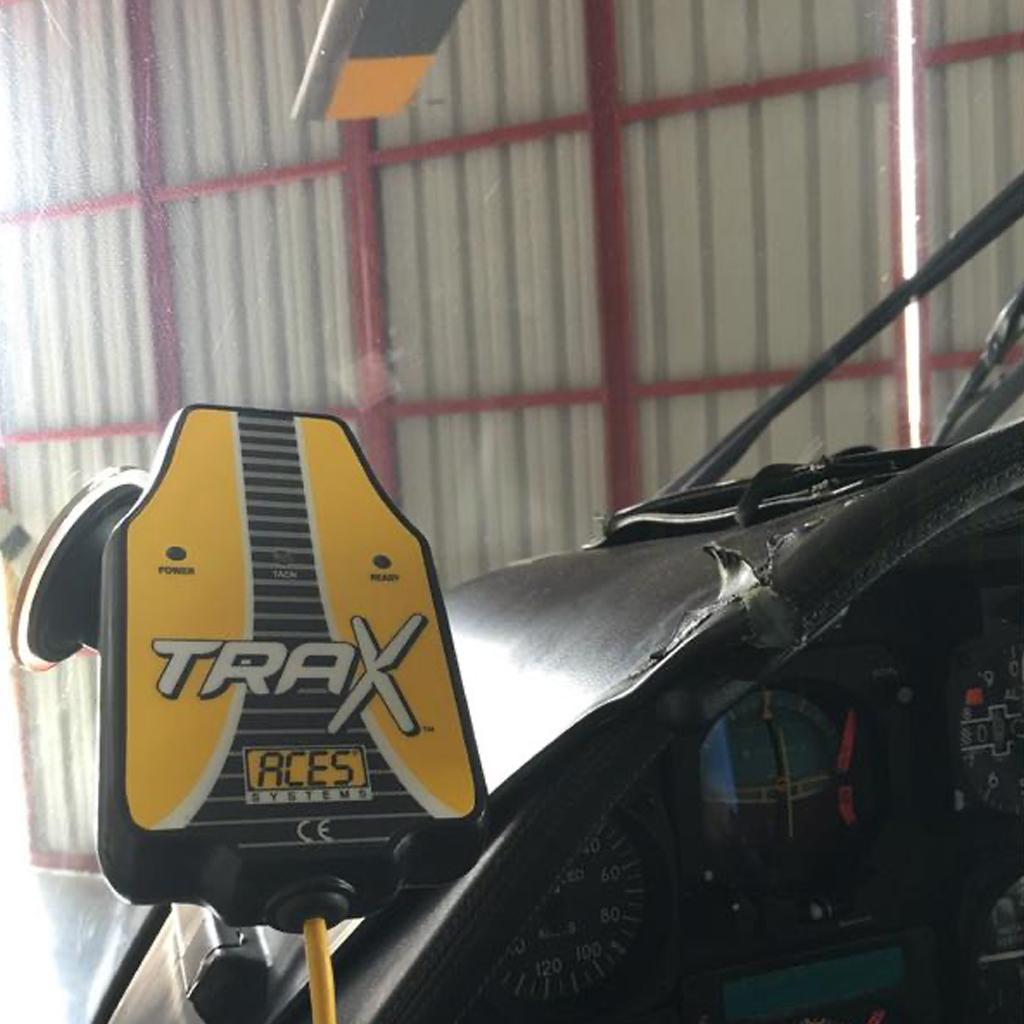

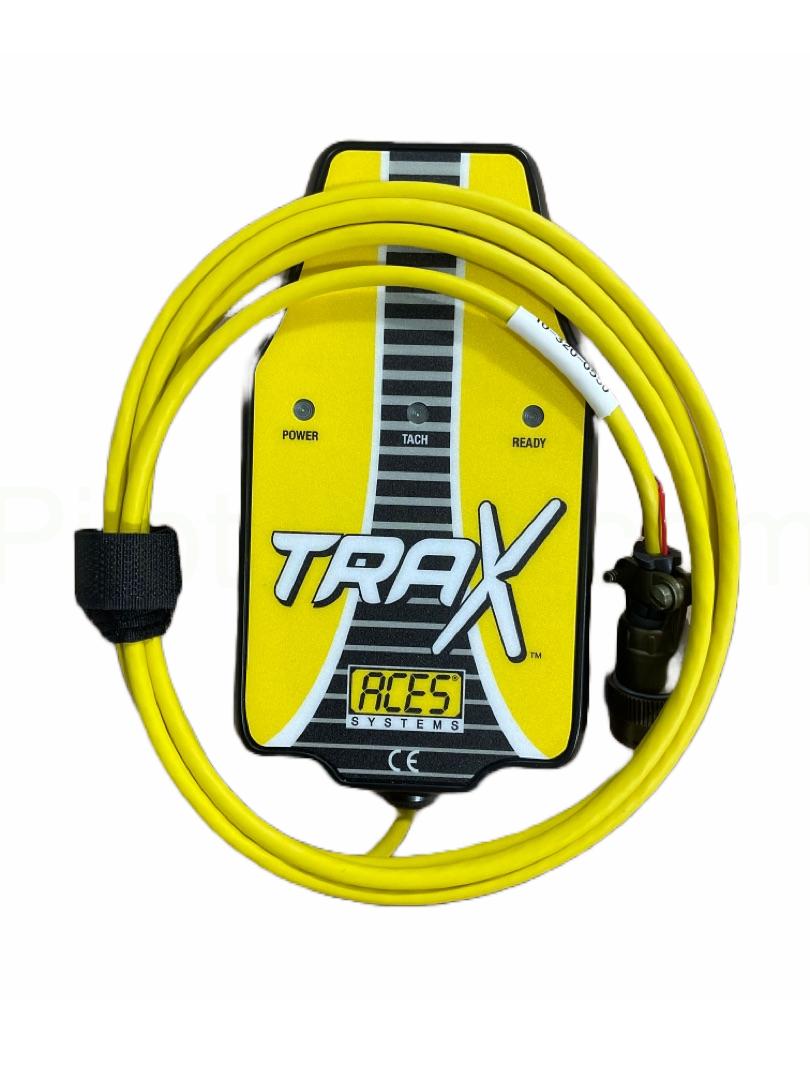

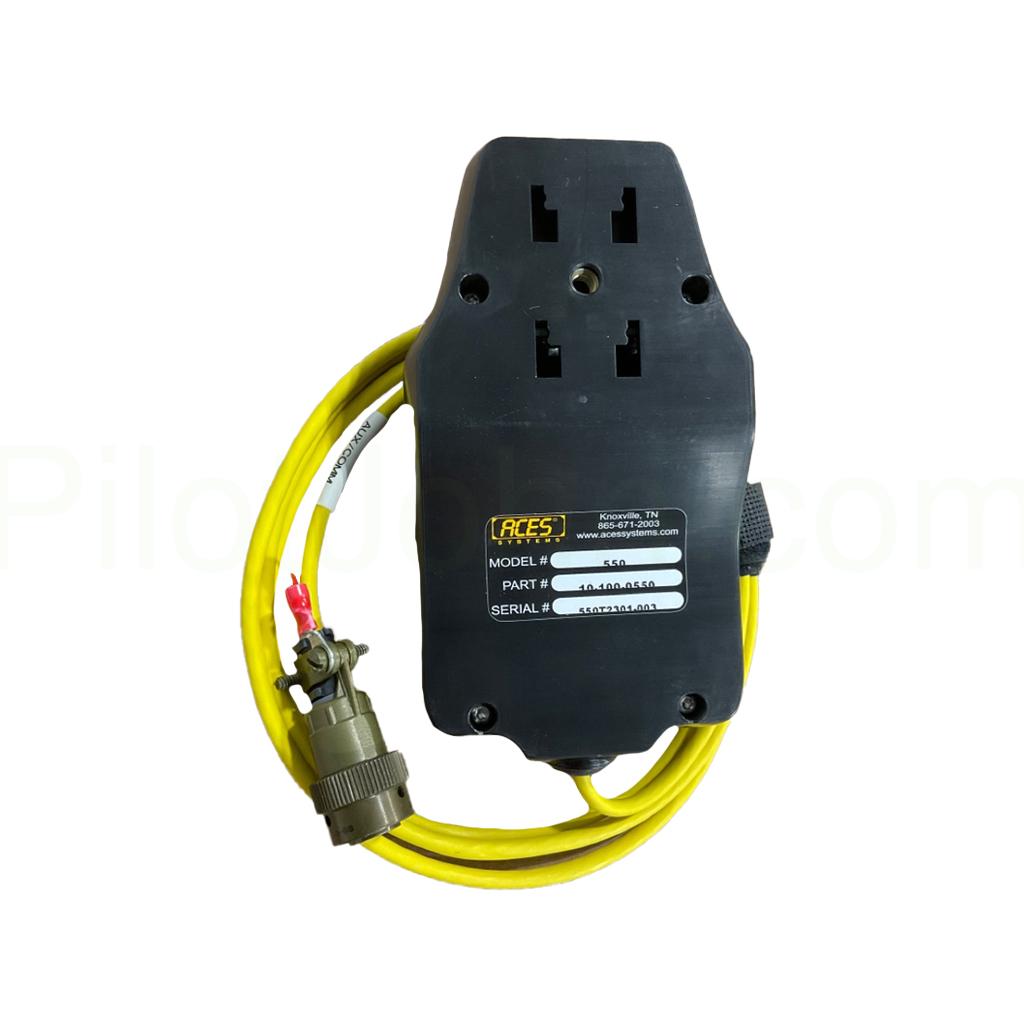

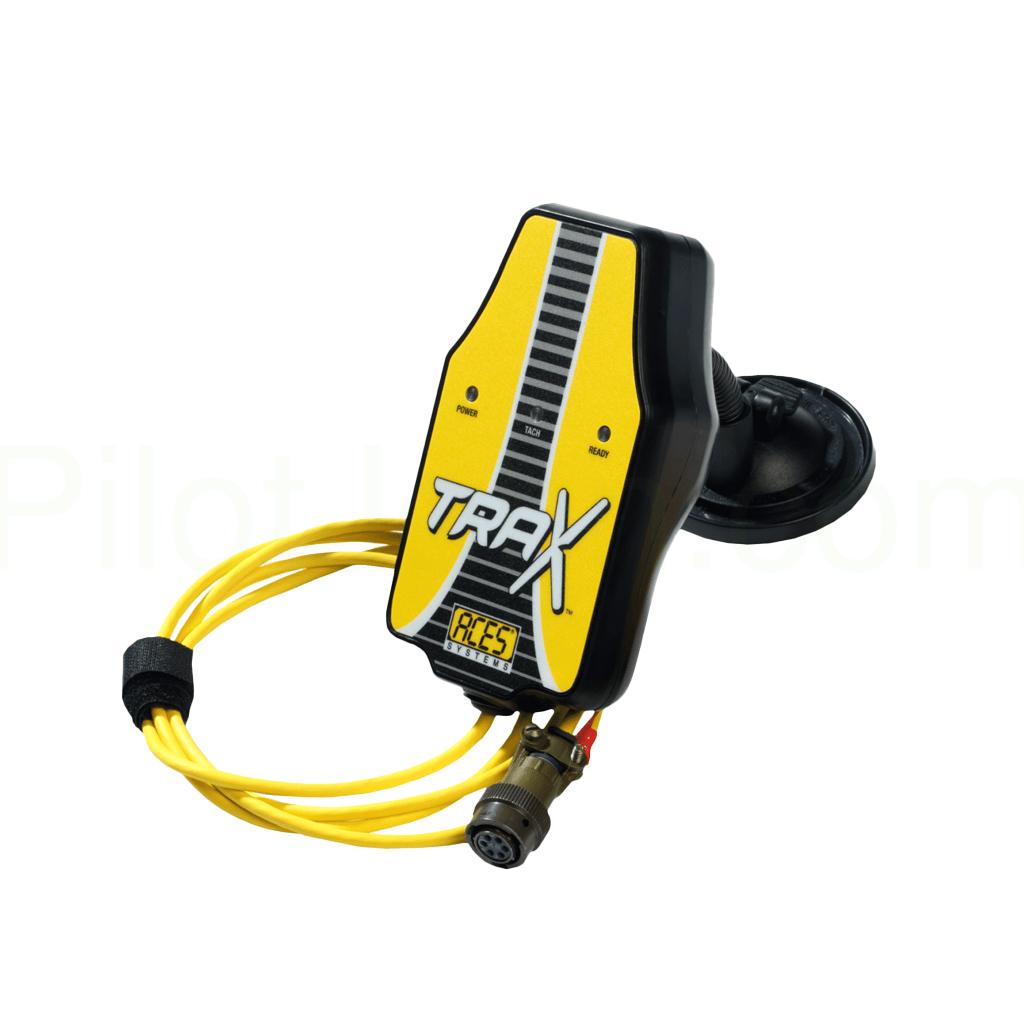

The ACES Systems TraX is a state-of-the-art, semi-permanently mounted optical camera that automates the task of obtaining accurate blade track data when used in conjunction with certain ACES Systems analyzers.
ADVANTAGES
Convenient
- Requires nothing be added to the blades (no tip targets)
- Hands-free operation
- No aiming required during flight
- Fast measurement time (Approx. 4 seconds for 25 rotations)
- Quick and easy mounting – no hardware required
Accurate
- Reports track differences down to 0.1”
- Reports lead/lag differences down to 0.1”
Versatile
- Provides tip path measurements without the use of tip targets or stroboscopic lights. If the aircraft has tip targets installed, you are not required to remove them in order to utilize the ACES TraX.
Durable
- Rugged black ABS plastic body with an integrated cable, adjustable mount assembly, and an integrated suction cup.
SPECIFICATIONS
Optical Sensors
- Dual sensors measure blade pass timing to determine track
- Designed for all shapes and blade colors
- Automatically adjusts to differently-aged blades
- Measures up to 6 blades on almost any airframe
Dimensions
- 13” x 13” x 4”
Weight
- 10.6 oz. (300 g)
Visual Indicators
- Power, Tach, Ready
Environmental Requirements
- Operating Temperature: -20°F to 185°F (-29°C to 85°C)
- Storage Temperature: -40°F to 185°F (-40°C to 85°C)
- Relative Humidity: 5% to 95% non-condensing
ACES Analyzers Compatible with TraX
| General Information | |
|---|---|
| Part # | Z10-100-0550 |
| Manufacturer | Aces Systems |
| Shipping Information | |
|---|---|
| Product Weight | 2 lbs. |
| Product Dimensions | 7 x 6 x 3 in. |
| Schedule B | 9031100000 |
| ECCN | 9B990 |
