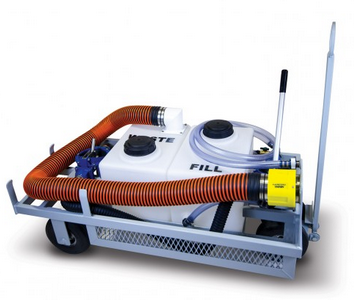

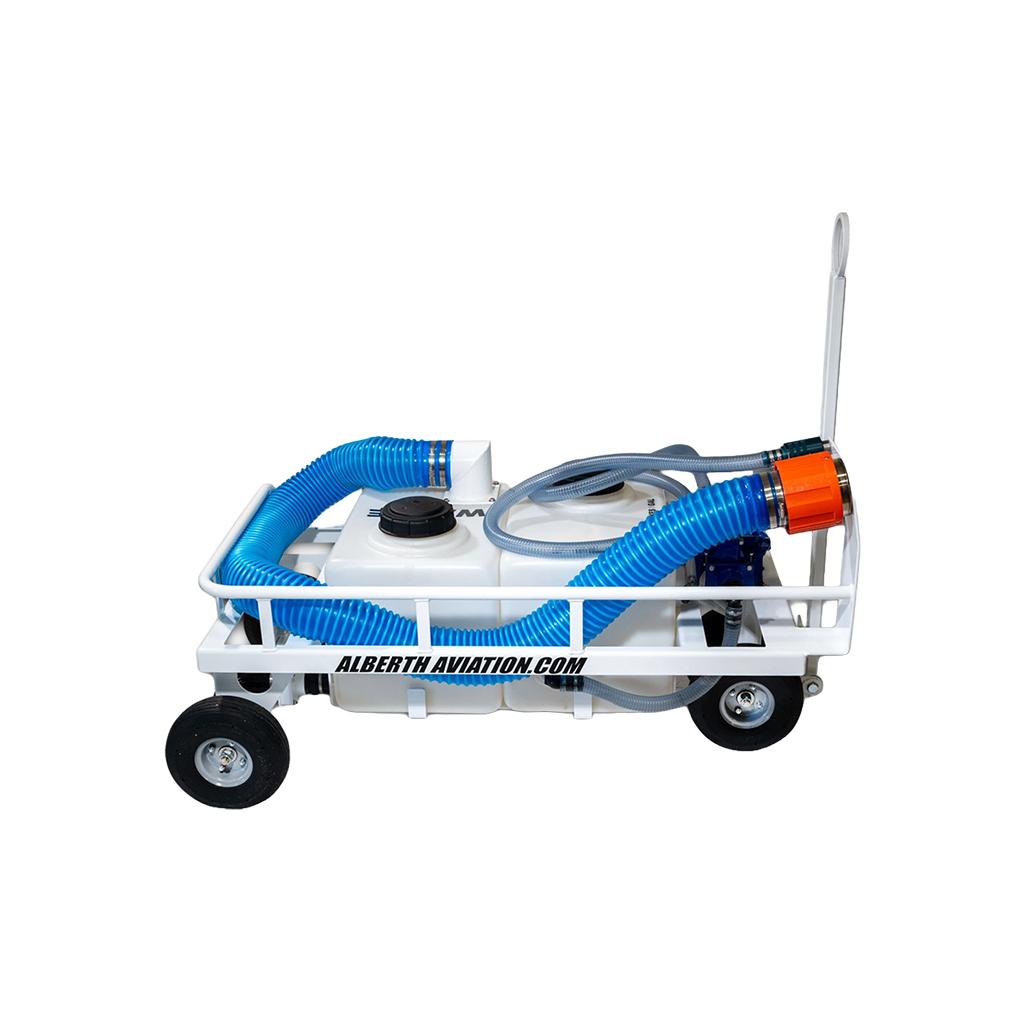

Alberth Aviation LC-1616 Lavatory Service Cart

The Alberth Aviation LC-1616 Lavatory Service Cart is a self-contained mobile unit designed for safely servicing aircraft lavatory systems. With dedicated 16-gallon fill and waste tanks, technicians can efficiently flush and refill lavatories while minimizing the risk of contamination. Its compact footprint and durable build make it ideal for use in FBOs, corporate hangars, and tight ramp spaces.

The LC-1616 Lavatory Service Cart includes sealed hose storage and a rear waste-handling system that prevents splashback and chemical exposure. It features Alberth’s unique pump-driven waste system, rather than a standard dump valve, which significantly reduces spillage and operator contact with waste fluids. These design improvements help protect technicians and ensure compliance with shop safety standards.

The LC-1616 is equipped with two heavy-duty Guzzler 2600 diaphragm hand pumps, one for the waste tank and one for the fill tank. Each pump dispenses approximately one gallon per four strokes, allowing for precise control during servicing. These pumps are durable, corrosion-resistant, and easy to maintain, offering years of dependable service in busy maintenance environments.

Yes. The Alberth Aviation LC-1616 is designed for light towing by hand or by vehicle at speeds under 15 mph (24 km/h). Its powder-coated steel chassis and pneumatic tires ensure stability and maneuverability, even on uneven ramp surfaces. The integrated friction-brake tow bar keeps the cart stationary during operation.

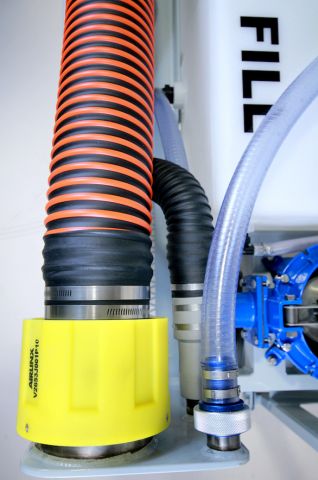

Unlike standard lav carts with dump valves, the LC-1616 features a dedicated waste pump and hose, allowing for controlled suction and discharge. The system uses an 8' crushproof, helix-reinforced hose that prevents kinks and splashing. This setup ensures a cleaner, faster, and more sanitary servicing process.

The LC-1616 combines rotationally molded polyethylene tanks with a powder-coated steel frame, ensuring exceptional strength and corrosion resistance. The translucent tanks enable operators to easily monitor fill levels, while the UV-protected material extends service life in outdoor conditions. These materials make the cart lightweight yet durable enough for daily aviation maintenance use.

Routine cleaning and inspection are essential to prolonging the service life of the LC-1616. Alberth Aviation recommends rinsing the tanks and hoses regularly with mild detergent to remove chemical residue and prevent corrosion. Additionally, all hoses, seals, and pumps should be checked for leaks or cracks and replaced as necessary to maintain optimal performance.

The LC-1616 measures approximately 52” long, 30” wide, and 28” tall, with a dry weight of around 150 lbs (68 kg). It features dual 16-gallon fill and waste tanks, making it compact yet capable of handling multiple aircraft before requiring emptying or refilling. Its small footprint makes it one of the most portable and space-efficient lav carts on the market.

The LC-1616 features a drain-back valve located near the hand pump, allowing fill fluid to flow back into the tank before disconnecting the aircraft coupling. This feature eliminates residual fluid drips and “blue water” spills, maintaining a cleaner workspace and reducing the risk of staining on ramps or hangar floors.

The LC-1616 is compatible with most business jets, turboprops, and small regional aircraft equipped with standard lavatory servicing connections. Its 1” anodized aluminum fill coupler and 4” waste coupler are designed to fit general aviation and corporate aircraft fittings, making it highly versatile across fleets.

The compact design of the LC-1616 allows it to be easily palletized and shrink-wrapped for storage or shipment. When stored, the sealed hoses and tanks prevent the escape of odors and chemical leakage. Its lightweight construction makes it easy to move between maintenance areas without special equipment.

Due to its compact, low-profile design, the LC-1616 can navigate tight hangars and ramp spaces that larger carts cannot. Its zero-turning-radius steering and ergonomic layout allow a single technician to perform full lavatory servicing quickly and efficiently. This makes it especially valuable for FBOs and maintenance operations that service multiple aircraft types on a daily basis.
