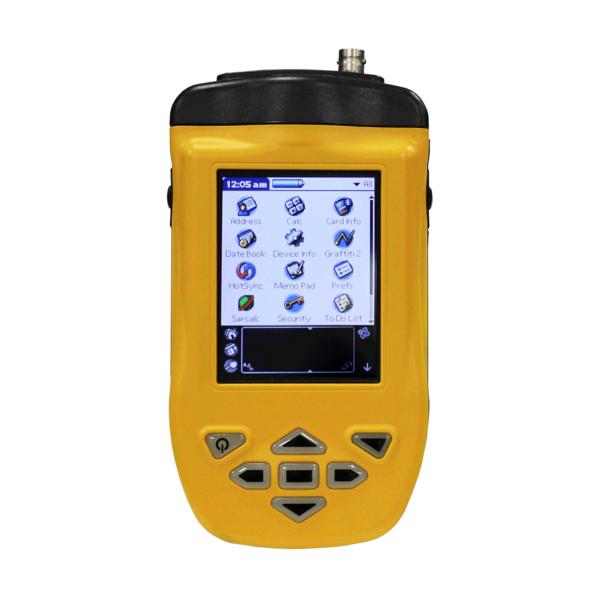

ARTEX TPS 8700 Handheld ELT Test & Programmer Set

The ARTEX TPS 8700 Handheld ELT Test & Programmer Set is a rugged, compact, and portable system that allows for the programming, verification, and testing of all ARTEX ELTs.

ELT Testing & Verification of ELT ID

Aircraft Emergency Locator Transmitters (ELTs) are required to have their unique identification numbers registered with the national authorities. The ARTEX Tester provides a simple method to verify and save the ARTEX ELT's ID after installation or reprogramming, or if the beacon should need to be registered again after an aircraft ownership change.

Test Data

The ARTEX Tester records all data in an internal database which can be backed up to your PC. The data can be viewed on the computer independently of the Tester, and it is time-stamped as proof of transmission and proper programming. The Tester can print via a USB interface to a PC. The printing capability requires a downloadable software program available at acrartex.com.

Programming

The ARTEX Programmer/Tester has all the aforementioned functionality of the Tester and it can also quickly and easily program the full line of ARTEX ELTs. It is capable of programming the desired protocol, NAV Data Baud Rate, and required information as outlined by Cospas-Sarsat through the application programming cable (included).

TPS 8700 Features

• Verification of ELT IDs and decoding of 406 MHz transmissions
• Testing for the presence of 121.5 MHz and 243 MHz transmissions
• Programming all ARTEX ELTs
• Data backup to PC
• Print capability via USB interface to a PC
• Software included with the product

TPS 8700 Specifications

• 406.025 Receiver Range: -60 dBm to + 36 dBm (5W signal)
• Decoding: Per Cospas-Sarsat C/S T.001 (Issue 3, Revision 5)
• Operating System: Windows CE 5.0 / Garnet OS 5.4
• Microprocessor: 400 MHz Samsung
• Memory (Volatile): 64 MB SDRAM
• Memory (Non-Volatile): 128 MB Flash
• Memory (Expansion):  Via MZIO bus standard
• Display – LCD Type: TFT high-brightness touchscreen
• Display – Resolution: 240 x 320 pixels
• Display – Viewable Area: 3.5"
• Display – Backlight: LED
• Communications – USB: 1 megabyte per second
• Communications – Serial (RS232): 1,200 to 115,200 bits per second
• Communications – Infrared (IrDA): 1,200 to 115,200 bits per second @ 1 meter
• Communications Connector: 13 pin – Custom gold-plated pins
• Battery Type: Lithium-ion, custom battery pack
• Battery Voltage: 7.4V nominal
• Battery Capacity: 1,700 mAh
• Battery Protection: Overcharge/discharge & thermal
• Battery – Charging Current: 1.2A (maximum) – via cradle (not provided) or communications cable
• Battery – Charging Input: 12V DC nominal (use only charger supplied)
• Dimensions (without Antenna): 6.7" L x 3.7" W x 1.53" H (170 x 94 x 39 mm)
• Weight (with Antenna): Approx. 1 lb. (456 g)
• Operating Temperature: -10°C to 60°C (14°F to 140°F)
• Storage Temperature: -20°C to 65°C (-4°F to 149°F)
• Relative Humidity: 5% to 90%
• RFI / EMC: CSPR22, CSPR24 (RF emissions & ESD immunity)
• FCC: Part 15, Class A
• CE: EU EMC Directive
• Sealing: IP67 (submersible to 1 meter – 30 minutes)
• Current Consumption:
  • Power On: 130 mA typical (Meazura only – backlight off)
  • Full System: 60 mA typical (backlight on)
  • Sleep Mode: 7 mA typical
• Warranty: ARTEX limited avionics warranty for 12 months
