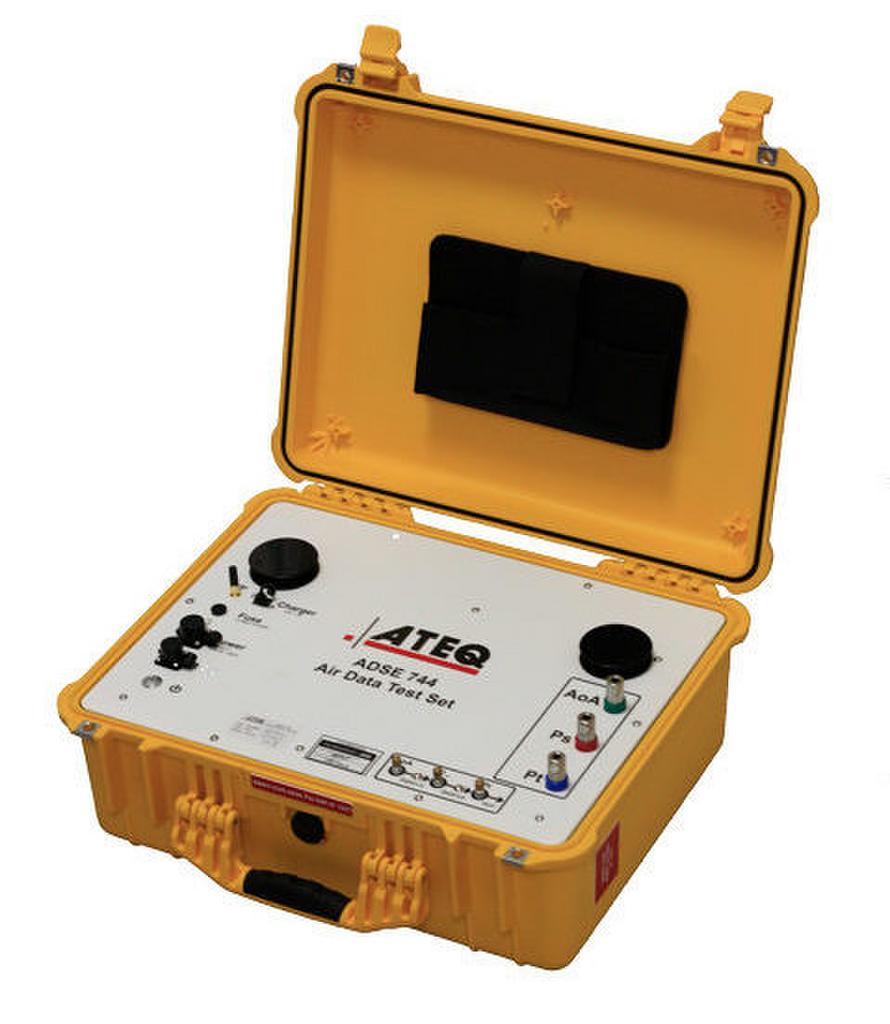

ATEQ Aviation ADSE744 Pitot-Static Tester/Air Data Test Set
Create yours now for free.
Need a Quote?
The ATEQ ADSE744 is a next-generation pitot-static and angle of attack (AoA) tester designed to support modern aircraft equipped with integrated air data systems. Engineered for flightline testing of civil, military, fixed-wing, and rotary-wing aircraft, this portable air data test set allows for full verification of pitot, static, and AoA systems in a single mobile platform. Housed in a rugged, weatherproof case and controlled via a wireless touchscreen tablet, the ADSE744 enables precise and efficient simulations of airspeed, altitude, and differential pressure for AoA testing – all from the cockpit or flight deck.
This tester is available in two testing setups:
- Low-speed range (0 to 350 kts) instead of 0 to 800 kts range
- EPR / Cabin Pressure / Outflow Valve
Key Features
- Performs full pitot-static and angle of attack (AoA) testing using three independent pressure channels
- AoA channel simulates differential pressure conditions for advanced testing of modern pitot probes
- Altitude simulation from -2,300 to 60,000 feet and airspeed generation up to 800 knots
- Includes wireless remote control unit (RCU) with watertight touchscreen and Wi-Fi or cable connectivity
- RVSM-compliant with programmable flight envelopes and automated leak testing functionality
- Displays key flight parameters in real time, including altitude, airspeed, Mach, and AoA values
- Supports test schedule programming with password protection for repeatable and secure operations
- Built-in vacuum and pressure pumps, suitable for standalone operation on the tarmac or in the hangar
- Fully sealed enclosure meets MIL-STD-462D for EMC compliance and extreme weather resistance
- Delivered with hoses, electrical cables, Wi-Fi remote tablet, storage bag, and calibration-ready
With its advanced AoA simulation capability and user-friendly wireless interface, the ADSE744 is an ideal solution for aviation maintenance professionals seeking a complete and portable pitot-static test set for modern aircraft systems.
Training available by request. Reach out to one of our aviation specialists to schedule a training.
| General Information | |
|---|---|
| Part # | ADSE744 |
| Manufacturer | ATEQ |
| Shipping Information | |
|---|---|
| HTS | 9026204000 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Airspeed (1) | Range: 0 to 800 kts, Accuracy: ±0.5 kt at 50 kts |
| Airspeed Mach | Range: 0 to 4.0 Mach, Accuracy: ±0.0006 M at 0.8 M at 25,000 ft |
| Altitude | Range: -2,300 to 60,000 ft, Accuracy: ±3 ft at 0 ft |
| Altitude Rate | Range: 100 to 6,000 ft/min, Accuracy: ±10 ft or ± 1 % |
| Angle of Attack | Range: ±1000 DhPa, Accuracy: ±0.35 DhPa |
| AoA Sensor (2) | Range: 72 to 2,000 hPa, Accuracy: ±0.30 hPa |
| Dimensions | 20.7" x 8.4" x 17.2" (52.5 x 21.6 x 43.5 cm) |
| Ease of Use | Wi-Fi, remote, color LCD touchscreen, integrated bag for cables and hoses |
| Housing | Completely weatherproof, meets EMC requirements MIL-STD-462D |
| Pitot Sensor (2) | Range: 0 to 1,455 DhPa, Accuracy: ±0.30 DhPa |
| Power Supply | 90V/264V AC from 50 to 400 Hz |
| Static Sensor (2) | Range: 72 to 1,100 hPa, Accuracy: ±0.13 hPa |
Customers also viewed
AIRCRAFT COMPATIBILITY
| Compatible Aircraft* |
|---|
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The ATEQ ADSE744 is designed to support a wide range of aircraft, including high-performance civil jets, military aircraft, and both fixed-wing and rotary-wing platforms. Its versatility comes from its ability to handle different electrical power supplies and pressure systems, ensuring compatibility across multiple fleets. This makes it an ideal tool for MRO facilities, airlines, and military operations with mixed aircraft types.
The ADSE744 enhances efficiency by allowing a single operator to run tests directly from the cockpit or flight deck using its large wireless touchscreen controller. The on-screen help function simplifies procedures and reduces the risk of errors. With built-in pumps and automated self-checks, the tester minimizes setup time and streamlines routine testing tasks.
Reduced Vertical Separation Minimum (RVSM) compliance requires exceptional accuracy in measuring altitude and pressure. The ADSE744 meets these standards by offering high-resolution readings and precise control of static and pitot pressures. This ensures that operators can safely perform RVSM checks without additional equipment.
The unit features a programmable leak test function, enabling operators to verify system integrity under controlled conditions. Users can set parameters in advance, and the tester automatically monitors results, ensuring accurate and repeatable leak measurements. This feature reduces the chance of undetected leaks, which could compromise flight safety.
The ADSE744 is designed for challenging flightline environments, operating reliably between 23°F and 122°F (-5°C to 50°C). It can also be safely stored in conditions ranging from -4°F to 140°F (-20°C to 60°C). The weatherproof housing protects it from dust, moisture, and rough handling, making it dependable for global operations.
Weighing about 40 lbs (18 kg) and housed in a compact weatherproof case, the ADSE744 is easy to transport around airports and hangars. It also comes with an integrated bag for pressure hoses and cables, ensuring that everything needed for testing is stored in one convenient location. This portability makes it particularly valuable for flightline and mobile service teams.
Routine maintenance for the ADSE744 is limited to calibration and external cleaning. ATEQ recommends recalibration every 12 months to maintain accuracy. This low-maintenance design helps operators reduce downtime and service costs.
The ADSE744 delivers highly accurate results, such as altitude measurements within ±3 ft at sea level and airspeed accuracy within ±0.5 kt at 50 kts. Its angle of attack and static pressure measurements are also designed to meet tight tolerances required in modern aviation. This level of precision ensures compliance with regulatory standards and reliable test outcomes.
Yes, the ADSE744 can be configured with optional features such as extended AoA ranges, engine pressure ratio (EPR) measurement, and cabin pressure/outflow valve testing. This adaptability makes it suitable for operators with unique testing requirements across different fleets. Custom software or hardware requests may also be accommodated by ATEQ.
The tester comes standard with Wi-Fi capability, enabling remote control via its touchscreen interface. This allows operators to work inside the cockpit without physically returning to the test set during procedures. By reducing back-and-forth movement, Wi-Fi connectivity improves testing speed and convenience.
The ADSE744 was designed with ease of use in mind, featuring a full-color touchscreen interface with intuitive menus. Test schedules can be pre-programmed and password-protected, reducing operator error and ensuring consistency across teams. These usability features make it suitable even for less experienced technicians.
Each ADSE744 package includes a Wi-Fi remote control, Staubli/AN connectors, flexible hoses, and a durable waterproof transport case. A special bag for cables and hoses ensures accessories stay organized and protected. These included items allow operators to begin testing immediately without requiring extra purchases.
