ATEQ EZ-0085 – AX 6000 Portable Milliohmmeter Extended Kit
Need a Quote?
The ATEQ AX 6000 Portable Milliohmmeter Extended Kit is the ultimate turnkey solution for low-resistance bonding measurements across aviation, defense, and aerospace applications. Building on the AX 6000’s proven precision and portability, this comprehensive kit includes all key accessories required for advanced field and hangar testing – including multiple probe types, battery packs, software, and a rugged case system. Designed to support bonding verification per current aircraft specifications, this package equips technicians with everything needed for efficient, high-accuracy testing on aircraft, helicopters, and military vehicles.
Key Features
- Performs low-resistance measurements from 1 μΩ to 6 Ω using up to 10A with 4-wire Kelvin method
- Manual or auto-ranging capability with memory for up to 2,000 readings
- Ergonomic and lightweight design (< 2 kg) ideal for shoulder or chest-mounted operation

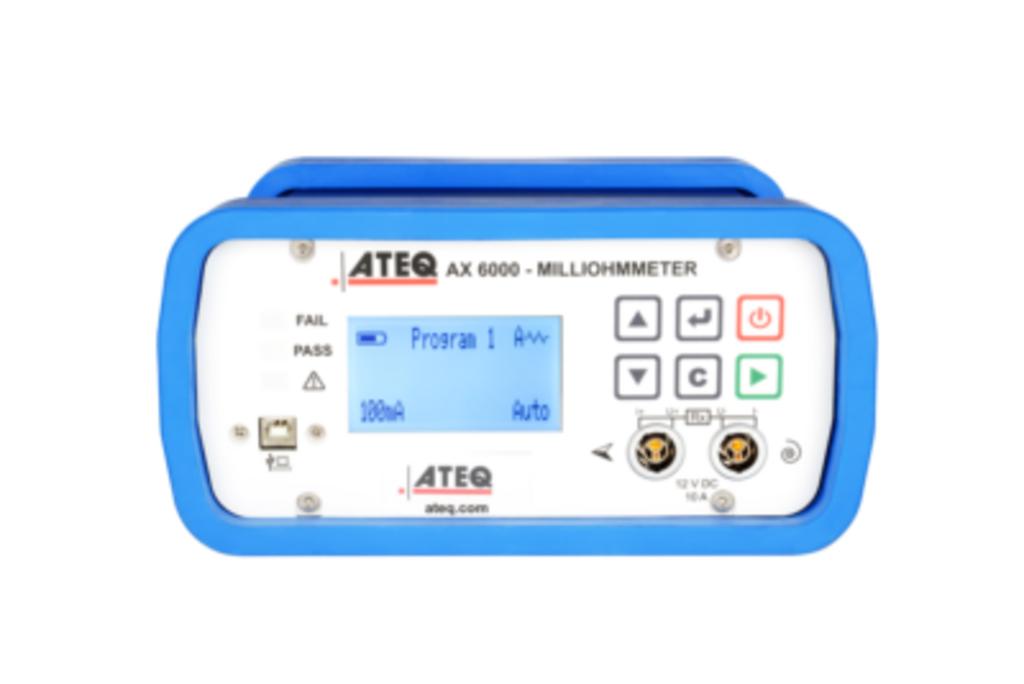

- Large backlit LCD and intuitive keyboard for efficient field use
- Accuracy down to ± (0.1% of measured value + 6 μΩ), with resolution as fine as 1 μΩ
- Ideal for maintenance, production, and certification of critical electrical bonding across all aircraft types

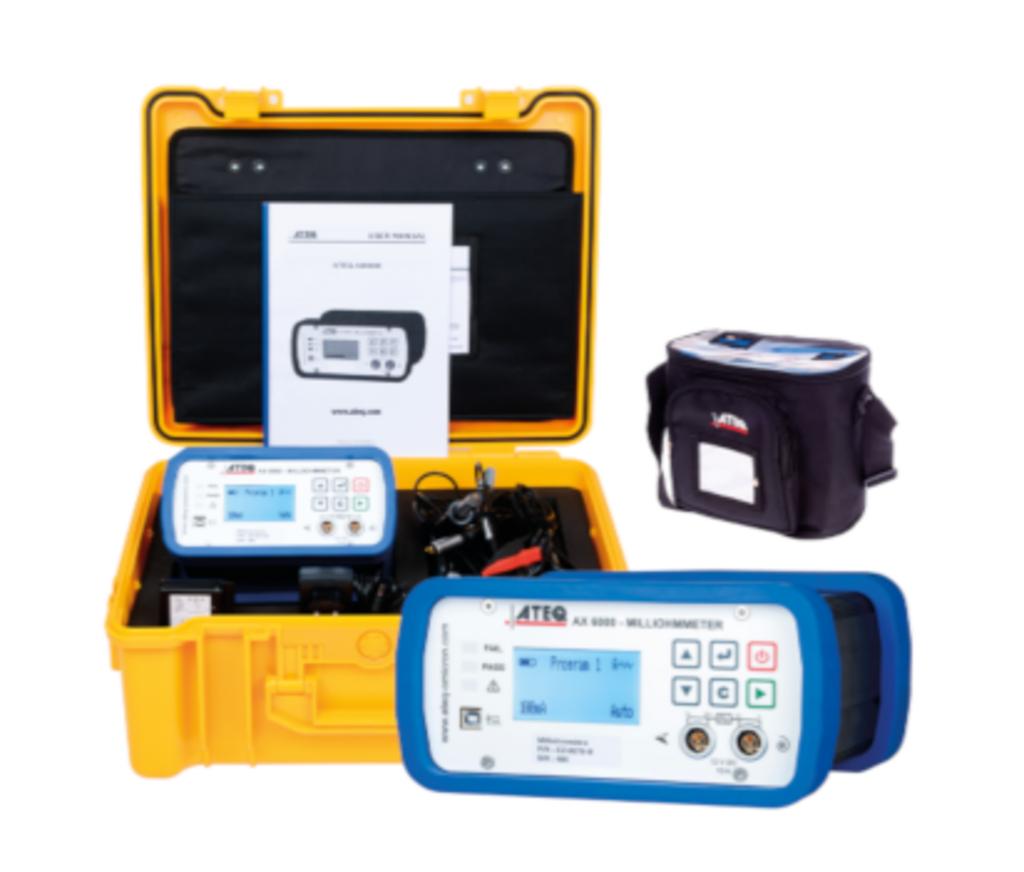

Kit Contents
- EZ-0078-B – AX 6000 Milliohmmeter
- EG-0266-B – Special Analyzer Kelvin Probe Set
- EG-0459-A – 50 x 13 Probe (short metallization cord)
- EG-0460-A – 100 x 13 Probe (long metallization cord)
- MZ-0257-B – (x2) Probe Head Adapters for x 13 Probes
- EG-0264-B – Medium Kelvin Clip with 2 m Cable
- 6270056 – USB Cable (AX-PC Connection)
- E5-0014-A – AC/DC 24V Adapter (CE Plug)
- TZ-0098-A – Battery Backs (x2)
- MB-0147-C – AX Branded Soft Shoulder Bag
- MB-0151-A – Yellow Rugged Protective Case
- D2-0119-B – User Manual
- L2-0009-A – PC Software
Engineered for technicians who need a complete, ready-to-deploy bonding measurement system, the ATEQ AX 6000 Extended Kit offers unmatched flexibility, accuracy, and compliance for demanding aviation and aerospace environments.
Available Accessories:
- TZ-0098 - Replacement Battery Pack
- 6440242 - AX DC 24V Adaptor CE Plug
- MB-0147 - AX Shoulder Bag
- MB-0151 - Yellow Hard Case
- 6270056 - 1m USB Cable
- EG-04XX - Test Probe Leads for the AX 6000 - 50 x 13 to 150 x 13 Test Probe Options Available
- EG-0718 - Concentric Kelvin Probe
- MZ-0257 - Head Probe Thin Nozzle (diam. 13)
- MZ-0257 - Head Probe Thin Nozzle Diam 13
- MZ-0263 - Round Tips Diam 13 Head Probe
- MZ-0281 - Mobile Concave And Fixed Round Tips Diam 13 Head Probe
- MZ-0282 - Mobile Round And Fixed Concave Tips Diam 13 Head Probe
- EG-0269 - Concave And Fixed Round Tips Diam 13 Head Probe
- Kelvin Clip - 2m Cable - XS, M, or L Kelvin Clip
- EG-0833 - 2 Pins Contacts Clip
- EG-0266 - Special Analyze Kelvin Probe Set
- Extender Cable - 5m or 10m Cable
- EG-036X - Extension Cable on Cable Reel - 25m, 50m, or 90m Cable
- L2-0009 - PC Software
Training available by request. Reach out to one of our aviation specialists to schedule training.
| General Information | |
|---|---|
| Part # | EZ-0085 |
| Manufacturer | ATEQ |
| Shipping Information | |
|---|---|
| HTS | 9030390100 |
| ECCN | EAR99 |
Customers also viewed
AIRCRAFT COMPATIBILITY
This item is for use on all aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
The extended kit includes the AX 6000 unit, battery pack, AC/DC adapter, probes, Kelvin clips, specialized Kelvin lead sets, cable reels, and a protective yellow safety case. It also comes with a front bag for hands-free use and various probes for different applications. This comprehensive package ensures technicians have everything needed for both standard and advanced bonding resistance tests.
The extended kit comes with a rugged, weatherproof yellow safety case that is shock-resistant and large enough to carry the AX 6000, probes, clips, manuals, and cables. Measuring 16.9” x 20.9” x 9.1” (43 x 53 x 23 cm), the case is designed to withstand field conditions while keeping accessories organized. A front bag is also included, allowing technicians to operate the tester hands-free while moving around the aircraft.
Unlike the starter kit, the extended kit includes a broader range of Kelvin clips, Kelvin probes, specialized analysis probes, and longer cable options. It also adds accessories like cable reels up to 90 meters, enabling technicians to conduct bonding resistance measurements on larger aircraft or complex structures. These extras make it particularly useful for MROs and airline maintenance teams with demanding test environments.
The front bag secures the AX 6000 across the chest, leaving both hands free for probe placement and adjustments. This design places the large backlit LCD screen at eye level, making it easier to read test data without constantly repositioning the unit. The ergonomic setup improves efficiency during inspections on ramps or in hangars.
The extended kit includes Kelvin probes with fixed and moving pins, which simplify accurate measurement by automatically starting when the fixed pin touches the part being tested. It also offers a special analysis Kelvin probe set (EG-0266) with three electrode tips and an alligator clip for very precise measurements. These options expand testing capabilities and allow flexibility for different surfaces and component types.
The extended kit offers cables in multiple lengths, including 5 m, 25 m, 50 m, and 90 m cable reels. These extended lengths are essential when testing large aircraft or structures where access points are spread across significant distances. Having a variety of cable lengths available reduces the need to reposition the tester frequently.
The extended kit combines 4-wire Kelvin measurement techniques with specialized probes and high-current capabilities up to 10A, minimizing resistance from leads and connections. This ensures reliable micro-ohm and milliohm readings, critical for verifying aircraft bonding integrity. The precision accessories in the kit help reduce operator error and ensure consistent results.
The Kelvin clips, probes, and cables in the extended kit are engineered for aviation environments, featuring robust construction and protective housings. The yellow case and bag are also designed for repeated handling in field conditions, with resistance to vibration, impacts, and moisture. This durability helps extend tool life and reduces long-term replacement costs.
The AX 6000 and its accessories comply with CE 61010-1, CEM 61326-1, and 55011 standards, ensuring electrical safety and electromagnetic compatibility. Using compliant equipment helps organizations meet aviation quality assurance and safety requirements, making the extended kit suitable for regulated environments worldwide.
The AX 6000 unit in the extended kit operates in temperatures from 32°F to 122°F (0°C to 50°C) and can be stored between -4°F to 140°F (-20°C and 60°C). It tolerates relative humidity up to 90% non-condensing, ensuring reliable performance in hangars, on ramps, and outdoor field conditions. These specifications make it suitable for global aviation operations.
The extended kit’s inclusion of long cable reels, specialized probes, and a rugged protective case makes it especially well-suited for large aircraft, where access points are spread out and durability is key. It allows technicians to conduct bonding resistance tests without repositioning the tester multiple times, saving both time and effort. These advantages make it a practical solution for MROs and airline service centers.
Regular calibration ensures that the AX 6000 and its probes maintain accurate bonding resistance readings across all ranges. Over time, minor sensor drifts or cable wear can affect results, potentially leading to incorrect maintenance decisions. Annual calibration helps guarantee compliance with aviation standards and supports reliable, repeatable testing.
