Barfield 101-00164-405 – Model 1811D-405 Pitot-Static Test Unit

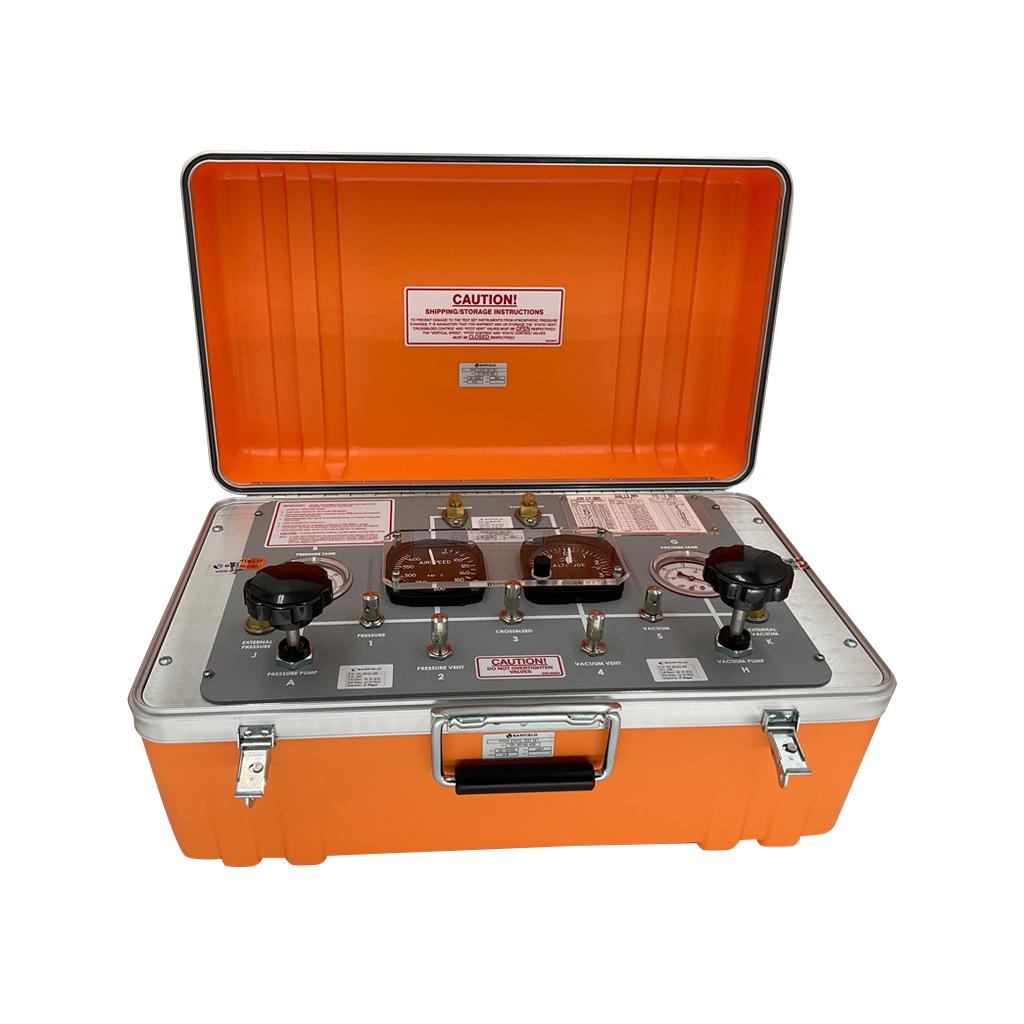

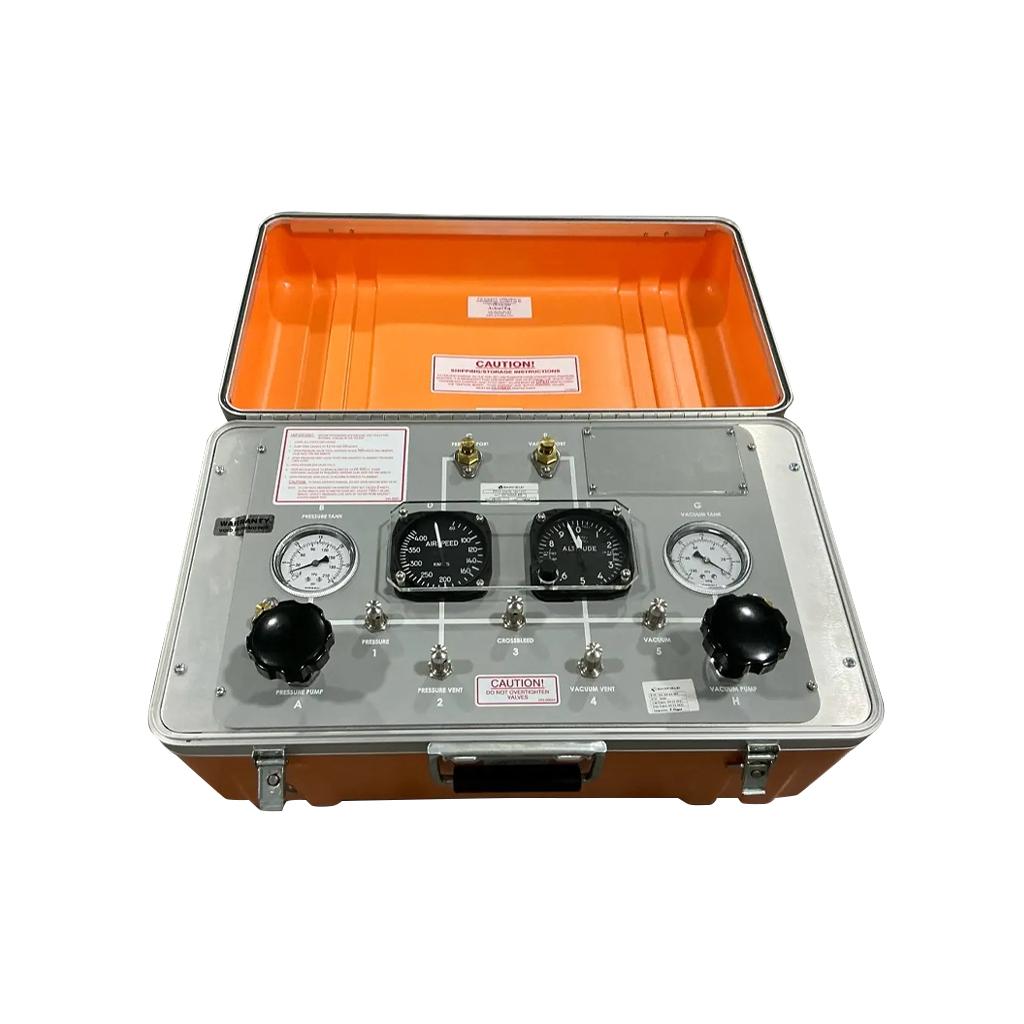

Beyond leak checks, the 1811D-405 boasts two analog instruments – an altimeter and an airspeed indicator – capable of readings up to -420 knots and 35,000 feet. This functionality allows on-site verification of these crucial instruments, ensuring pilots have reliable data during flight.

The Barfield 1811D-405 is affordable, making it an ideal choice for new maintenance facilities or those seeking a budget-conscious option. Despite its cost-effectiveness, it doesn't compromise functionality, offering a comprehensive solution for maintaining the integrity of an aircraft's air data systems.

Features

• Ideal for flightline calibration checks and troubleshooting
• Performs precision pitot-static leak tests
• Two-instrument calibration with optimal ranges
• Correction cards for all analog instruments
• Fully portable and self-contained – no electric or external pressure sources needed

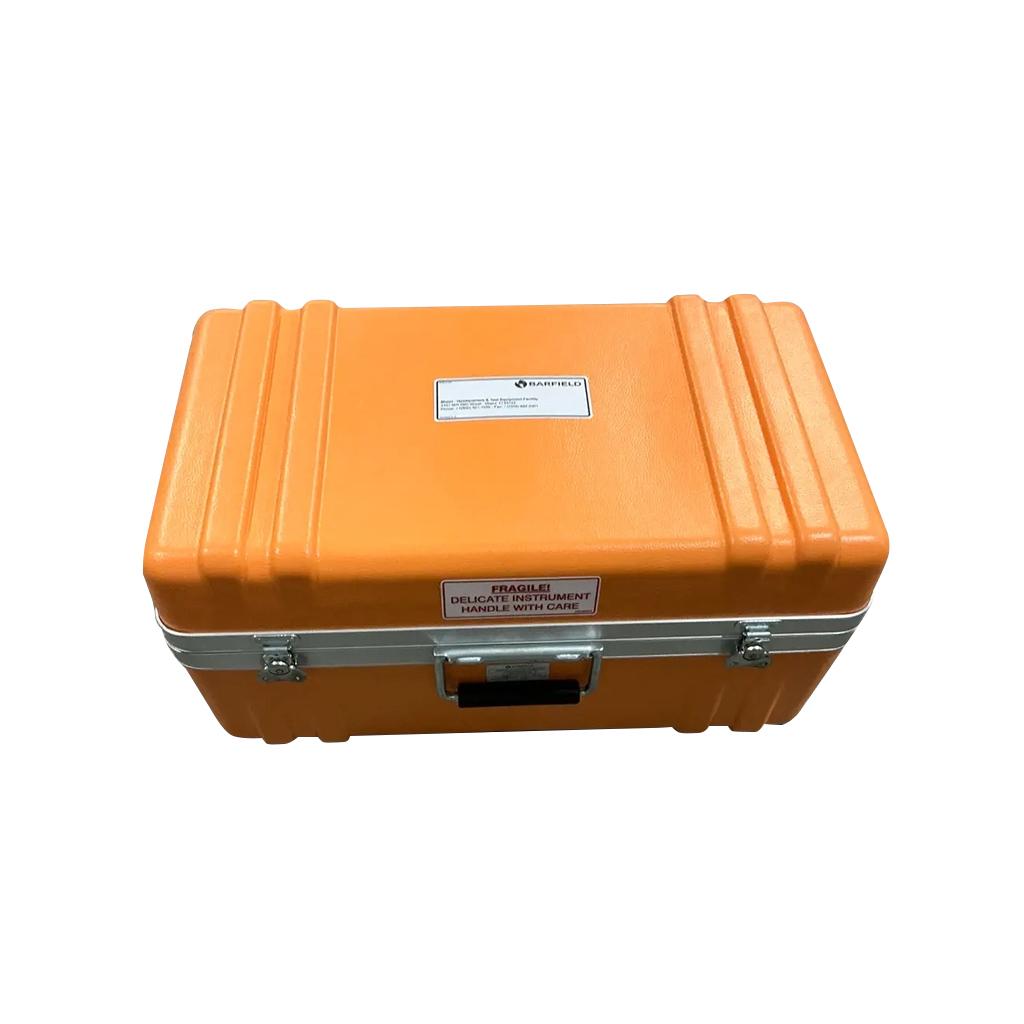

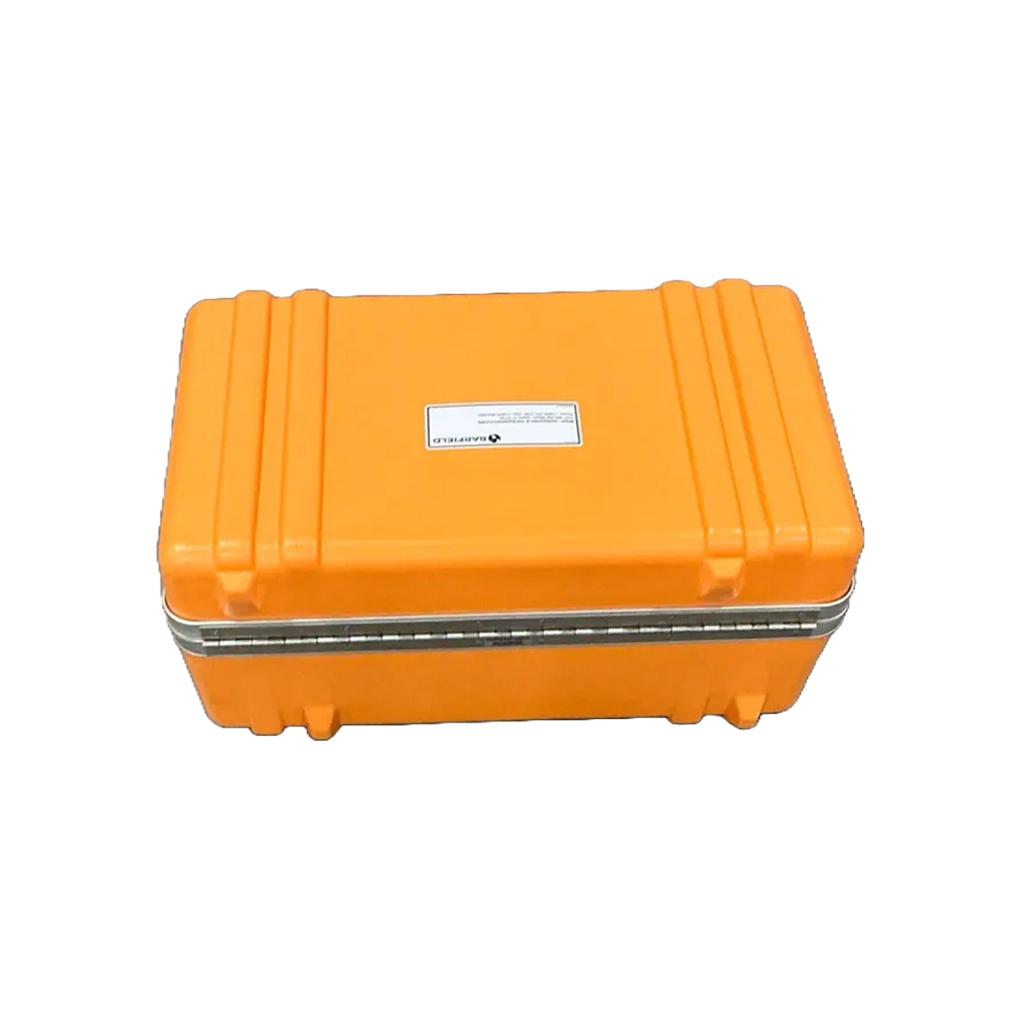

• Lightweight plastic case for portability

Accessories

• 115-00056 – Hose Kit – two 25' hoses and pitot adapter (included with new testers)
• 115-00218 – Hose Kit – two 40' hoses and pitot adapter
• 115-00057 – Pitot Tube Adapter Assembly – 1/2" inner diameter
• 22423F – Static Port Adapter Kit

Specifications

• Dimensions: 11.3" H x 18" W x 12" D (28.7 x 45.7 x 30.5 cm)
• Weight: 18 lbs. (8.2 kg)
