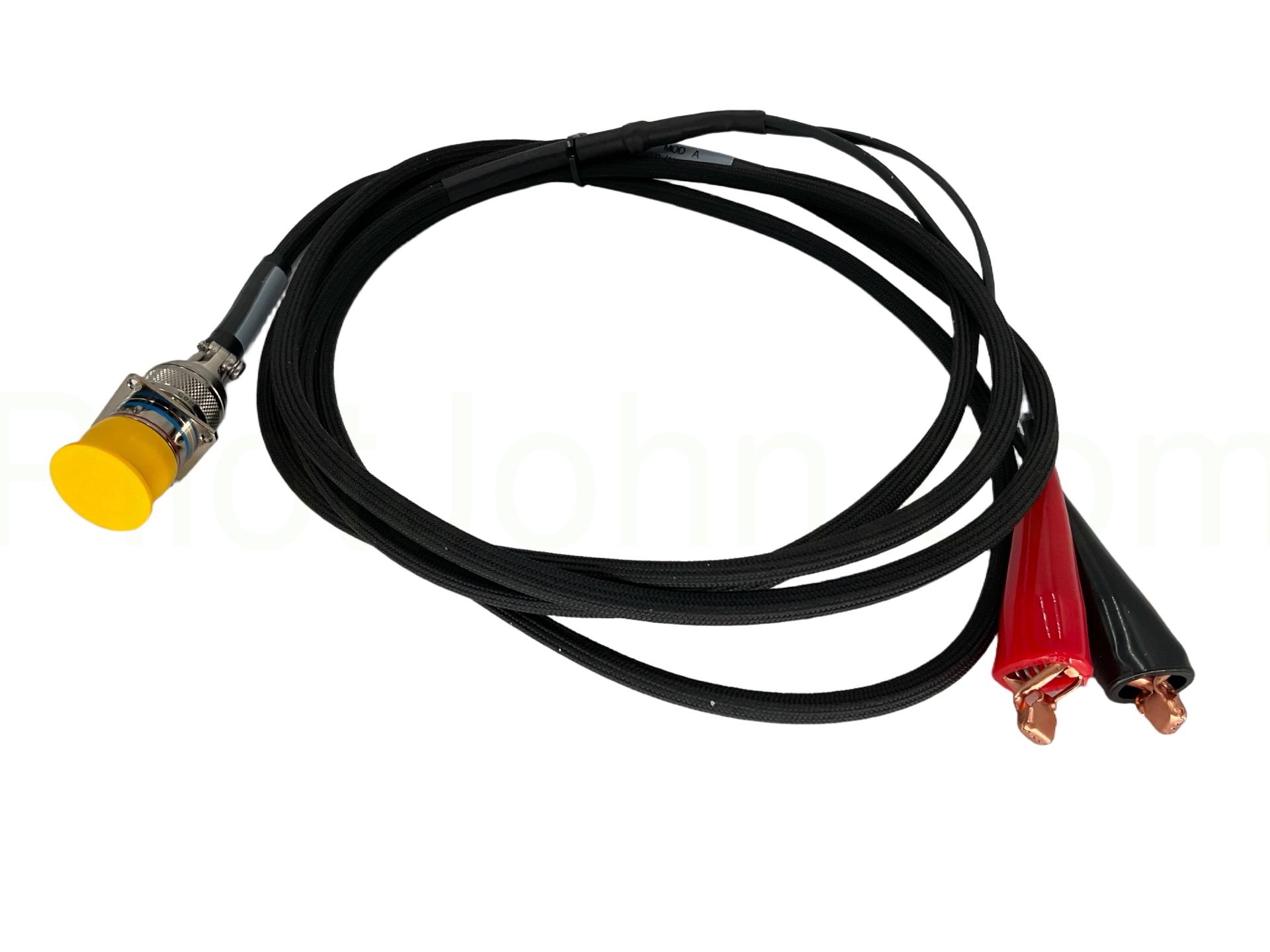

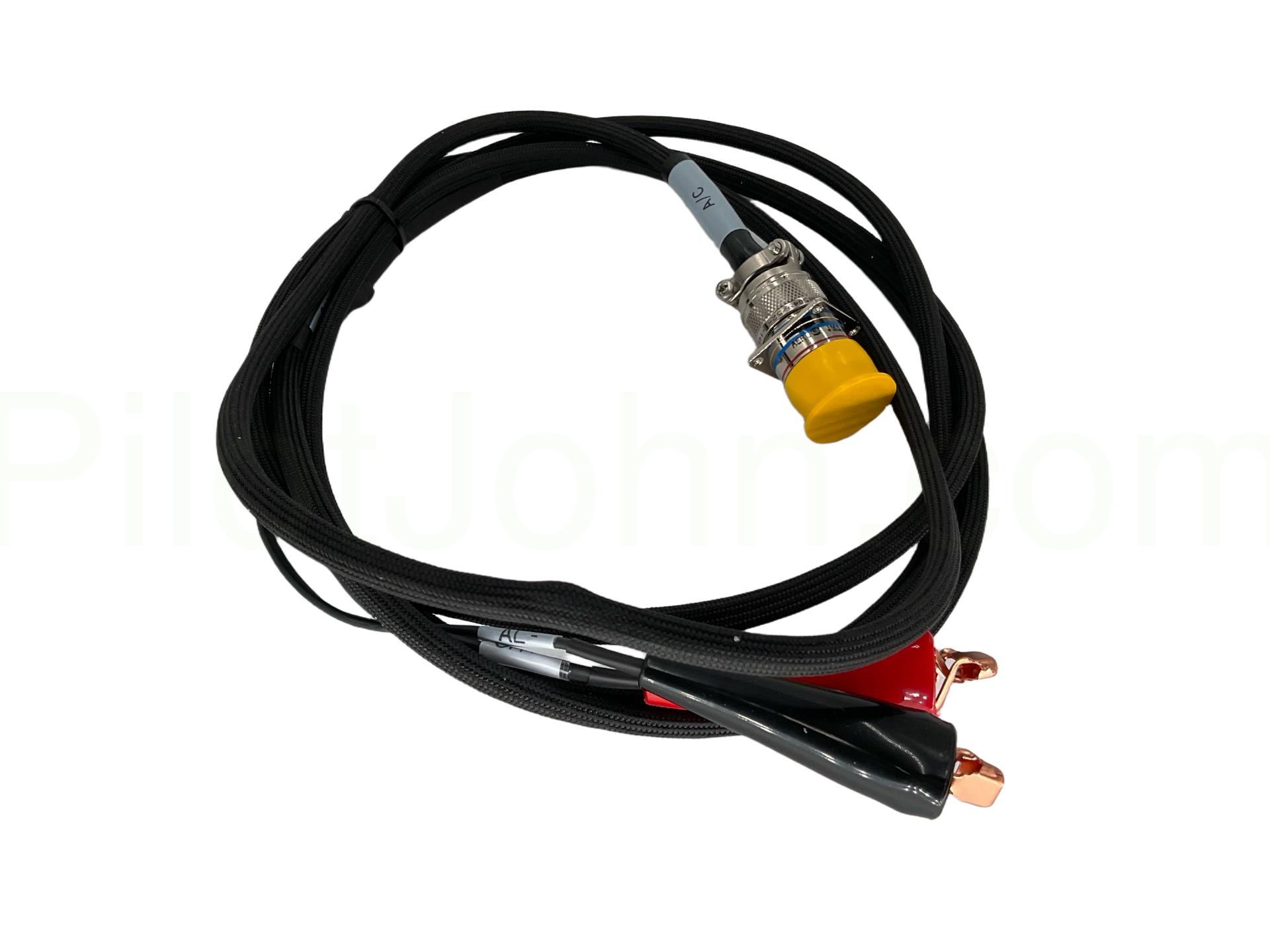

Barfield 101-00907 Fuel Return Valve Adapter Cable for IAE V2500 Engines

The Barfield 101-00907 adapter cable connects the Barfield TT1000A Fuel Quantity Test Set to the V2500 engine’s fuel return valve system. It allows technicians to simulate and monitor electrical responses during system diagnostics and calibration procedures. This connection ensures accurate testing of the fuel return valve function without the need to interface directly with the aircraft’s onboard electronics.

This adapter cable is specifically designed for use with the Barfield TT1000A Fuel Quantity Test Set, a precision instrument used to evaluate and troubleshoot aircraft fuel quantity systems. The cable provides the proper pin-out configuration for interfacing the test set with the V2500 engine fuel control and return valve assembly, ensuring accurate measurements and dependable results.

The Barfield 101-00907 is primarily used for aircraft powered by the IAE V2500 engine, such as select Airbus A320 family aircraft. It provides a reliable means to perform maintenance checks and electrical tests on the fuel return valve without disturbing the main fuel system wiring. This compatibility makes it essential for operators and MROs servicing V2500-equipped fleets.

Yes, when testing the fuel return valve system with the TT1000A test set, the 101-00907 adapter cable is required. It serves as the dedicated interface between the test unit and the engine system, enabling simulation and continuity testing. Without it, accurate validation of the valve’s electrical performance cannot be achieved.

The 101-00907 adapter simplifies complex wiring connections by providing a plug-and-test interface, reducing setup time, and minimizing wiring errors. Its secure connectors ensure stable electrical continuity during testing, allowing for consistent and repeatable results. This efficiency enables maintenance teams to complete inspections more quickly while maintaining high accuracy.

No. The 101-00907 adapter cable has a specific configuration designed for the V2500 fuel return valve and is not interchangeable with other Barfield fuel quantity adapter cables. Each cable type is engineered with unique pin layouts and shielding properties to match the electrical characteristics of the system it supports.

Before each use, technicians should inspect the cable for connector wear, continuity integrity, and insulation damage. Barfield recommends storing it in a protective case and avoiding excessive bending or strain during setup and use. Regular continuity checks ensure reliable test results and prolong the adapter's lifespan.

The adapter cable itself does not require calibration, as it does not alter the electrical signals. However, Barfield advises verifying the cable’s performance during the TT1000A test set’s annual calibration cycle to confirm it meets factory electrical continuity standards. This ensures that all components in the test setup perform within certified parameters.

To perform a test, connect the adapter cable between the  TT1000A test set output port and the fuel return valve connector on the engine. Secure the fittings to prevent loosening during operation. Once connected, technicians can monitor electrical response and valve activation as part of the standard fuel system evaluation.

Before connecting the cable, ensure that fuel system power is isolated and that all standard aircraft maintenance safety procedures are followed. The area should be properly grounded to prevent static discharge. Always verify connector alignment and locking to avoid damage to test equipment or aircraft wiring harnesses.
