BatteryMINDer® 1500-OBD2 12V 1.5A Charger/Maintainer/Desulfator W/Smart Technology® W/OBD2 Connector
Features & Benefits:

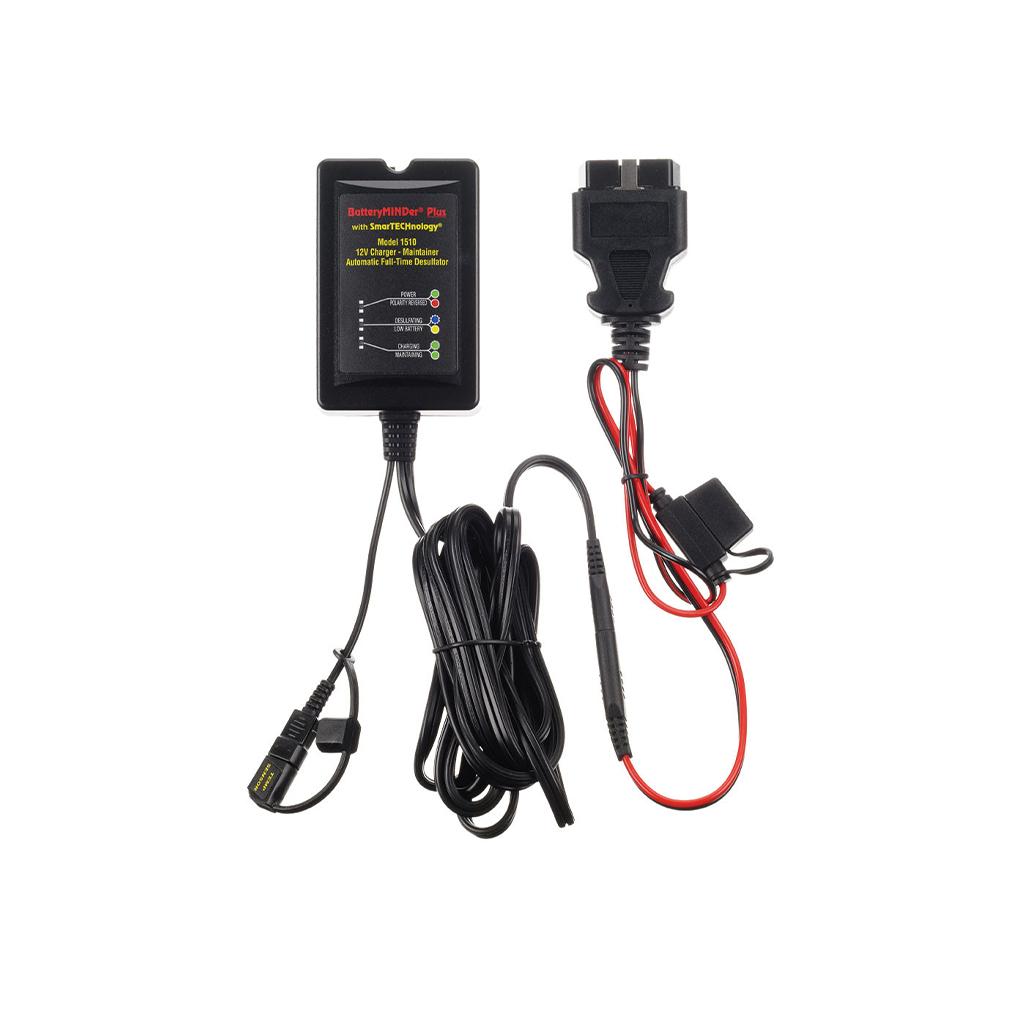

• SAE to OBD2 Connector enables you to keep your battery maintained via your vehicle’s onboard OBD2C Connector.
• Installed ambient temperature sensor for 0°F–130°F operating range ensures the battery will never be overcharged or undercharged regardless of temperature extremes.
• Extends battery life up to four times when compared to new batteries not being properly charged-maintained over their lifetime.
• Maintains up to four batteries at a time (6 or 12 Volt batteries connected in parallel) Requires use of BatteryMINDer® Y-Connectors 210AY (sold separately) or customer supplied 18-Gauge insulated wire.
• FCC Certified.
• Worldwide 90-240 VAC 47-63 Hz input.
• Recovers weak batteries.
• Automatic Full-Time high frequency (not high voltage) pulse type desulfation.
• Reverse polarity, short circuit and over temperature protection.
• Energy Star rated, which means it meets strict energy efficiency guidelines set by the US Environmental Protection Agency and the Department of Energy.
• Certified by the California Energy Commission as meeting the current efficiency standards.
• Never connect two or more batteries together before fully charging each and checking their condition. Failure to fully charge each battery and check their condition can result in a serious safety hazard.
• Including but not limited to: Maintenance-free Flooded (filler cap) and sealed, Starter, Deep Cycle, Marine, and Hybrid. Not for use with aircraft batteries. For information about BatteryMINDers designed for use with aircraft batteries, see our Aviation Application page.
• Not for use with specialty sealed AGM batteries, except for Optima brand sealed AGM
What's In the Box

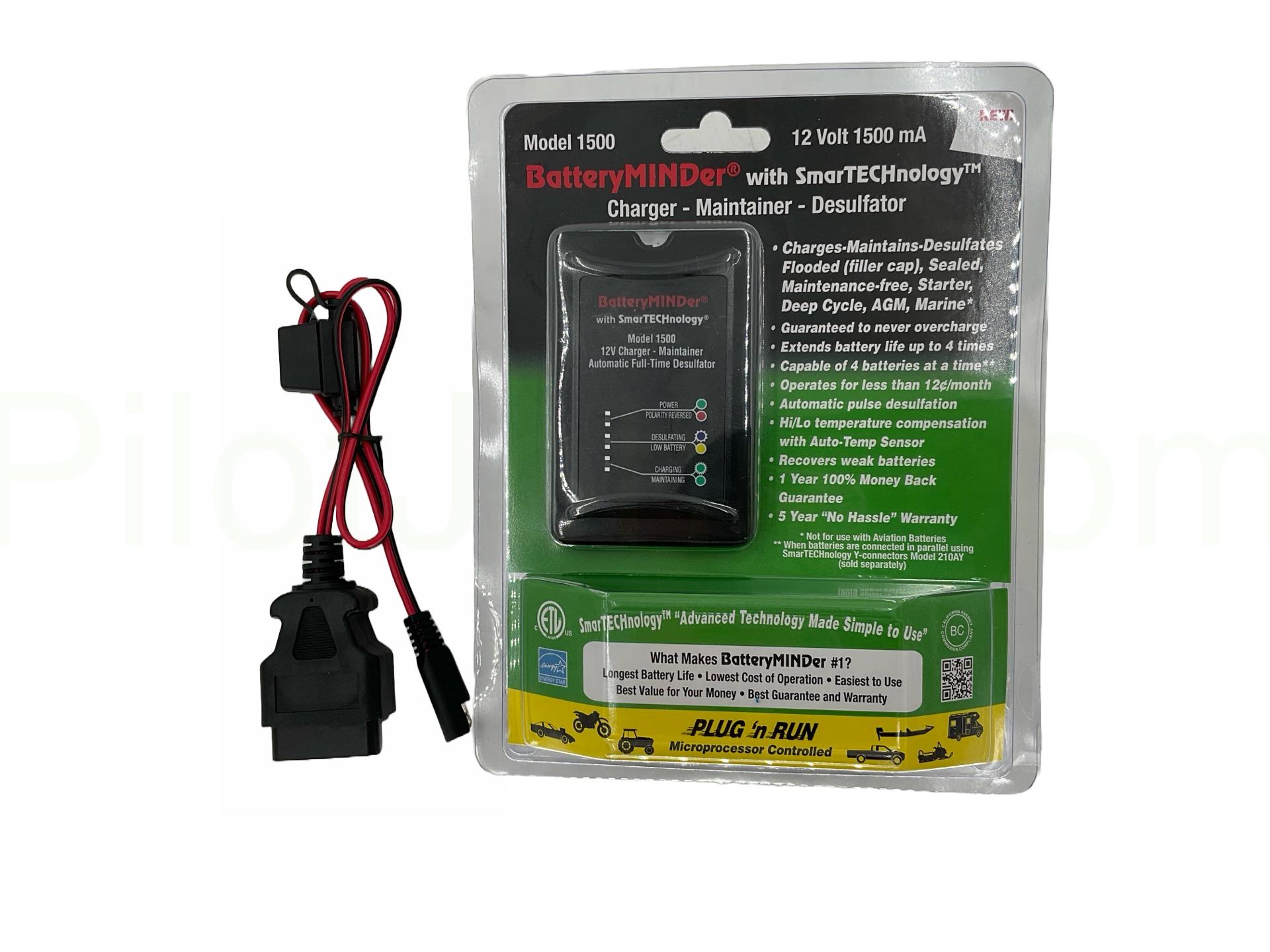

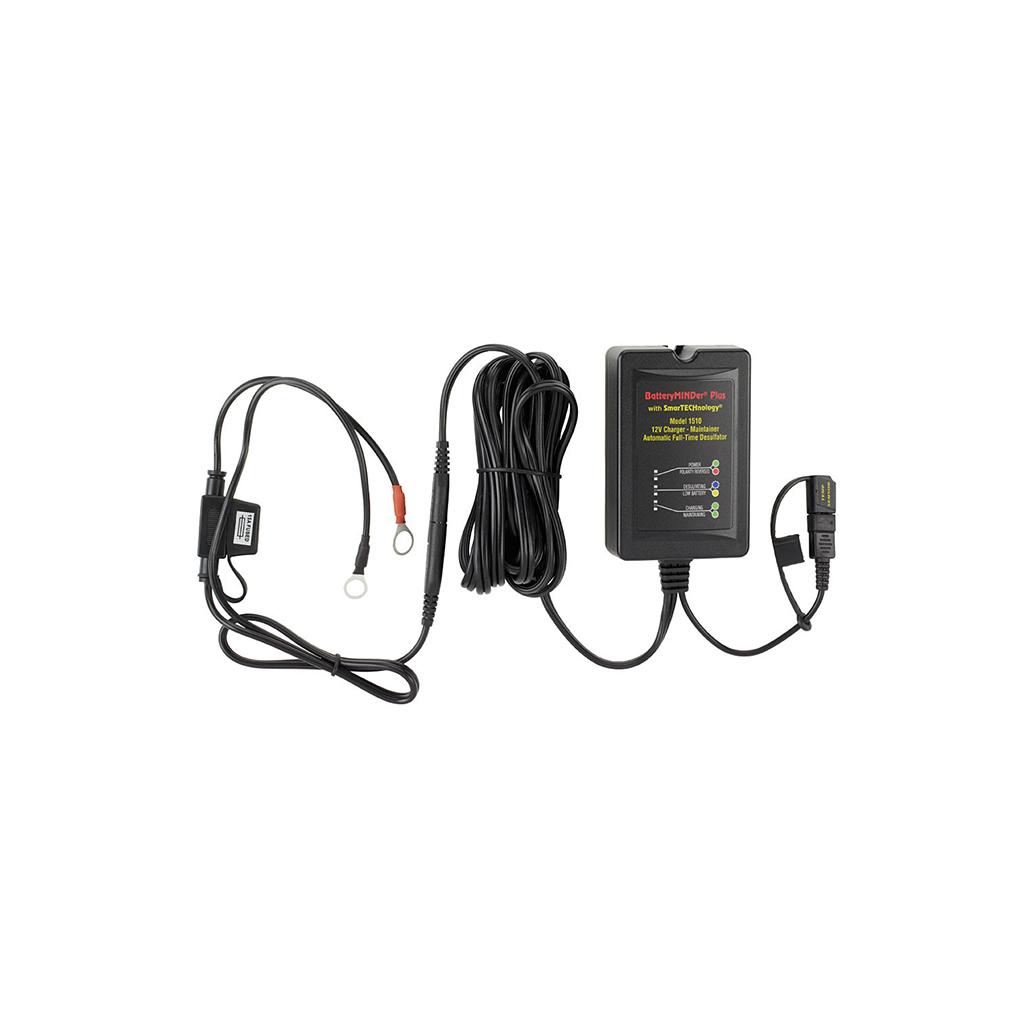

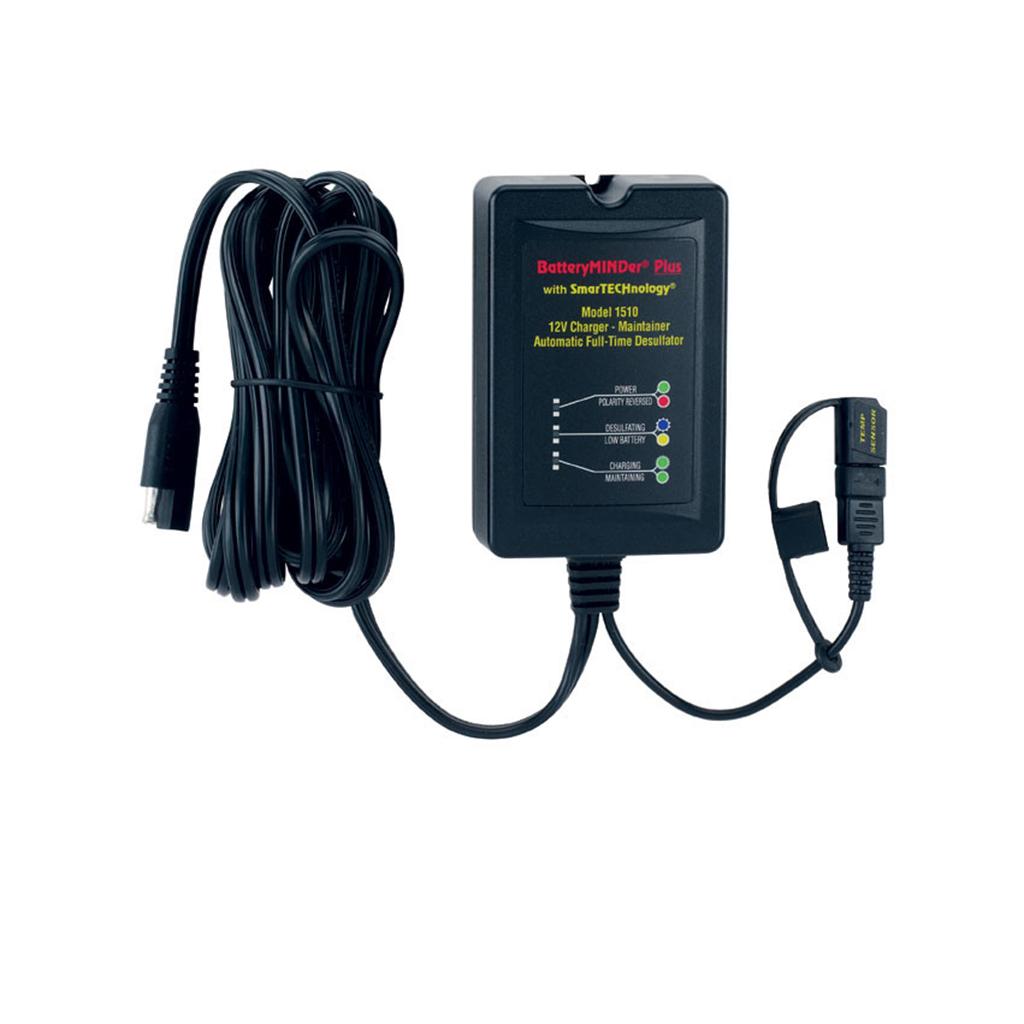

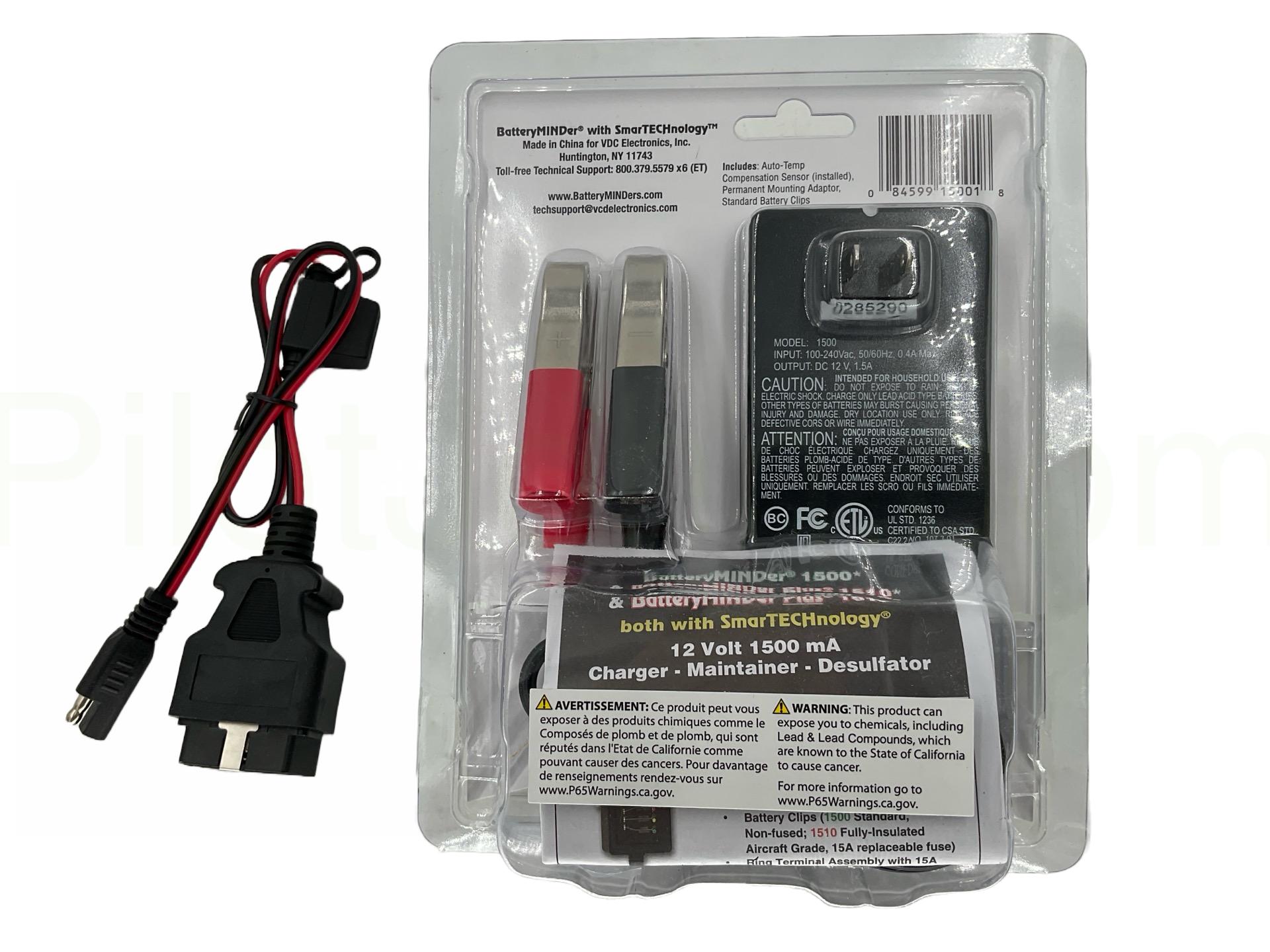

• Model 1500 Charger-Maintainer-Desulfator system

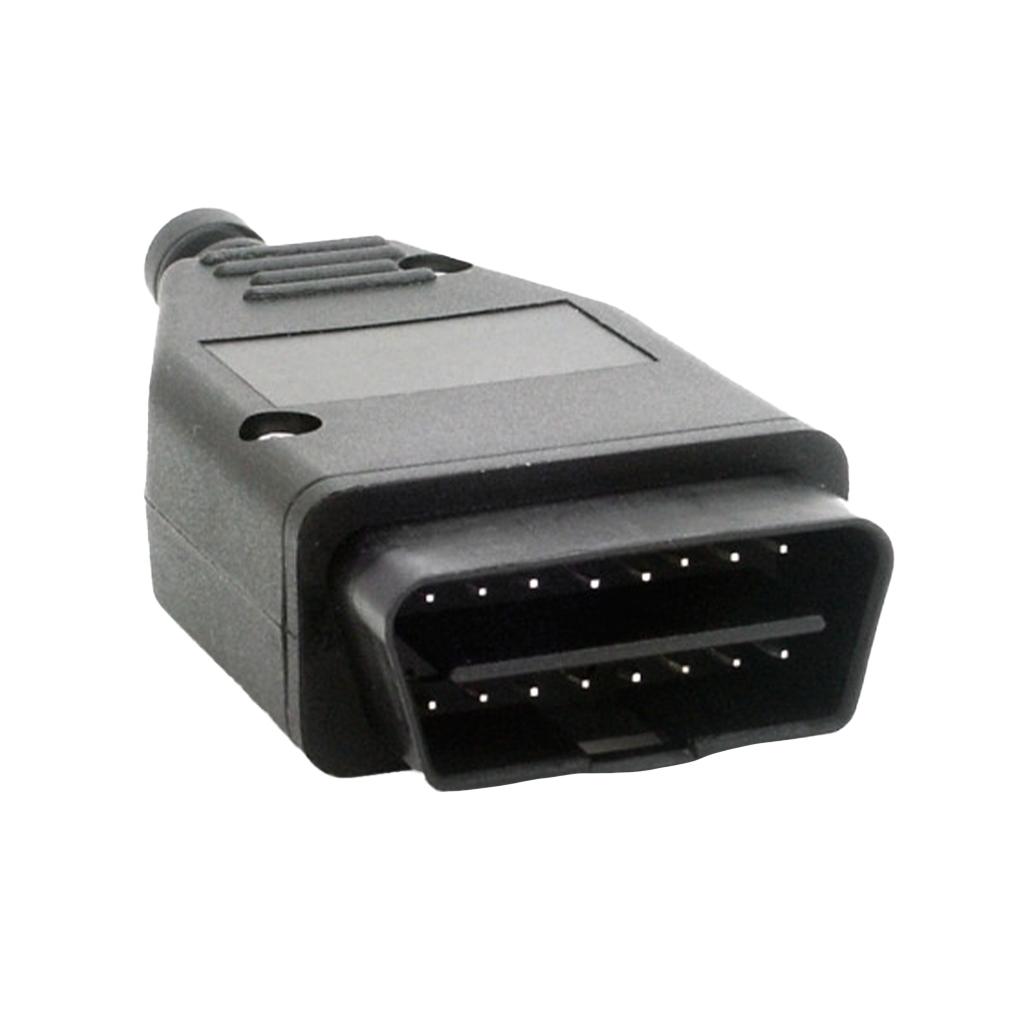

• SAE to OBD2 Connector

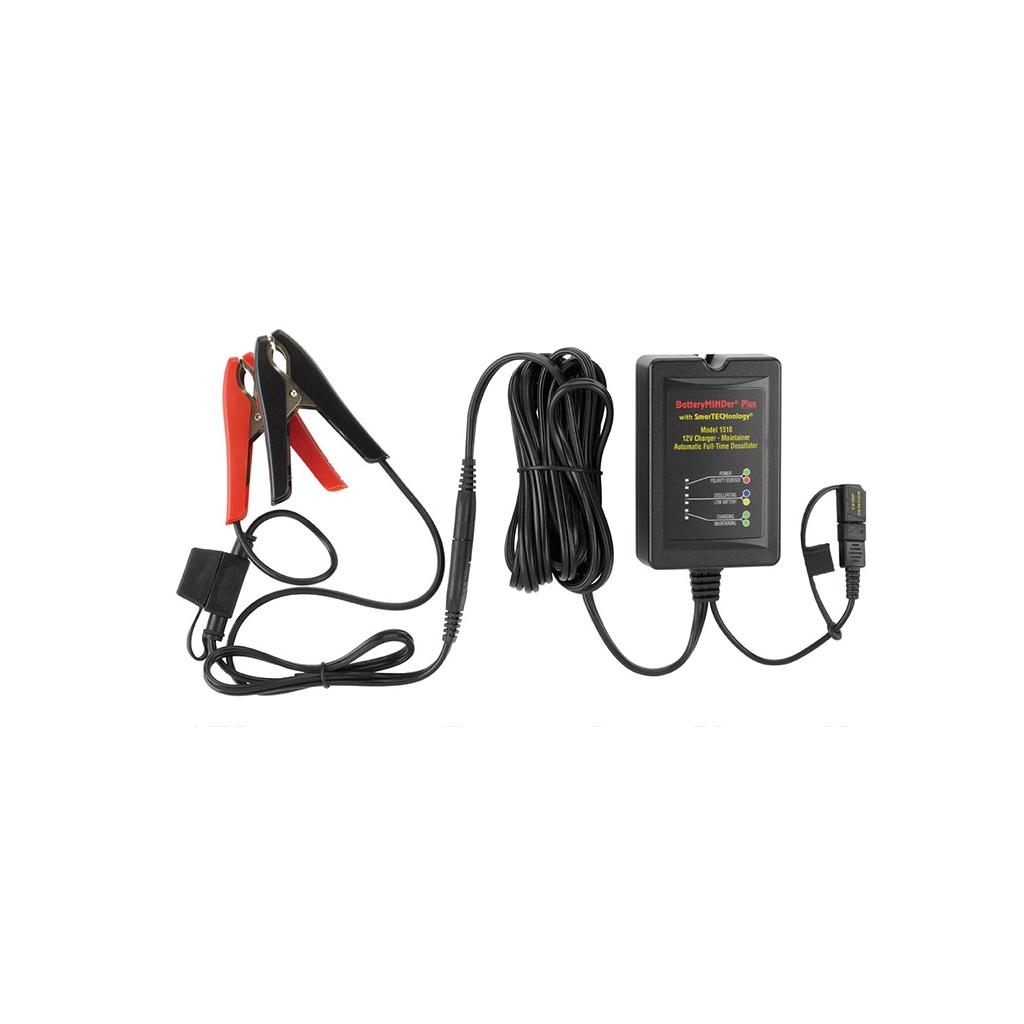

• Battery Clip Cord Set with Quick Connector
• Ambient temperature sensor (installed)
• 12ft. power cord

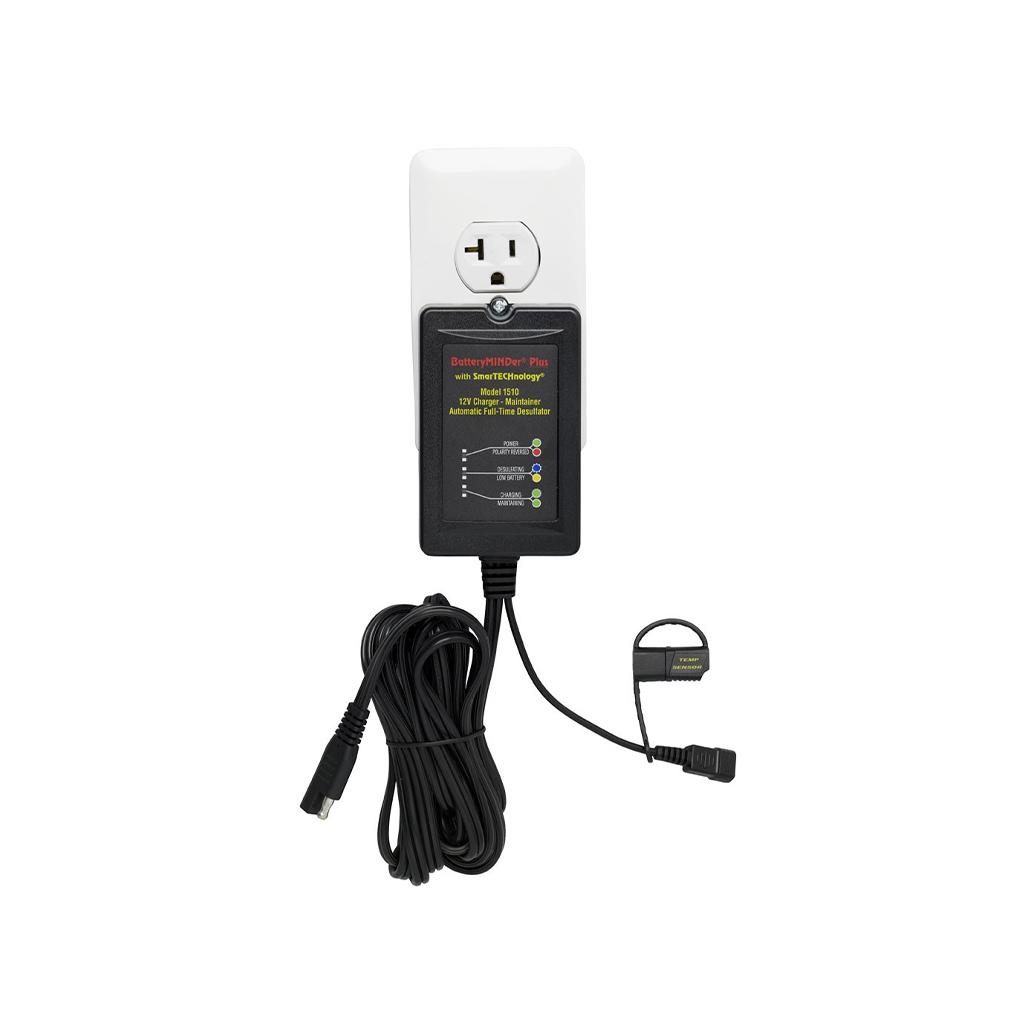

• Optional permanent mounting tab
| General Information | |
|---|---|
| Part # | 1500-OBD2 |
| Manufacturer | BatteryMINDer |
| Shipping Information | |
|---|---|
| Shipping Weight | 1.8 lbs. |
| Shipping Dimensions | 10 x 8 x 6 in. |
| Schedule B | 8504409520 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Charging Current | 1.5 AMP |
| Comes With | SAE to OBD2 Connector, Ambient Temperature Sensor (installed), 12ft. power cord, Battery Clip Cord Set with Quick Connector, Optional Permanent Mounting Tab |
| International Standard | IP60, Dust tight |
| Multiple Batteries (#) | No |
| Optional Accessories | 210AY, 210RT, ABS-248, ATS-1, BC2AY, BCAA, DCE12, DCE25, EZC-01, EZC-RT, RTA-2415, RTA-7215, VPP12 |
| Overcharge Protection | Yes |
| Polarity Reversal Protection | Yes |
| Power Source | 90-240 VAC, 47-63 Hz |
| Product Dimensions | 3.93" L x 2.55" H x 1.18" W |
| Temperature Compensation | Yes: -4°F (-20°C) to 122°F (50°C) |
| Voltage | 12V |
| Warranty | 5 Year |
| Works With | All sizes/types/brands of 12 Volt flooded (filler cap) and sealed maintenance free batteries |
