BatteryMINDer® 2012-OBD2 12V 2A 2000 Series W/OBD2 Connector
Features & Benefits:
• SAE to OBD2 Connector. Enables you to keep your battery maintained via your vehicle’s onboard OBD2 Connector
• Guaranteed to never overcharge, regardless of how long connected.
• Temperature compensation ensures proper charge in hot or cold environments.
• Installed ambient temperature sensor for 0°F–130°F operating range ensures the battery will never be overcharged or undercharged regardless of temperature extremes. Optional "at the battery" sensor is also available for greater accuracy when battery and charger are not in same ambient temperature environment.
• Diagnostic LED indicators for power, polarity reversal, battery weak, load, bad cell, testing, desulfating, temperature compensation, charging stage and charge level.
• Maximizes battery life and capacity, reconditions weak batteries.
• Automatic high frequency (not high voltage) pulse desulfation (U.S. patented.)
• Plug 'n Run operation-no buttons to push.
• FCC certified.
• Microprocessor controlled ensures accurate-precise charging and maintenance during entire lifetime of unit.
• Maintains up to 6 batteries at a time w/OBD Connector (6 or 12 Volt batteries connected in parallel) Requires use of BatteryMINDer® Y-Connectors 210AY (sold separately) or customer supplied 18-Gauge insulated wire2.Extremely efficient, low operating costs.
• Automatic disconnect and resume if AC power is interrupted.
• Short circuit, spark, polarity and thermal runaway protection.
• Built-in Battery Condition Indicator.
• Worldwide 100-240 VAC 50/60 Hz input.
• Never connect two or more batteries together before fully charging each and checking their condition. Failure to fully charge each battery and check their condition can result in a serious safety hazard.
• IMPORTANT INFORMATION ON USING PRODUCT OUTDOORS: Always mount units in vertical position with cord sets exiting downward to ensure weather tight integrity. Unit must be mounted this way to ensure long term trouble-free life including weatherproof integrity. Mounting in any other manner or using unmounted (parallel to ground) except indoors may cause unit to fail due to water intrusion that is unable to drain correctly to avoid damage.

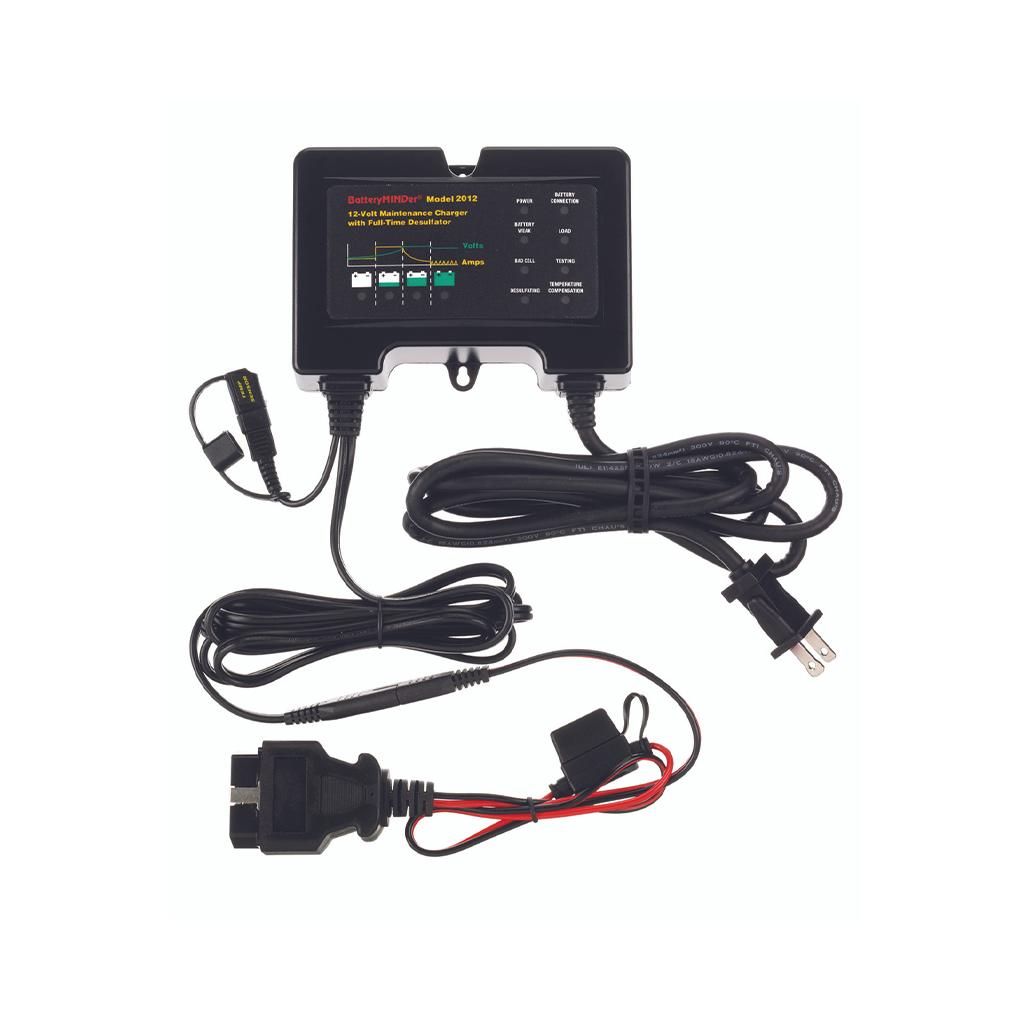

What's In the Box

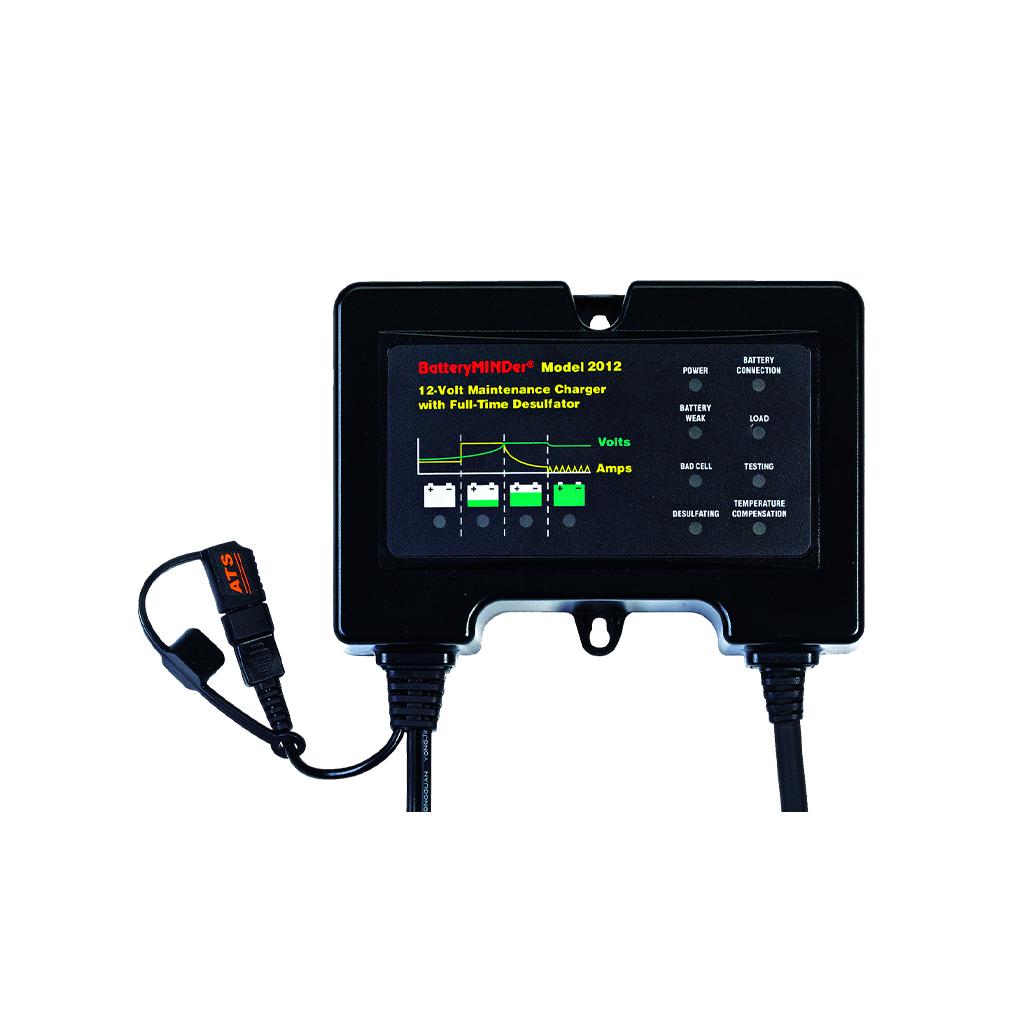

• Model 2012 Charger-Maintainer-Desulfator

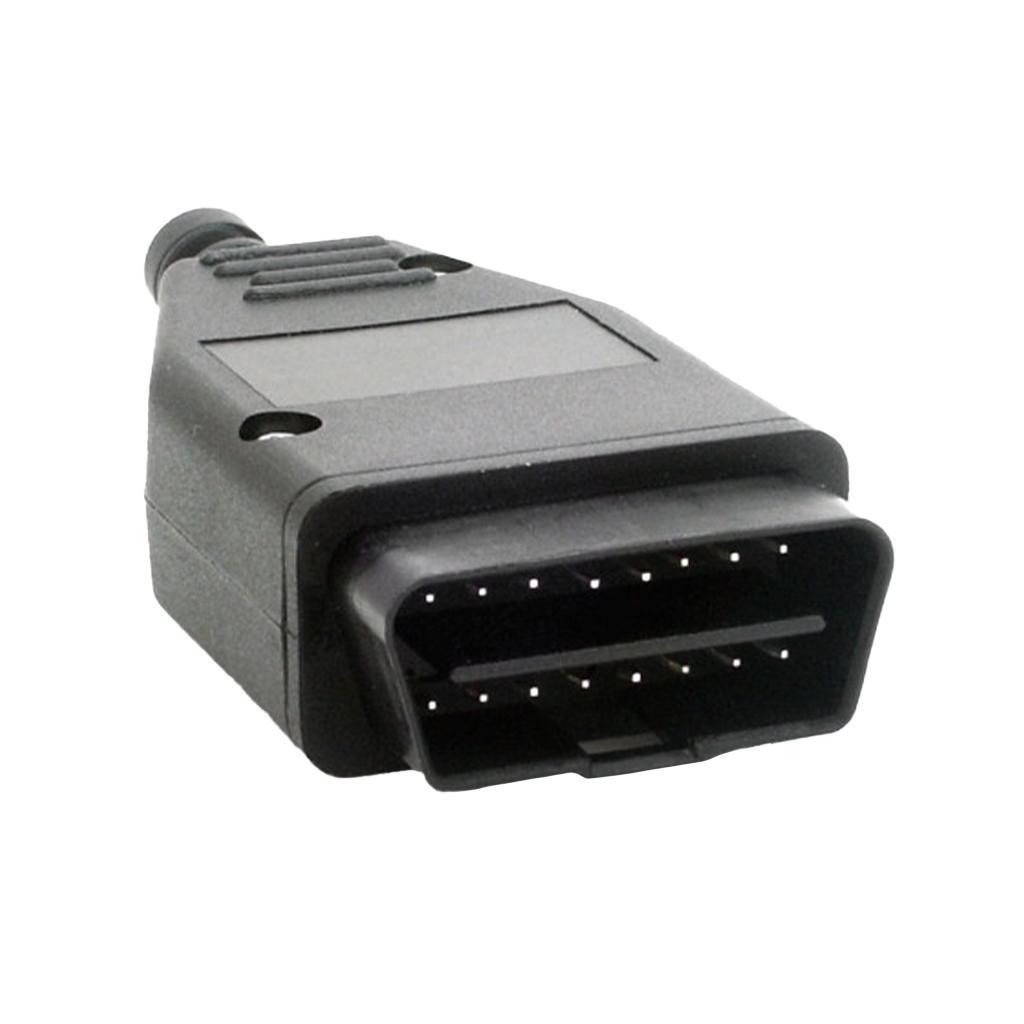

• OBD2 Connector
• Ambient Temperature Sensor (installed)
• Non Fused Battery Clip Cord Set with Quick Connector
• Ring Terminal Cord Set with Quick Connector
• 6’ AC cord, 6’ DC cord with quick connector (SAE)
| General Information | |
|---|---|
| Part # | 2012-OBD2 |
| Manufacturer | BatteryMINDer |
| Shipping Information | |
|---|---|
| Product Weight | 2.9 lbs. |
| Product Dimensions | 5.7 x 4.1 x 2.1 in. |
| Schedule B | 8504409520 |
| ECCN | EAR99 |
| Specifications | |
|---|---|
| Charging Current | 2 AMP |
| Comes With | OBD-2 Connector with Quick Connector, BC-2410: 2' Non Fused Battery Clip Cord Set with Quick Connector, RTA-2415: 2' Fused Ring Terminal Cord Set with Quick Connector, ATS-1: Ambient Temperature Sensor |
| International Standard | IP65, Dust tight |
| Multiple Batteries (#) | 6 w/o OBD2 Connector |
| Optional Accessories | 210AY, 210RT, ABS-248, ATS-1, BC2AY, BCAA, DCE12, DCE25, EZC-01, EZC-RT, RTA-2415, RTA-7215, VPP12 |
| Overcharge Protection | Yes |
| Polarity Reversal Protection | Yes |
| Power Source | 90-240 VAC, 47-63 Hz |
| Product Dimensions | 5.69" L x 4.06" W x 2.13" H |
| Temperature Compensation | Yes: -4°F (-20°C) to 122°F (50°C) |
| Voltage | 12V |
| Warranty | 5 Year |
| Works With | All sizes/types/brands of 12 Volt flooded (filler cap) and sealed maintenance free batteries |
