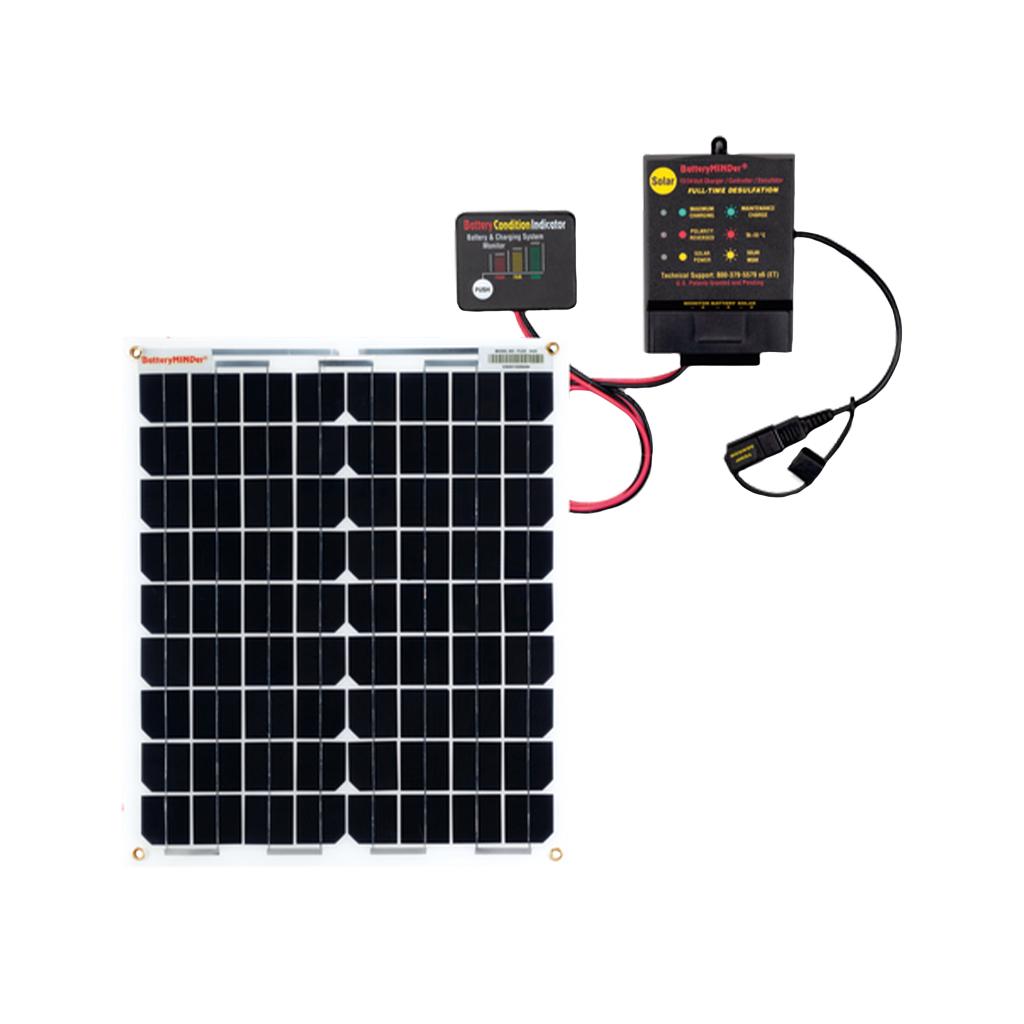

BatteryMINDer® SCC1224-20-AAS3 12V/24V Aviation Solar Charger W/20W Solar Panel, Odyssey Batteries

The battery should be in “good” condition, meaning no shorted cells and a rested voltage of at least 8.5 volts for 12V or 17 volts for 24V systems. Severely damaged or internally shorted batteries cannot be restored by solar maintenance charging. Verifying open-circuit voltage before installation ensures optimal desulfation and maintenance performance.

The 20-watt solar panel must be positioned to maximize sunlight exposure. Insufficient solar input will reduce charging efficiency and may delay float-mode transitions. Proper orientation helps maintain consistent charge levels for stored aircraft.

The SCC1224 controller uses built-in temperature compensation that adjusts charging voltage based on ambient conditions. Mounting the controller near the battery ensures voltage adjustments accurately reflect battery temperature. This protects AGM aviation batteries from overcharging in hot conditions and from undercharging in cold conditions.

No. The controller must not be used with solar panels with a total output exceeding 20 watts. Using a larger panel can damage the controller and void the warranty. The included 20W solar panel is specifically matched for safe operation.

The built-in BCI provides a quick visual assessment of battery condition by pressing the “PUSH” test area. Three LEDs indicate a fully charged battery, while fewer illuminated LEDs signal fair or poor condition. This simplifies battery monitoring without requiring a separate voltmeter.

The testing chart shows that a fully charged 12V battery reads approximately 12.5 to 13.2 volts, while a 24V battery reads 25.0 to 26.4 volts. Lower voltage ranges indicate fair or poor condition and may require additional charging time. Accurate testing should be done after the battery has rested.

When sunlight drops below a usable level, the controller automatically shuts down to prevent battery discharge. Once adequate solar energy returns, the system resumes charging and desulfation. This automatic cycling protects stored aircraft batteries during fluctuating weather.

Yes, two parallel-connected batteries of the same type and capacity can be maintained if they are in good condition. However, the total output is limited by the available solar energy from the 20W panel. Matching battery size and chemistry ensures balanced maintenance charging.

The solar panel should be covered during wiring to prevent electrical shock, and the correct polarity must be observed when connecting leads. The fused positive lead includes a 15-amp ATC blade fuse that must never be bypassed or replaced with a higher rating. Following these steps protects both the charger and the aircraft's electrical system.

The SCC1224 solar controller carries a five-year limited warranty, while the 20W solar panel is covered for two years. Registering the product within 10 days helps ensure warranty support and technical assistance.
