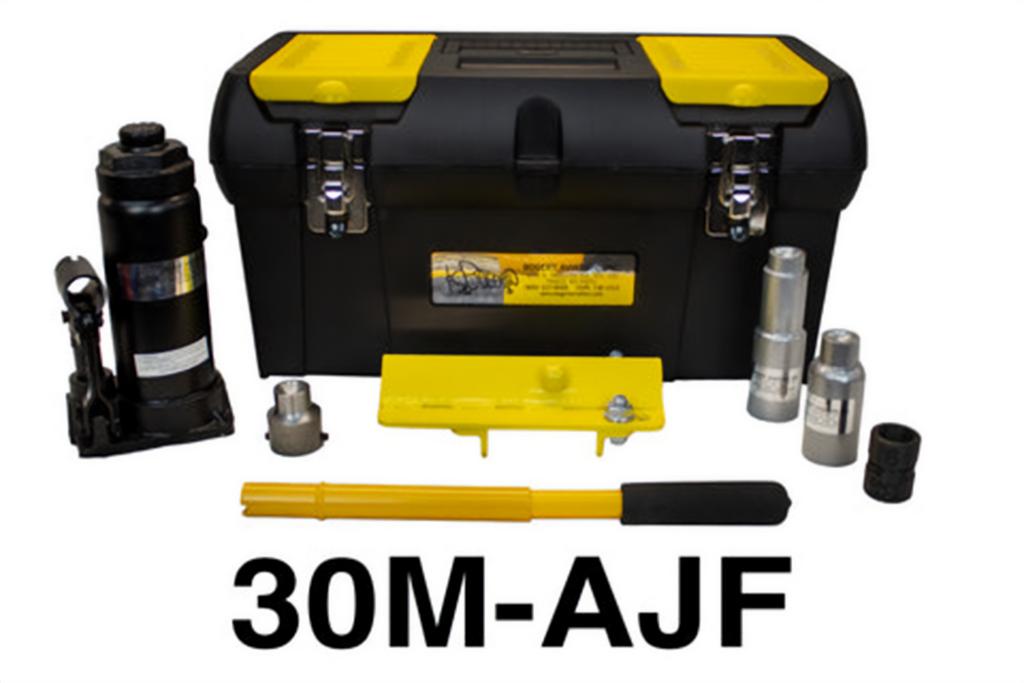

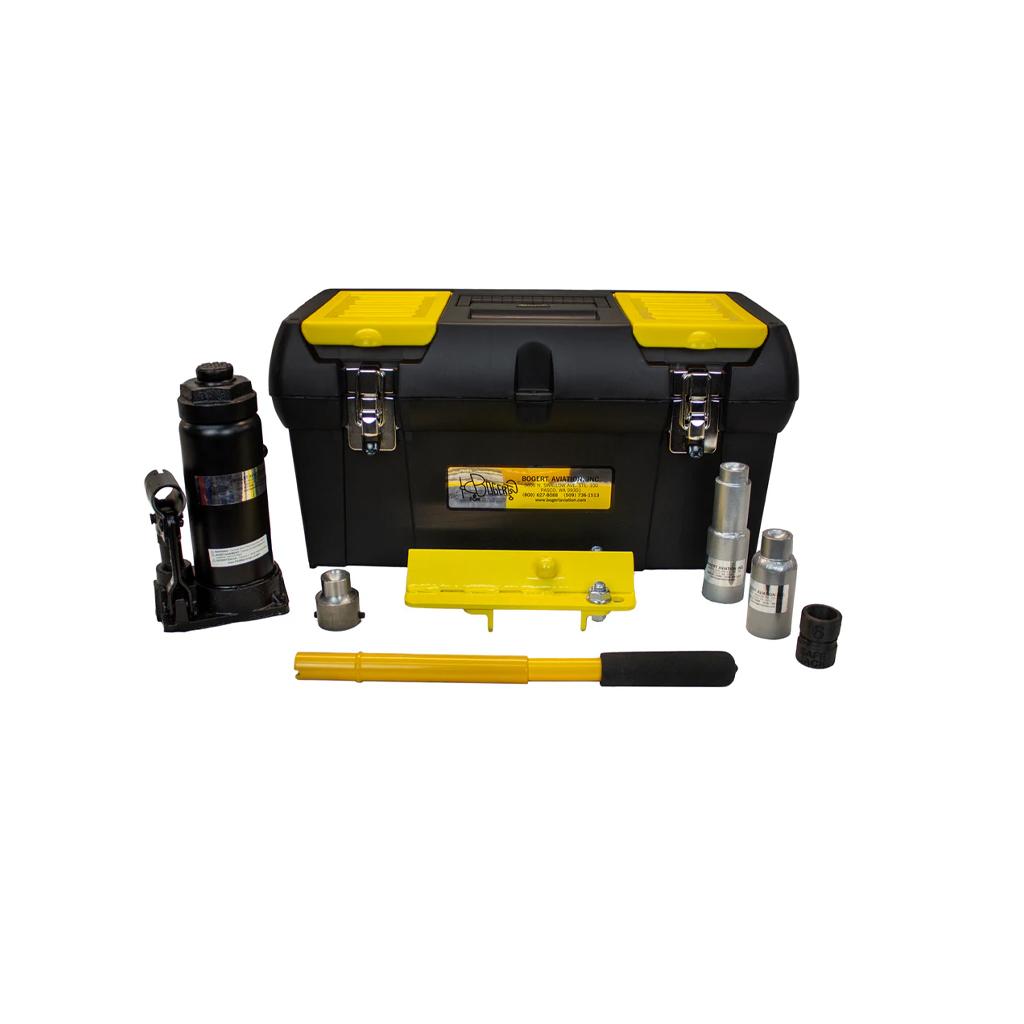

Tronair 30M-AJF – 6-Ton Axle Jack

The Tronair 30M-AJF is a 6-Ton (12,000 lb) hydraulic aircraft axle jack engineered to lift and support one wheel/tire assembly of an aircraft at the axle during maintenance, tire changes, and landing gear servicing. CE-marked for compliance with European aviation safety standards.

Standard Features

• Hand pump with built-in pressure relief valve
• Easy-access filler/breather cap that can be sealed to prevent spills
• Low-profile cylinder designed for minimal axle clearance requirements
• Hydraulic fluid: MIL-PRF-5606
• CE marked
• Durable powder-coat finish (Tronair Blue)

Technical Specifications

• Rated Capacity: 12,000 lbs (5443 kg)
• Operating Temperature: −4°F to 122°F (−20°C to 50°C)
• Pressure Relief Setting: 2,500 + 250/−0 PSIG (172.4 + 17.2/−0 bar)
• Hydraulic Fluid: MIL-PRF-5606
• Jack Pad: ¾" (2 cm) spherical radius cup
• Finish: Durable powder coat (Tronair Blue)

Safety Features

• Safety Lock Valve: Prevents the jack from lowering unintentionally during lifting operations. The jack must be manually released before descending.
• Pressure Relief Valve: Prevents overload during raising operations.
• Filler Cap Seal: Easy-access filler/breather cap can be sealed to prevent hydraulic fluid spills during transport and storage.

Aircraft Applications

The Tronair 30M-AJF is designed for use with a range of commercial, regional, and business aviation aircraft requiring 6-Ton axle jack support. Specific aircraft model compatibility is defined in the Tronair Aircraft Application Guide. Always confirm jacking capacity, adapter requirements, and placement procedures with your aircraft maintenance manual before use.
