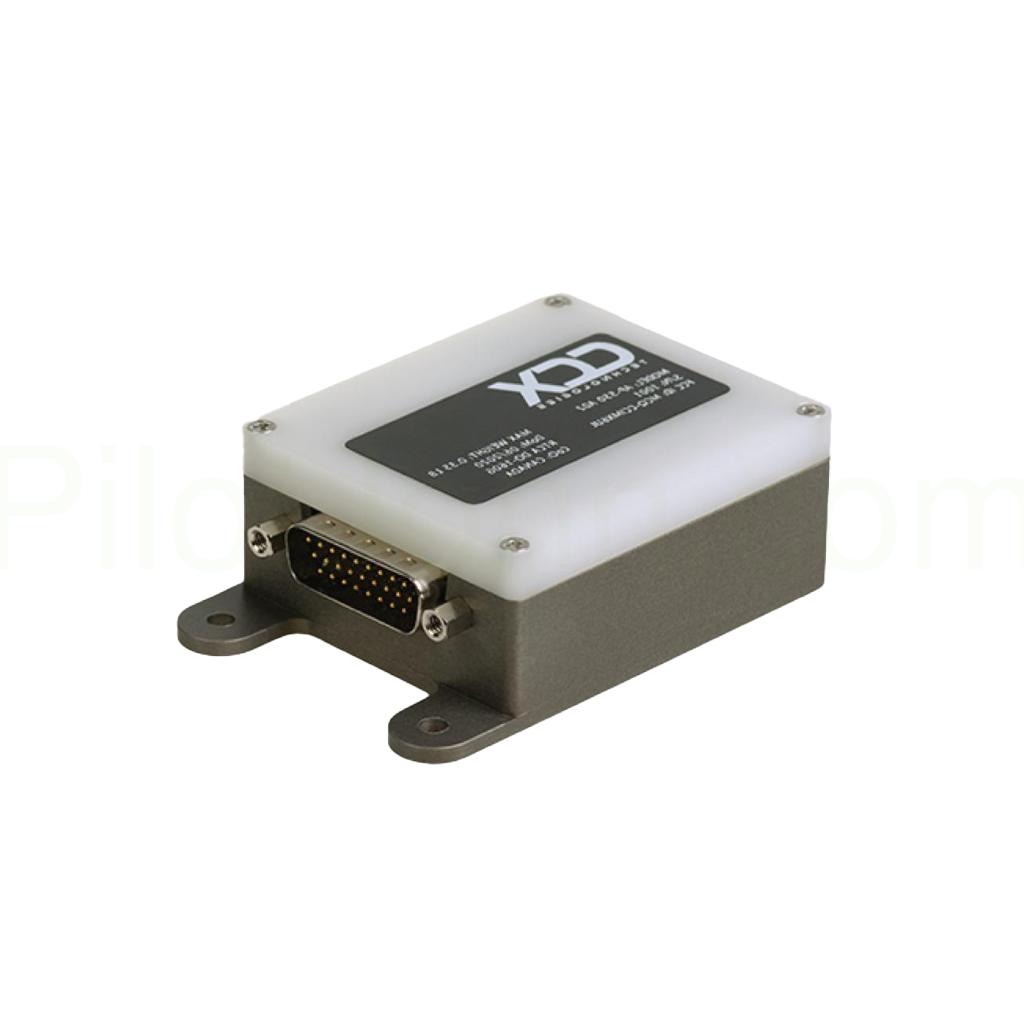

The AP-561 Aircraft Wireless Access Point (Micro-WAP) from CCX Technologies is a small wireless access point that enables devices and equipment onboard an aircraft to engage in data communications over Wi-Fi.

Each Micro-WAP contains a Giga-Bit Ethernet Interface and an 802.11ac WiFi Radio with an integrated antenna. The Micro-WAP will send data using either Ethernet or Wi-Fi to another onboard system with an encrypted link.

The size and weight of the Micro-WAP, alongside the minimal wiring required, facilitates a large number of installation options.

Standard Features

Secure boot and encrypted data-at-rest
Giga-Bit Ethernet Interface
802.11ac Wi-Fi Radio with integrated Antenna
120GB of local storage
A WiFi Disable Discrete Input
1x Programmable Discrete Input
1x Programmable Discrete Output
DO-160 including lightning testing

General Information
Part #	AP-561
Manufacturer	CCX Technologies

Shipping Information
ECCN	5A991.c

Specifications
Advanced Features	DHCP Server, Application Server for third party applications to be added (some limitations may apply), Secure API
ARINC-429	Aingle ARINC-429 Receiver
Discrete GPIO	1 x WiFi Disable Discrete Input, 1 x Programmable Discrete Input, 1 x Programmable Discrete Output
Ethernet	Giga-Bit Ethernet interface
Form Factor	2.46"L x 2.08"W x 1.05"H
Processor	Single-core 64-bit Cortex-A53 ARM processor running at 1GHz
Security	Secure Boot, All data encrypted-at-rest
Storage	120GB of local storage
Weight	<0.35 lbs
WiFi	802.11ac WiFi Radio with integrated antenna
