CCX Technologies IK-200 - Dual-Band Aircraft WiFi Antenna
Available for Order
Lead Time: Chat now or request quote
Don't have an account?
Create yours now for free.
Create yours now for free.
CofC and 8130 available at no cost
Worldwide shipping available
Need a Quote?

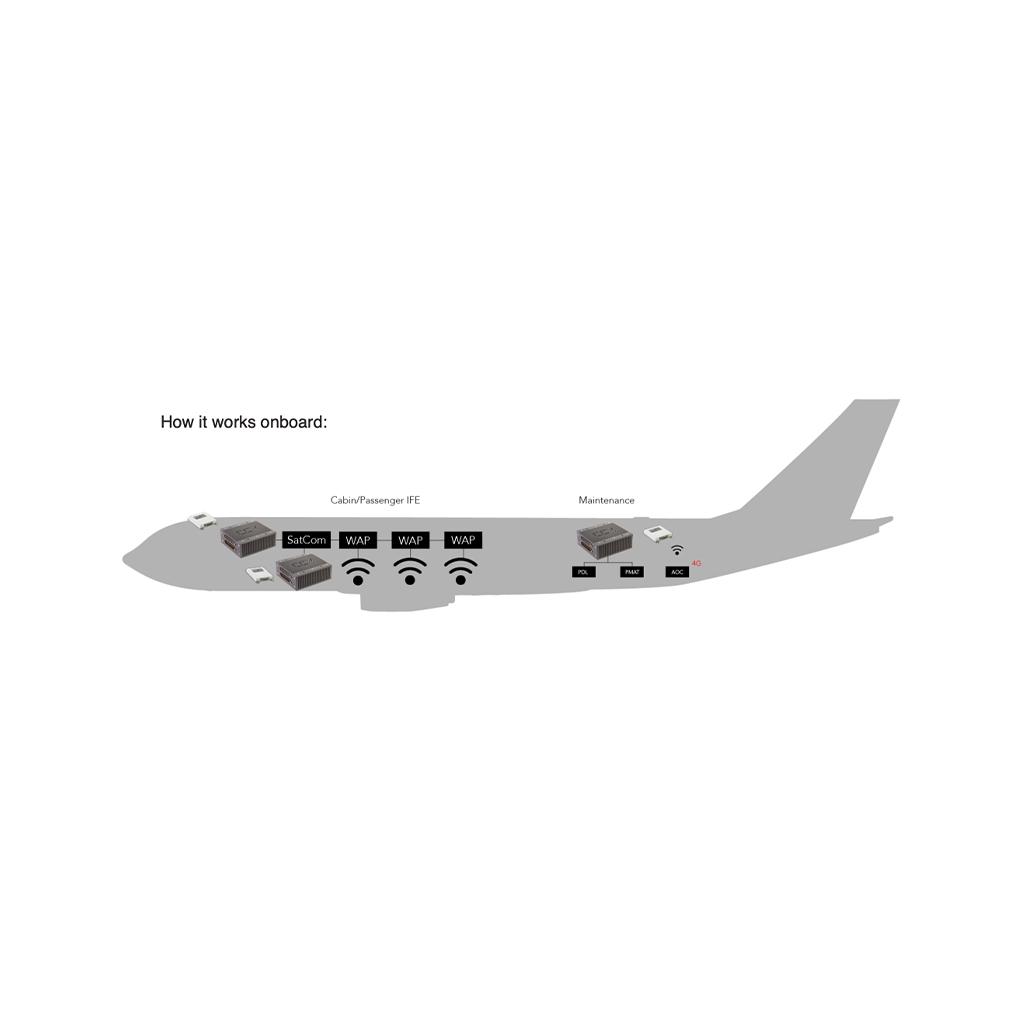

The IK-200 from CCX Technologies is a three-element 3x3 MIMO, dual-band Wi-Fi antenna designed for installation onboard an aircraft. This compact, directional antenna connects directly to the router/server and utilizes the IEEE 802.11 ac Wi-Fi standard to deliver enhanced signal strength to passengers and equipment onboard an aircraft. Connect up to two IK-200 Wi-Fi Antennas to any SystemX Appliance (AP-250/AP-251).
Features
- Supports the 2.4 GHz and 5 GHz Wi-Fi bands
- Utilizes the IEEE 802.11 ac Wi-Fi standard
- Size, Weight, and Power (SWaP) optimized
- Easy to install with D-Sub coax inserts
- Radiating pattern designed for use in an aircraft cabin
- RTCA DO-160G certified
Designed and Certified for
- Business aviation
- Military / government aircraft
- VVIP & special mission aircraft
- Commercial aviation
| General Information | |
|---|---|
| Part # | IK-200 |
| Manufacturer | CCX Technologies |
| Shipping Information | |
|---|---|
| Schedule B | 8517710000 |
| ECCN | 5A991.c |
| Specifications | |
|---|---|
| Connectors | Female MIL-DTL-24308G 3W coaxial keyed D-sub |
| Dimensions | 4.37"L x 3.20"W x 0.62"H |
| Environment Qualifications | RTCA DO-160G |
| Mounting Information | Four (4) mounting holes, use #6 bolts or screws |
| Operating Bands | Wi-Fi 2.4 GHz, 5 GHz |
| Weight | 0.3 lbs |
Customers also viewed
– Wi-Fi, 3 Outputs
All-in-One Avionics Radio and Pulse Tester
GPS Signal Generator
Secure Wireless Access Point
GPS Antenna Coupler
AIRCRAFT COMPATIBILITY
This item is for use on all aircraft.
PRODUCT REVIEWS
This item does not have any reviews yet.
QUESTIONS & ANSWERS
Question:
Is this antenna only compatible with a CCX router?
Answer:
No, this CCX antenna is compatible with any wireless system! This dual-band Wi-Fi antenna is designed to increase the efficiency of your aircraft's current onboard connection by establishing a safer and more secure access point.
Asked July 18, 2024
