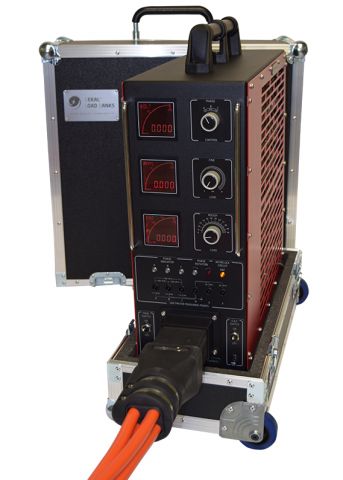

120 kVA AC Load Bank - Digital - Dekal ALB-120DP

The Future is Here for Load Banks - Dekal Load Banks

Your new load bank starts here with us. View the complete line of digital LCD gauges 400 HZ load banks.

Advantages of 400 HZ Digital LCD Dekal Load Banks

• Simple operation suitable for non-trained operators
• Silent operations <70 dB(A) at the distance of 7m / 23Ft
• Suitable for workshop and/or airside operation
• Environmental operating temperature from -20 C to 55 C / -4 F to 122 F
• Transport casing with pull up handle as standard for each load bank
• Triple thermal protection - extremely resistant to high temperature
• Cant protection - load bank works only in horizontal position
• Phase detection - load bank works only if all ABC phases are available
• Phase rotation indicator - phase sequence of three-phase voltages
• Fine regulation as standard for all AC - 400 Hz load banks
• Aluminum housing and non-corrosive parts
• High component quality control by manufacturer
• High reliability - effective standardization process
• Cable pin jacks - unique user friendly safety feature for external voltage test
• Spare parts availability and accurate on-time deliveries
• Short worldwide delivery period with tracking feature
• 2 years full warranty with extension option for all DEKAL load banks CE certification - health, safety, and environmental protection standards
• Standards & requirements according to ISO 6858, DFS 400, ARP 5015
• Classification CE marking, DIN, VDE, IEC, IP 21 protection rate level

ALB-120DP - 120 kVA Digital LCD Gauges

• Voltage * Frequency: 115/200V AC +/- 10% * 400 HZ +/- 10%
• Load / Lower (kW / kVA cos=1): 0-120 kW +/- 5%
• Fine Adjustment - Potentiometer: 0 to 8 kW
• Rate Switch Regular Load Steps +/- 5%: 8-16 kW, 16-24 kW, 24-32 kW, 32-40 kW, 40-48 kW, 48-56 kW, 56-64 kW, 64-72 kW, 72-80 kW, 80-88 kW, 88-96 kW, 96-104 kW, 104-112 kW, 112-120 kW
• Force Air Cooling: 88.20 m3/min - 3120 CFM
• Load Bank Size: 600x230x630 mm - 33 kg / 23.6x9.05x24.8 - 73 lbs
• Transport Casing: 710x290x860 mm - 19 kg / 27.9x11.4x33.9 - 42 lbs
• Load Bank Painting / Transport Casing: Powder Coating Fine Structure 71319 IGP - Swiss Quality / High Grade Aluminum

Standard Specs on All Units

• Digital Volt Meter: Voltmeter 1% Accuracy, Wide Viewing Angle, Background Color Options - Green, Red, White
• Digital Amp Peter: Ammeter 1% Accuracy, Wide Viewing Angle, Background Color Options - Green, Red, White
• Digital Frequency Meter: Frequency Meter 0.1% Accuracy, Wide Viewing Angle, Background Color Options - Green, Red, White
• Light Indication: Phase Indication, Phase Rotation, Interlock Circuit
• GPU Testing Procedure: Proposal Procedure: Load Raising from 0-100% 30 Seconds; Hold at 100% 5 minutes, Load Decrease from 100%-0 10 Minutes.
• Engine Decarbonising: Proposal Procedure
: Load Raising from 0-100% 30 Seconds; Hold at 100% 45 minutes, Load Decrease from 100%-0 15 Minutes.
